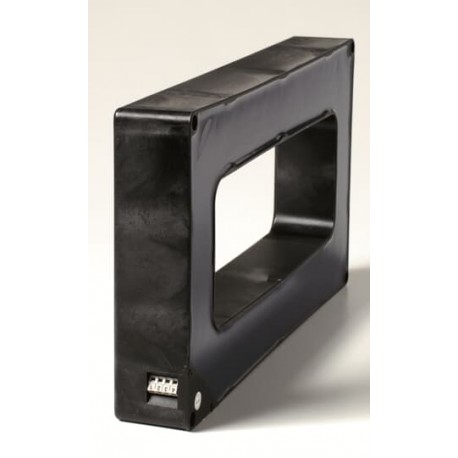

ABB 1SDA073741R1 1SDA073741R1 ABB Toroide RC E1.2, E2.2 3p View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA073741R1 ABB Toroide RC E1.2, E2.2 3p

1SDA073741R1

073741

ABB

1 Pcs.

Toroide RC E1.2, E2.2 3p TOROIDAL TRAFO RC-E1.2-E2.2 3P Toroid RC E1.2 3p/4p E2.2 3p-XT7/M 3p/4p

Automation > Accessories/spare parts for low-voltage switch technology
Accessories E1.2

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This ABB 1SDA073741R1 toroid current transformer functions as a residual current sensing device for low-voltage circuit protection schemes. Earth leakage toroids surround phase and neutral conductors to monitor differential current flows, signaling connected electronic trip units to interrupt power during ground fault conditions.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK108467A6707
  • Order Code US and Canada: ZE12RCT1
  • EAN: 8015644776749
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Product Net Width: 210 mm
  • Product Net Height: 54 mm
  • Product Net Depth / Length: 400 mm
  • Product Net Weight: 10 kg
  • Package Level 1 Units: box 1 piece
  • Package Level 1 Width: 370 mm

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaZE12RCT1
EAN8015644776749
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Dimensions
Product Net Width210 mm
Product Net Height54 mm
Product Net Depth / Length400 mm
Product Net Weight10 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width370 mm
Package Level 1 Height85 mm
Package Level 1 Depth / Length520 mm
Package Level 1 Gross Weight10.5 kg
Package Level 1 EAN8015644776749
Additional Information
Product Main TypeAccessories for Emax 2, Accessories for Tmax XT
Product NameAccessory
Product TypeAccessory
Suitable ForXT7-XT7M, E1.2, E2.2
Suitable for Product ClassSACE Tmax XT, SACE Emax 2
Technical
Configuration TypeLoose or configurable
Order Multiple1 piece
StandardsIEC
Certificates and Declarations
Data Sheet, Technical Information1SDC200023D0209
1SDC210100D0204
Declaration of Conformity - CE9AKK106713A5546
Instructions and Manuals1SDH001000R0521
External Classifications and Standards
ETIM 9EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 10EC002498 - Accessories/spare parts for low-voltage switch technology
IDEA Granular Category Code (IGCC)4189 >> Torroidal Current Transformers
Object Classification CodeQ
UNSPSC39121032
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27371392
