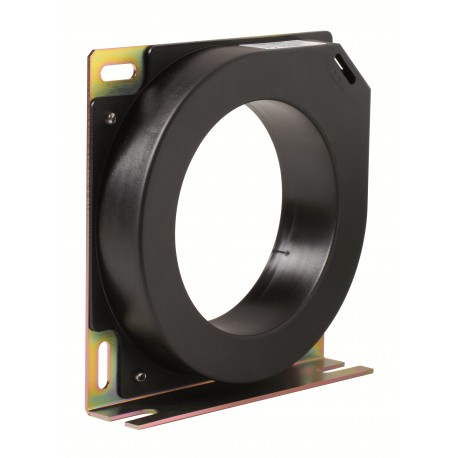

ABB 1SDA059145R1 1SDA059145R1 ABB TOROID TRANSFOR. x PR122/123 E1-6 new-T8 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA059145R1 ABB TOROID TRANSFOR. x PR122/123 E1-6 new-T8

1SDA059145R1

059145

ABB

1 Pcs.

TOROID TRANSFOR. x PR122/123 E1-6 new-T8 TRAFO TOROIDAL HOMOPOLAR

Automation > Accessories/spare parts for low-voltage switch technology
Emax accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This ABB 1SDA059145R1 toroid transformer operates alongside electronic trip units to monitor current and provide precise earth-fault protection in heavy-duty switchgear. Current transformers measure primary electrical currents safely, delivering accurate feedback to protective relays in industrial power networks.

Please note that precise pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Conflict Minerals Reporting Template (CMRT): Document availability on demand
  • EAN: 8015644615017
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Product Net Weight: 1 kg
  • Package Level 1 Units: 1 piece
  • Package Level 1 Gross Weight: 1.4 kg
  • Package Level 1 EAN: 8015644615017
  • Product Main Type: Accessories for Tmax T
  • Product Name: Accessory
  • Product Type: ACC
  • Suitable For: E1, E2, E3, E4, E6, T8
  • Suitable for Product Class: SACE Emax

More info

▲
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)Document availability on demand
Ordering
EAN8015644615017
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Dimensions
Product Net Weight1 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Gross Weight1.4 kg
Package Level 1 EAN8015644615017
Additional Information
Product Main TypeAccessories for Tmax T
Product NameAccessory
Product TypeACC
Suitable ForE1, E2, E3, E4, E6, T8
Suitable for Product ClassSACE Emax
SACE Tmax T
Technical
Configuration TypeLoose or configurable
StandardsIEC
Certificates and Declarations
Data Sheet, Technical Information1SDC200006D0207
Declaration of Conformity - CE1SDL000165R0001
Instructions and Manuals1SDC210033D0202
External Classifications and Standards
Object Classification CodeQ
UNSPSC39120000
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
