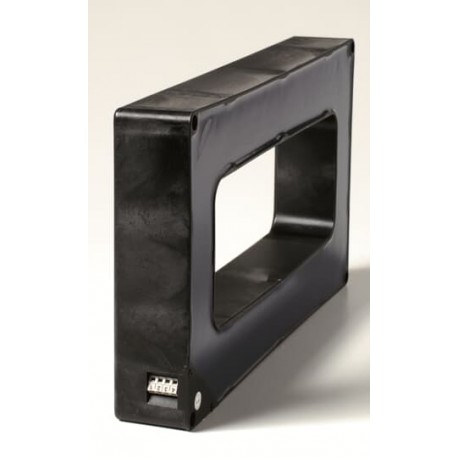

ABB 1SDA073742R1 1SDA073742R1 ABB Toroid RC E2.2 4p, E4.2 3p View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA073742R1 ABB Toroid RC E2.2 4p, E4.2 3p

1SDA073742R1

073742

ABB

1 Pcs.

Toroid RC E2.2 4p, E4.2 3p TOROIDAL TRAFO RC-E2.2 4P-E4.2

Automation > Accessories/spare parts for low-voltage switch technology
Accessories E1.2

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 1SDA073742R1 ABB Toroid RC E2.2 4p, E4.2 3p functions as a residual current sensing accessory designed for compatible circuit breaker frames to monitor earth leakage currents in electrical distribution networks. These sensing toroids help provide comprehensive protection by detecting ground faults and tripping connected switching devices to prevent electrical hazards. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK108467A6707
  • Order Code US and Canada: ZE24RCT2
  • EAN: 8015644776756
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Product Net Width: 245 mm
  • Product Net Height: 54 mm
  • Product Net Depth / Length: 500 mm
  • Product Net Weight: 15 kg
  • Package Level 1 Units: box 1 piece
  • Package Level 1 Width: 240 mm

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaZE24RCT2
EAN8015644776756
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Dimensions
Product Net Width245 mm
Product Net Height54 mm
Product Net Depth / Length500 mm
Product Net Weight15 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width240 mm
Package Level 1 Height85 mm
Package Level 1 Depth / Length600 mm
Package Level 1 Gross Weight15.5 kg
Package Level 1 EAN8015644776756
Additional Information
Product Main TypeAccessories for Emax 2
Product NameAccessory
Product TypeAccessory
Suitable ForE2.2, E4.2
Suitable for Product ClassSACE Emax 2
Technical
Configuration TypeLoose or configurable
StandardsIEC
Certificates and Declarations
Data Sheet, Technical Information1SDC200023D0209
Declaration of Conformity - CE9AKK106713A5902
9AKK106713A5544
Instructions and Manuals1SDH001000R0521
External Classifications and Standards
ETIM 9EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 10EC002498 - Accessories/spare parts for low-voltage switch technology
IDEA Granular Category Code (IGCC)4189 >> Torroidal Current Transformers
Object Classification CodeQ
UNSPSC39121032
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27371392
