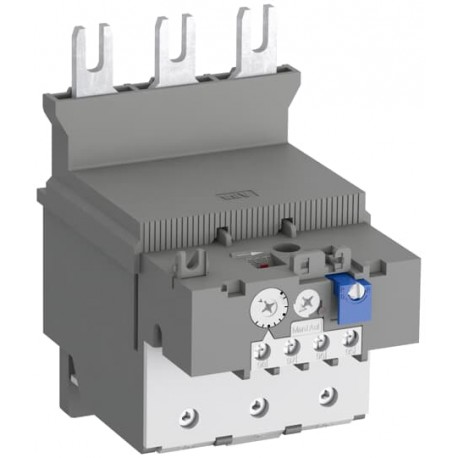

ABB 1SAZ431201R1004 1SAZ431201R1004 ABB TF140DU-142 Thermal Overload Relay View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SAZ431201R1004 ABB TF140DU-142 Thermal Overload Relay

1SAZ431201R1004

431201

ABB

1 Pcs.

TF140DU-142 Thermal Overload Relay TF140DU-142 RELAY TERM. OVERCAR.110-142A TF140DU-142 Thermal Overload Relay 110 ... 142 A

Automation > Thermal overload relay
Thermal Relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A thermal overload relay functions as a critical protective component in electrical motor circuits, interrupting power when prolonged current overloads occur to prevent motor winding damage. This ABB TF140DU-142 Thermal Overload Relay integrates directly into industrial starter assemblies to monitor operational currents.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85364900
  • Data Sheet, Technical Information: 2CDC106061D0201
  • Instructions and Manuals: 2CDC106050M6802
  • Instructions and Manuals (Part 2): 1SAC200017M0002
  • Time-Current Characteristic Curve: 1SAZ400503F0004
  • CAD Dimensional Drawing: 2CDC001079B0201
  • Dimension Diagram: 1SAZ400404F0001
  • Product Net Width: 89 mm
  • Product Net Height: 140 mm
  • Product Net Depth / Length: 126 mm
  • Product Net Weight: 0.82 kg
  • Setting Range: 110 ... 142 A
  • Rated Operational Voltage: Auxiliary Circuit 440 V DC
  • Rated Operational Current (I e ): 142 A
  • Rated Frequency (f): Auxiliary Circuit 50 Hz

More info

▲
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85364900
Popular Downloads
Data Sheet, Technical Information2CDC106061D0201
Instructions and Manuals2CDC106050M6802
Instructions and Manuals (Part 2)1SAC200017M0002
Time-Current Characteristic Curve1SAZ400503F0004
CAD Dimensional Drawing2CDC001079B0201
Dimension Diagram1SAZ400404F0001
Dimensions
Product Net Width89 mm
Product Net Height140 mm
Product Net Depth / Length126 mm
Product Net Weight0.82 kg
Technical
Setting Range110 ... 142 A
Rated Operational VoltageAuxiliary Circuit 440 V DC
Auxiliary Circuit 500 V AC
Main Circuit 690 V AC
Main Circuit 440 V DC
Rated Operational Current (Ie)142 A
Rated Frequency (f)Auxiliary Circuit 50 Hz
Auxiliary Circuit 60 Hz
Auxiliary Circuit DC
Main Circuit 60 Hz
Main Circuit 50 Hz
Main Circuit DC
Rated Impulse Withstand Voltage (Uimp)Auxiliary Circuit 6 kV
Main Circuit 8 kV
Rated Insulation Voltage (Ui)690 V
Number of Poles3
Number of Auxiliary Contacts NC1
Number of Auxiliary Contacts NO1
Number of Protected Poles3
Conventional Free-air Thermal Current (Ith)Auxiliary Circuit NC 10 A
Auxiliary Circuit NO 6 A
Rated Operational Current AC-15 (Ie)(120 V) NC 3 A
(120 V) NO 1.5 A
(240 V) NC 3 A
(240 V) NO 1.2 A
(400 V) NC 0.75 A
(400 V) NO 0.37 A
(440 V) NC 0.75 A
(440 V) NO 0.37 A
(500 V) NC 0.3 A
(500 V) NO 0.25 A
Rated Operational Current DC-13 (Ie)(125 V) NC 0.25 A
(125 V) NO 0.25 A
(24 V) NC 1.25 A
(24 V) NO 1.25 A
(250 V) NC 0.12 A
(250 V) NO 0.04 A
(60 V) NC 0.25 A
(60 V) NO 0.25 A
Degree of ProtectionIP20
Housing IP20
Main Circuit Terminals IP10
Pollution Degree3
Connecting Capacity Auxiliary CircuitFlexible with Ferrule 1/2x 0.75 ... 2.5 mm²
Flexible 1/2x 0.75 ... 2.5 mm²
Rigid 1/2x 0.75 ... 4 mm²
Connecting Capacity Main CircuitFlexible with Ferrule 1/2x 16 ... 70 mm²
Flexible with Insulated Ferrule 1/2x 16 ... 70 mm²
Flexible 1/2x 16 ... 70 mm²
Rigid 1/2x 16 ... 70 mm²
Tightening TorqueAuxiliary Circuit 0.8 ... 1.2 N·m
Main Circuit 8 ... 10 N·m
Wire Stripping LengthAuxiliary Circuit 9 mm
Main Circuit 25 mm
Recommended Screw DriverAuxiliary Circuit Pozidriv 2
Main Circuit Hexagon 4
Mounting Positionany
Power Lossat Rated Operating Conditions per Pole 2.3 W
Suitable ForAF116
AF140
StandardsIEC/EN 60947-1
IEC/EN 60947-4-1
IEC/EN 60947-5-1
UL 60947-1
UL 60947-4-1
Technical UL/CSA
Maximum Operating Voltage UL/CSAMain Circuit 600 V AC
Contact Rating UL/CSA(NC:) B600
(NO:) C300
Connecting Capacity Main Circuit UL/CSAFlexible 1/2x 6-2/0 AWG
Stranded 1/2x 6-2/0 AWG
Connecting Capacity Auxiliary Circuit UL/CSAFlexible 1/2x 18-14 AWG
Stranded 1/2x 18-14 AWG
Tightening Torque UL/CSAAuxiliary Circuit 12 in·lb
Environmental
Ambient Air TemperatureOperation -25 ... +55 °C
Operation Compensated -25 ... +55 °C
Storage -40 ... +70 °C
Ambient Air Temperature CompensationYes
Maximum Operating Altitude Permissible2000 m
Resistance to Shock acc. to IEC 60068-2-2711 ms Pulse 12g
25g 2 shocks 13 ms
Resistance to Vibrations20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz
RoHS StatusFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA2CMT2023-006525
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
RoHS Information1SAD938507-0185
RoHS StatusFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA2CMT2023-006525
WEEE B2C / B2BBusiness To Business
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
Circular Value
End of Life Instructions1SAC200334H0001
Eco Transparency
Environmental Product Declaration - EPD1SAC200274H0001
Environmental Information1SAC200090H0009
Certificates and Declarations
ABS Certificate1SAA941004-0101
BV Certificate1SAA941003-0201
CB Certificate1SAA941012-2001
CQC CertificateCQC2016010309922935
Declaration of Conformity - CCC2020980304001320
Declaration of Conformity - CE1SAD101100-3507
Declaration of Conformity - UKCA1SAD201100-3507
DNV GL Certificate1SAA941004-0301
EAC Certificate1SAA941002-2702
LR Certificate1SAA941004-0501
RINA CertificateRINA_ELE098115XG
RMRS Certificate1SAA941002-0701
UL CertificateE48139-20120831
Container Information
Package Level 1 Unitscarton 1 piece
Package Level 1 Width165 mm
Package Level 1 Height133 mm
Package Level 1 Depth / Length151 mm
Package Level 1 Gross Weight0.945 kg
Package Level 1 EAN4013614446849
Package Level 2 Units4 piece
Package Level 2 Width280 mm
Package Level 2 Height210 mm
Package Level 2 Depth / Length395 mm
Package Level 2 Gross Weight8.786 kg
Package Level 2 EAN4013614494383
Classifications
Object Classification CodeF
ETIM 4EC000106 - Thermal overload relay
ETIM 5EC000106 - Thermal overload relay
ETIM 6EC000106 - Thermal overload relay
ETIM 7EC000106 - Thermal overload relay
ETIM 8EC000106 - Thermal overload relay
eClassV11.0 : 27371501
UNSPSC39122330
IDEA Granular Category Code (IGCC)5366 >> Thermal overload relay
E-Number (Finland)3706579
E-Number (Sweden)3210244
