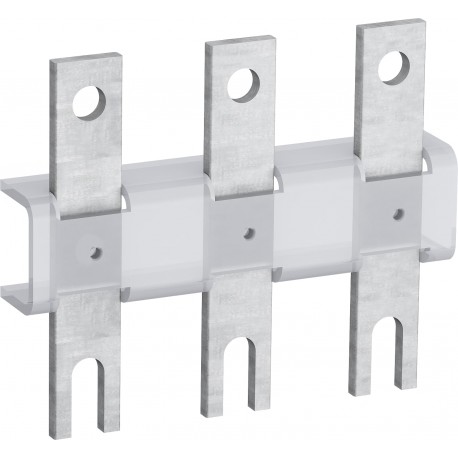

ABB 1SFN075710R1000 1SFN075710R1000 ABB Terminal Extension View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SFN075710R1000 ABB Terminal Extension

1SFN075710R1000

075710

ABB

1 Pcs.

Terminal Extension LX460 TERMINAL EXTENSION AF400-AF460 LX460 Terminal Extension

Automation > Accessories/spare parts for low-voltage switch technology
"A" SECRLP

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A terminal extension component such as the Abb 1SFN075710R1000 is engineered to lengthen contact surfaces on heavy-duty electrical contactors, facilitating the attachment of oversized power cables. These extensions are widely utilized in high-current industrial motor control panels to ensure proper mechanical clearance and secure busbar or lug connections.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Data Sheet, Technical Information: 1SBC100214C0202
  • Instructions and Manuals: 1SFC380032-89
  • CAD Dimensional Drawing: 2CDC001079B0201
  • Product Net Width: 165 mm
  • Product Net Depth / Length: 17 mm
  • Product Net Height: 125 mm
  • Product Net Weight: 0.5 kg
  • Terminal Type: Screw Terminals
  • Suitable For: AF400
  • Suitable for Product Class: Block Contactors
  • Product Name: Terminal Extension
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • REACH Declaration: 2CMT2021-006202
  • RoHS Declaration: 2CMT2021-006277

More info

▲
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Popular Downloads
Data Sheet, Technical Information1SBC100214C0202
Instructions and Manuals1SFC380032-89
CAD Dimensional Drawing2CDC001079B0201
Dimensions
Product Net Width165 mm
Product Net Depth / Length17 mm
Product Net Height125 mm
Product Net Weight0.5 kg
Technical
Terminal TypeScrew Terminals
Suitable ForAF400
AF460
Suitable for Product ClassBlock Contactors
Product NameTerminal Extension
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration2CMT2021-006202
RoHS Declaration2CMT2021-006277
WEEE B2C / B2BBusiness To Business
WEEE CategoryProduct Not in WEEE Scope
Certificates and Declarations
cUL Certificate20120925-E36588
Declaration of Conformity - CE2CMT005309
Declaration of Conformity - UKCA2CMT2020-006120
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width130 mm
Package Level 1 Depth / Length50.5 mm
Package Level 1 Height186 mm
Package Level 1 Gross Weight0.6 kg
Package Level 1 EAN7320500222348
External Classifications and Standards
Object Classification CodeX
ETIM 7EC002498 - Accessories for low-voltage switch technology
ETIM 8EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9EC002498 - Accessories/spare parts for low-voltage switch technology
UNSPSC39122221
IDEA Granular Category Code (IGCC)5219 >> Switch part or accessory
E-Number (Finland)3709286
E-Number (Norway)4115500
E-Number (Sweden)3228919
