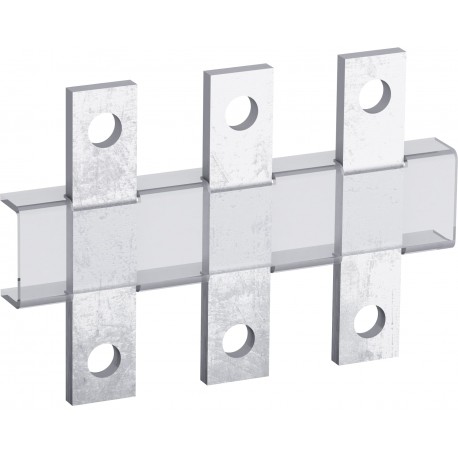

ABB 1SFN075110R1000 1SFN075110R1000 ABB TERMINAL EXTENS LX300 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SFN075110R1000 ABB TERMINAL EXTENS LX300

1SFN075110R1000

075110

ABB

1 Pcs.

TERMINAL EXTENS#LX300 LX300 EXTENSION TERMINALS FOR A210 LX300 Terminal Extension

Automation > Accessories/spare parts for low-voltage switch technology
"A" SECRLP

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A terminal extension adapts contactor termination points to accommodate wider busbars or larger cable lugs in heavy-duty motor control centers. It is routinely installed on industrial contactors to simplify complex cabling configurations and ensure secure electrical connections.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Data Sheet, Technical Information: 1SDC001007D0205
  • Instructions and Manuals: 1SFC380013-89
  • Product Net Width: 140 mm
  • Product Net Depth / Length: 15 mm
  • Product Net Height: 95 mm
  • Product Net Weight: 0.35 kg
  • Terminal Type: Screw Terminals
  • Suitable For: A210
  • Suitable for Product Class: Block Contactors
  • Product Name: Terminal Extension
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • REACH Declaration: 2CMT2021-006202
  • RoHS Declaration: 2CMT2021-006277
  • Toxic Substances Control Act - TSCA: 2CMT2023-006525

More info

▲
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Popular Downloads
Data Sheet, Technical Information1SDC001007D0205
Instructions and Manuals1SFC380013-89
Dimensions
Product Net Width140 mm
Product Net Depth / Length15 mm
Product Net Height95 mm
Product Net Weight0.35 kg
Technical
Terminal TypeScrew Terminals
Suitable ForA210
A260
A300
Suitable for Product ClassBlock Contactors
Product NameTerminal Extension
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration2CMT2021-006202
RoHS Declaration2CMT2021-006277
Toxic Substances Control Act - TSCA2CMT2023-006525
WEEE B2C / B2BBusiness To Business
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
ABB EcoSolutions
Certificates and Declarations
Declaration of Conformity - CE2CMT005321
Declaration of Conformity - UKCA2CMT2020-006120
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width130 mm
Package Level 1 Depth / Length17 mm
Package Level 1 Height165 mm
Package Level 1 Gross Weight0.45 kg
Package Level 1 EAN7320500203972
External Classifications and Standards
Object Classification CodeX
ETIM 7EC002498 - Accessories for low-voltage switch technology
ETIM 8EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9EC002498 - Accessories/spare parts for low-voltage switch technology
UNSPSC43171815
E-Number (Finland)3709285
E-Number (Norway)4120549
