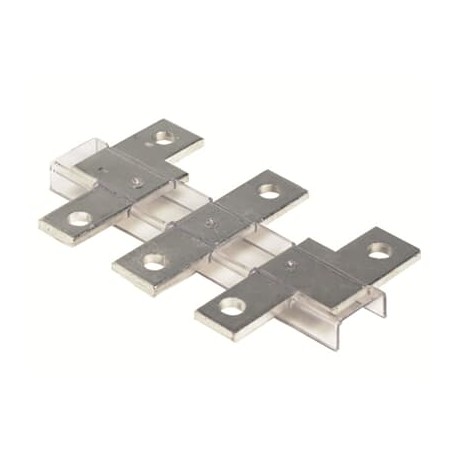

ABB 1SFN076107R1000 1SFN076107R1000 ABB Terminal Enlargement View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SFN076107R1000 ABB Terminal Enlargement

1SFN076107R1000

076107

ABB

1 Pcs.

Terminal Enlargement LW750 EXTENSION TERMINALS FOR AF580-AF750 LW750 Terminal Enlargement

Automation > Accessories/spare parts for low-voltage switch technology
"A" SECRLP

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This 1SFN076107R1000 ABB Terminal Enlargement provides expanded connection surfaces for heavy-duty industrial contactors. Terminal extensions and enlargement accessories simplify the integration of oversized conductors into high-amperage electrical distribution and motor control panels.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Data Sheet, Technical Information: 1SBC100214C0202
  • Instructions and Manuals: 1SFC380032-89
  • CAD Dimensional Drawing: 2CDC001079B0201
  • Product Net Width: 245 mm
  • Product Net Depth / Length: 50.5 mm
  • Product Net Height: 130 mm
  • Product Net Weight: 0.9 kg
  • Terminal Type: Screw Terminals
  • Suitable For: AF580
  • Suitable for Product Class: Block Contactors
  • Product Name: Terminal Enlargement
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • REACH Declaration: 2CMT2021-006202
  • RoHS Declaration: 2CMT2021-006277

More info

▲
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Popular Downloads
Data Sheet, Technical Information1SBC100214C0202
Instructions and Manuals1SFC380032-89
CAD Dimensional Drawing2CDC001079B0201
Dimensions
Product Net Width245 mm
Product Net Depth / Length50.5 mm
Product Net Height130 mm
Product Net Weight0.9 kg
Technical
Terminal TypeScrew Terminals
Suitable ForAF580
AF750
Suitable for Product ClassBlock Contactors
Product NameTerminal Enlargement
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration2CMT2021-006202
RoHS Declaration2CMT2021-006277
WEEE B2C / B2BBusiness To Business
WEEE CategoryProduct Not in WEEE Scope
Certificates and Declarations
cUL Certificate20120925-E36588
Declaration of Conformity - CE2CMT005309
Declaration of Conformity - UKCA2CMT2020-006120
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width50 mm
Package Level 1 Depth / Length130 mm
Package Level 1 Height300 mm
Package Level 1 Gross Weight1.23 kg
Package Level 1 EAN7320500227220
External Classifications and Standards
Object Classification CodeX
ETIM 7EC002498 - Accessories for low-voltage switch technology
ETIM 8EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9EC002498 - Accessories/spare parts for low-voltage switch technology
eClassV11.0 : 27371392
UNSPSC39122221
IDEA Granular Category Code (IGCC)5219 >> Switch part or accessory
E-Number (Finland)3709291
E-Number (Norway)4120562
E-Number (Sweden)3228916
