LW110 1SFN074307R1000 ABB Terminal enlargement
LW110
1SFN074307R1000
ABB
1 Pcs.
Automation > Accessories/spare parts for low-voltage switch technology
"A" SECRLP
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

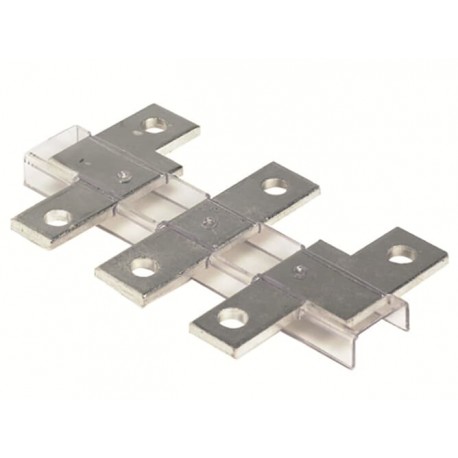

Abb LW110 terminal enlargement accessory extends the connection surface area of industrial block contactors to accommodate larger cable lugs and busbars. Such terminal adaptors are routinely utilized in heavy electrical panels to simplify cabling and ensure reliable power transmission. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Data Sheet, Technical Information: 1SDC001007D0205
- Instructions and Manuals: 5309660-61
- Product Net Width: 25 mm
- Product Net Depth / Length: 3 mm
- Product Net Height: 50 mm
- Product Net Weight: 0.07 kg
- Terminal Type: Screw Terminals
- Suitable For: A95
- Suitable for Product Class: Block Contactors
- Product Name: Terminal Enlargement
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 2CMT2021-006202
- RoHS Declaration: 2CMT2021-006277
- Toxic Substances Control Act - TSCA: 2CMT2023-006525
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SDC001007D0205 |
| Instructions and Manuals | 5309660-61 |
| Dimensions | |
| Product Net Width | 25 mm |
| Product Net Depth / Length | 3 mm |
| Product Net Height | 50 mm |
| Product Net Weight | 0.07 kg |
| Technical | |
| Terminal Type | Screw Terminals |
| Suitable For | A95 |
| A110 | |
| UA95 | |
| UA110 | |
| Suitable for Product Class | Block Contactors |
| Product Name | Terminal Enlargement |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Declaration | 2CMT2021-006277 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | Product Not in WEEE Scope |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CMT005321 |
| Declaration of Conformity - UKCA | 2CMT2020-006120 |
| Container Information | |
| Package Level 1 Units | bag 1 piece |
| Package Level 1 Width | 25 mm |
| Package Level 1 Depth / Length | 48.9 mm |
| Package Level 1 Height | 9 mm |
| Package Level 1 Gross Weight | 0.1 kg |
| Package Level 1 EAN | 7320500175088 |
| External Classifications and Standards | |
| Object Classification Code | X |
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| eClass | V11.0 : 27371392 |
| UNSPSC | 43171815 |
| E-Number (Norway) | 4120557 |
