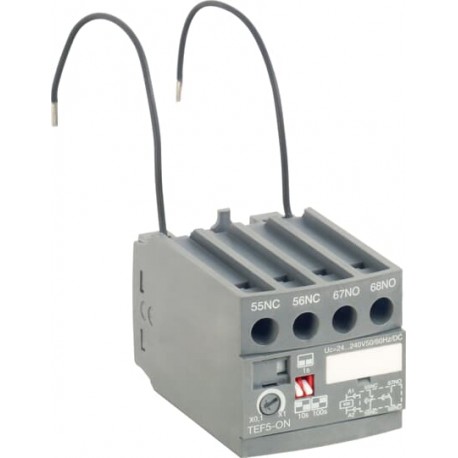

1SBN020312R1000 ABB TEF5-ON Frontal Electronic Timer
1SBN020312R1000
020312
ABB
1 Pcs.
Automation > Accessories/spare parts for low-voltage switch technology
"A" Classic Range
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Abb frontal electronic timer mounts directly onto control contactors to introduce precise time-delay functions into automated switching sequences and motor starter configurations. Frontal timing blocks enable automation engineers to sequence operations without occupying extra rail space in control cabinets.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389091
- Data Sheet, Technical Information: 1SBC100214C0202
- Instructions and Manuals: 1SBC101034M6801
- CAD Dimensional Drawing: 2CDC001079B0201
- Product Net Width: 44 mm
- Product Net Depth / Length: 62.5 mm
- Product Net Height: 40.5 mm
- Product Net Weight: 0.065 kg
- Number of Auxiliary Contacts NO: 1
- Number of Auxiliary Contacts NC: 1
- Number of Poles: 2P
- Standards: IEC/EN 60947-5-1, UL 508, CSA C22-2 No. 14-18
- Rated Operational Voltage: Auxiliary Circuit 240 V AC
- Rated Frequency (f): Auxiliary Circuit 50 / 60 Hz
- Conventional Free-air Thermal Current (I th ): acc. to IEC 60947-5-1, Θ = 40 °C 5 A
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389091 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SBC100214C0202 |
| Instructions and Manuals | 1SBC101034M6801 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 44 mm |
| Product Net Depth / Length | 62.5 mm |
| Product Net Height | 40.5 mm |
| Product Net Weight | 0.065 kg |
| Technical | |
| Number of Auxiliary Contacts NO | 1 |
| Number of Auxiliary Contacts NC | 1 |
| Number of Poles | 2P |
| Standards | IEC/EN 60947-5-1, UL 508, CSA C22-2 No. 14-18 |
| Rated Operational Voltage | Auxiliary Circuit 240 V AC |
| Rated Frequency (f) | Auxiliary Circuit 50 / 60 Hz |
| Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-5-1, Θ = 40 °C 5 A |
| Rated Operational Current AC-15 (Ie) | (24 / 127 V) 3 A |
| (220 / 240 V) 1.5 A | |
| Rated Operational Current DC-13 (Ie) | (24 V) 1 A / 24 W |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 0.1 s 8 A |
| for 1 s 8 A | |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-5-1 400 V |
| acc. to UL/CSA 300 V | |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Maximum Electrical Switching Frequency | (AC-15) 1200 cycles per hour |
| (DC-13) 900 cycles per hour | |
| Maximum Mechanical Switching Frequency | 3600 cycles per hour |
| Power Loss | at 3 A per Pole 0.1 W |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20 |
| Tightening Torque | Auxiliary Circuit 1 N·m |
| Terminal Type | Screw Terminals |
| Timer Relay Type | ON-Delay |
| Suitable For | GA75 |
| GAE75 | |
| UA16 | |
| UA26 | |
| UA30 | |
| UA50 | |
| UA63 | |
| UA75 | |
| AX06 | |
| AX09 | |
| AX12 | |
| AX18 | |
| AX25 | |
| AX32 | |
| AX40 | |
| AX50 | |
| AX65 | |
| AX80 | |
| Product Name | Electronic Timer |
| Technical UL/CSA | |
| Tightening Torque UL/CSA | Auxiliary Circuit 9 in·lb |
| Environmental | |
| Ambient Air Temperature | Close to Contactor for Storage -40 ... +80 °C |
| Operation -25 ... +70 °C | |
| Climatic Withstand | Category B according to IEC 60947-1 Annex Q |
| Maximum Operating Altitude Permissible | Without Derating 2000 m |
