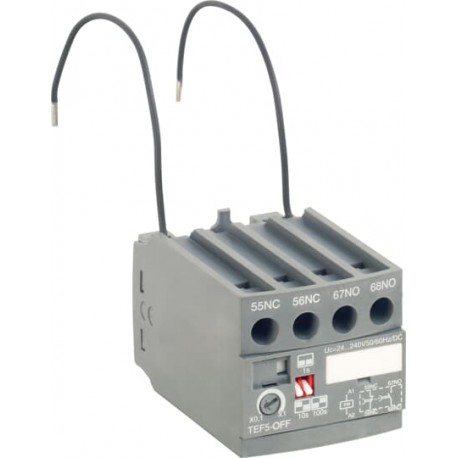

1SBN020314R1000 ABB TEF5-OFF Frontal Electronic Timer
1SBN020314R1000
020314
ABB
1 Pcs.
Automation > Accessories/spare parts for low-voltage switch technology
"A" Classic Range
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An electronic timer is commonly utilized in control panels to introduce precise time-delayed switching for auxiliary circuits, motor starters, and automation sequences. This ABB 1SBN020314R1000 frontal electronic timer mounts directly onto compatible contactors to manage operational timing intervals reliably within industrial machinery. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389091
- Data Sheet, Technical Information: 1SBC100214C0202
- Instructions and Manuals: 1SBC101034M6801
- CAD Dimensional Drawing: 2CDC001079B0201
- Product Net Width: 44 mm
- Product Net Depth / Length: 62.5 mm
- Product Net Height: 40.5 mm
- Product Net Weight: 0.065 kg
- Number of Auxiliary Contacts NO: 1
- Number of Auxiliary Contacts NC: 1
- Number of Poles: 2P
- Standards: IEC/EN 60947-5-1, UL 508, CSA C22-2 No. 14-18
- Rated Operational Voltage: Auxiliary Circuit 240 V AC
- Rated Frequency (f): Auxiliary Circuit 50 / 60 Hz Conventional Free-air Thermal Current (I th ): acc. to IEC 60947-5-1, Θ = 40 °C 5 A
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389091 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SBC100214C0202 |
| Instructions and Manuals | 1SBC101034M6801 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 44 mm |
| Product Net Depth / Length | 62.5 mm |
| Product Net Height | 40.5 mm |
| Product Net Weight | 0.065 kg |
| Technical | |
| Number of Auxiliary Contacts NO | 1 |
| Number of Auxiliary Contacts NC | 1 |
| Number of Poles | 2P |
| Standards | IEC/EN 60947-5-1, UL 508, CSA C22-2 No. 14-18 |
| Rated Operational Voltage | Auxiliary Circuit 240 V AC |
| Rated Frequency (f) | Auxiliary Circuit 50 / 60 Hz |
| Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-5-1, Θ = 40 °C 5 A |
| Rated Operational Current AC-15 (Ie) | (24 / 127 V) 3 A |
| (220 / 240 V) 1.5 A | |
| Rated Operational Current DC-13 (Ie) | (24 V) 1 A / 24 W |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 0.1 s 8 A |
| for 1 s 8 A | |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-5-1 400 V |
| acc. to UL/CSA 300 V | |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Maximum Electrical Switching Frequency | (AC-15) 1200 cycles per hour |
| (DC-13) 900 cycles per hour | |
| Maximum Mechanical Switching Frequency | 1800 cycles per hour |
| Power Loss | at 3 A per Pole 0.1 W |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20 |
| Tightening Torque | Auxiliary Circuit 1 N·m |
| Terminal Type | Screw Terminals |
| Timer Relay Type | OFF-Delay |
| Suitable For | GA75 |
| GAE75 | |
| UA16 | |
| UA26 | |
| UA30 | |
| UA50 | |
| UA63 | |
| UA75 | |
| AX06 | |
| AX09 | |
| AX12 | |
| AX18 | |
| AX25 | |
| AX32 | |
| AX40 | |
| AX50 | |
| AX65 | |
| AX80 | |
| Product Name | Electronic Timer |
| Technical UL/CSA | |
| Tightening Torque UL/CSA | Auxiliary Circuit 9 in·lb |
| Environmental | |
| Ambient Air Temperature | Close to Contactor for Storage -40 ... +80 °C |
| Operation -25 ... +70 °C | |
| Climatic Withstand | Category B according to IEC 60947-1 Annex Q |
| Maximum Operating Altitude Permissible | Without Derating 2000 m |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Declaration | 2CMT2021-006277 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 558c7d79-298b-4357-9b83-3f7a9b422347 China |
| Simplified SCIP | 08e37ca3-5d22-444e-98b0-891735378f04 Belgium |
| 1bd421f3-ef13-4b3b-ada7-daaccd56bc54 Spain | |
| 2b4db3cc-64fd-4efb-927d-1aaf9eed59d2 Estonia | |
| 3f5c1c26-1399-4496-a6b8-cfcc7feb5510 Portugal | |
| 4136a78e-da09-4d39-8fb5-4512423930c1 Netherlands | |
| 49bb457f-85ae-42c8-8dd2-c84f12a376af France | |
| 55400e9d-e711-4d00-b1f8-d0b4e20eefd0 Finland | |
| 62ed8fca-a389-4850-8e14-0e9a315e2936 Norway | |
| 713d8d76-63c6-4625-95d7-5248a30649e1 Croatia | |
| 85e52914-8303-444b-9782-0ec4956b9954 Bulgaria | |
| 873b8437-0707-49b8-8d6d-05438d310fc2 Denmark | |
| 897de768-cb8a-4c02-83ba-d48aca1caf64 Greece | |
| 945a89dd-61a0-480a-9e12-daa76393a9ad Hungary | |
| ab5a7041-0b61-465a-8999-028520facbdf Germany | |
| ac419e7d-8502-464e-9b93-ed119e649da6 Poland | |
| bd0b68be-d8cd-40f9-9281-22c589cdc83b Czech Republic | |
| f8ac36cd-c68a-43d6-a98a-cf39388ce926 Sweden | |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| CB Certificate | CB_CN46281 |
| CCC Certificate | CCC_2012010303572179 |
| CQC Certificate | CQC2012010303572179 |
| Declaration of Conformity - CCC | 2020980303000172 |
| Declaration of Conformity - CE | 1SBD250812U1000 |
| Declaration of Conformity - UKCA | 1SBD250829U1000 |
| UL Certificate | UL-US-L252354-192-31702102-2 |
| UL-CA-L252354-392-31702102-2 | |
| UL Listing Card | UL_E252354 |
| Container Information | |
