ABB 1SBN020113R1000 1SBN020113R1000 ABB TEF4S-ON Frontal Electronic Timer View larger
Images are for illustrative purposes only. Please refer to data sheet for details

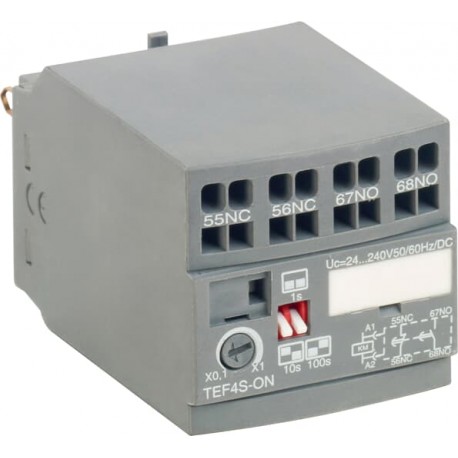

1SBN020113R1000 ABB TEF4S-ON Frontal Electronic Timer

1SBN020113R1000

020113

ABB

1 Pcs.

TEF4S-ON Frontal Electronic Timer TEF4S-ON TEMPO. FRONT MOUNTING CONT. AF

Automation > Timer block
AF contactors to 38 A

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85389091
Popular Downloads
Data Sheet, Technical Information1SBC100214C0202
Instructions and Manuals1SBC101026M6801
Instructions and Manuals (Part 2)1SAC200017M0002
CAD Dimensional Drawing2CDC001079B0201
Dimensions
Product Net Width43 mm
Product Net Depth / Length67.7 mm
Product Net Height41.3 mm
Product Net Weight0.065 kg
Technical
Number of Auxiliary Contacts NO1
Number of Auxiliary Contacts NC1
Number of Poles2P
StandardsIEC/EN 60947-5-1, UL 508, CSA C22-2 No. 14-18
Rated Operational VoltageAuxiliary Circuit 240 V AC
Auxiliary Circuit 24 V DC
Rated Frequency (f)Auxiliary Circuit 50 / 60 Hz
Control Circuit 50 / 60 Hz
Conventional Free-air Thermal Current (Ith)acc. to IEC 60947-5-1, Θ = 40 °C 5 A
Rated Operational Current AC-15 (Ie)(24 / 127 V) 3 A
(220 / 240 V) 1.5 A
Rated Operational Current DC-13 (Ie)(24 V) 1 A / 24 W
Rated Short-time Withstand Current Low Voltage (Icw)for 0.1 s 8 A
for 1 s 8 A
Rated Insulation Voltage (Ui)acc. to IEC 60947-5-1 400 V
acc. to UL/CSA 300 V
Rated Impulse Withstand Voltage (Uimp)4 kV
Maximum Electrical Switching Frequency(AC-15) 1200 cycles per hour
(DC-13) 900 cycles per hour
Maximum Mechanical Switching Frequency3600 cycles per hour
Power Lossat 3 A per Pole 0.1 W
Degree of Protectionacc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20
Terminal TypeSpring Terminals
Timer Relay TypeON-Delay
Suitable ForAF09
AF09Z
AF12
AF12Z
AF16
AF16Z
AF26
AF26Z
AF30
AF30Z
AF38
AF38Z
AF40
AF52
AF65
AF80
AF96
AFC09
AFC12
AFC16
AFC26
AFC30
AFC38
NF22E
NFZ22E
NF31E
NFZ31E
NF40E
NFZ40E
NFC22E
NFC31E
NFC40E
Product NameElectronic Timer
Environmental
Ambient Air TemperatureClose to Contactor for Storage -40 ... +80 °C
Operation -25 ... +70 °C
Climatic WithstandCategory B according to IEC 60947-1 Annex Q
Maximum Operating Altitude PermissibleWithout Derating 2000 m
Resistance to Vibrations3g Closed Position & 2g Open Position 5 ... 300 Hz
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration2CMT2021-006202
RoHS Declaration2CMT2021-006277
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Simplified SCIP00487722-26a1-433c-a1ca-578bc1667769 Czech Republic
0ae0c6d7-a2c0-4fff-926a-7a3fbc7afe62 Belgium
0f6c6c34-ccc6-4c74-9ff8-6049ba648255 Finland
114c03da-f337-4c27-853a-20e8c89f4507 Estonia
27de9d8c-be07-4f38-99e2-f6d06fb7e89d Spain
2e514bb0-be1e-4315-8056-906421ebd93e France
33bceb63-2e2a-4dae-b25a-91525eddbce1 Poland
3e67ff21-c208-4a8c-b2b9-1ef7349c938a Bulgaria
47ac1fea-6e09-4f03-9092-851c4a7d7d5b Norway
49e5af5b-4efa-4d0b-9f8e-5d26f079db37 Portugal
61a5696c-670b-450a-bd00-640e9f9d8449 Denmark
6559abd5-b470-49b4-829b-e683d8176bf6 Greece
6accbe78-9600-4405-9eb0-fe7ae3606a10 Sweden
cef12673-c4b2-4fcd-9b1b-1142d1a81a47 Hungary
db864101-e6ea-4691-8629-9c4c9368d046 Netherlands
de71d46d-12cc-4fff-a1d8-0f94c0240cd2 Germany
e6a746b2-8ef8-4ef1-99d6-930ccaa95c74 Croatia
Toxic Substances Control Act - TSCA2CMT2023-006525
WEEE B2C / B2BBusiness To Business
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
Certificates and Declarations
ABS CertificateABS_20-2060694-PDA
CB CertificateCB_CN46281
CCC CertificateCCC_2012010303572179
CQC CertificateCQC2012010303572179
Declaration of Conformity - CCC2020980303000172
Declaration of Conformity - CE1SBD250008U1000
Declaration of Conformity - UKCA1SBD250039U1000
UL CertificateUL-US-L252354-192-31702102-2
UL-CA-L252354-392-31702102-2
UL Listing CardUL_E252354
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width82 mm
Package Level 1 Depth / Length56 mm
Package Level 1 Height51 mm
Package Level 1 Gross Weight0.065 kg
Package Level 1 EAN3471523130647
Package Level 2 Unitsbox 80 piece
Package Level 2 Width254 mm
Package Level 2 Depth / Length319 mm
Package Level 2 Height200 mm
Package Level 2 Gross Weight5.2 kg
External Classifications and Standards
Object Classification CodeK
ETIM 7EC002060 - Timer block
ETIM 8EC002060 - Timer block
ETIM 9EC002060 - Timer block
eClassV11.0 : 27371308
UNSPSC39121500
E-Number (Finland)3708073

ETIM for 1SBN020113R1000 Relays (EC002060)
