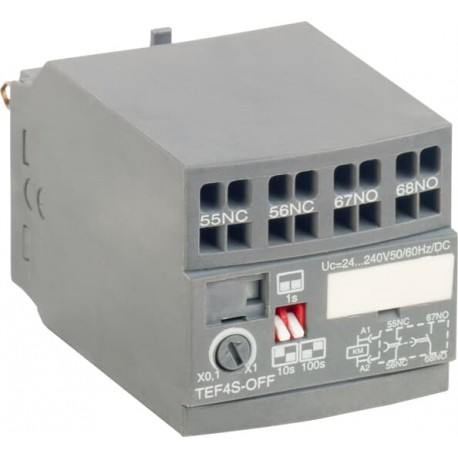

1SBN020115R1000 ABB TEF4S-OFF Frontal Electronic Timer
1SBN020115R1000
020115
ABB
1 Pcs.
TEF4S-OFF Frontal Electronic Timer
TEF4S-OFF TEMPO. FRONT MOUNTING. CONT. AF
Automation > Timer block
AF contactors to 38 A
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Frontal electronic timers like the ABB 1SBN020115R1000 mount directly onto contactors to introduce precise timing sequences into motor starting and control architectures.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389091
- Data Sheet, Technical Information: 1SBC100214C0202
- Instructions and Manuals: 1SBC101026M6801
- Instructions and Manuals (Part 2): 1SAC200017M0002
- CAD Dimensional Drawing: 2CDC001079B0201
- Product Net Width: 43 mm
- Product Net Depth / Length: 67.7 mm
- Product Net Height: 41.3 mm
- Product Net Weight: 0.065 kg
- Number of Auxiliary Contacts NO: 1
- Number of Auxiliary Contacts NC: 1
- Number of Poles: 2P
- Standards: IEC/EN 60947-5-1, UL 508, CSA C22-2 No. 14-18
- Rated Operational Voltage: Auxiliary Circuit 240 V AC
- Rated Frequency (f): Auxiliary Circuit 50 / 60 Hz
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389091 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SBC100214C0202 |
| Instructions and Manuals | 1SBC101026M6801 |
| Instructions and Manuals (Part 2) | 1SAC200017M0002 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 43 mm |
| Product Net Depth / Length | 67.7 mm |
| Product Net Height | 41.3 mm |
| Product Net Weight | 0.065 kg |
| Technical | |
| Number of Auxiliary Contacts NO | 1 |
| Number of Auxiliary Contacts NC | 1 |
| Number of Poles | 2P |
| Standards | IEC/EN 60947-5-1, UL 508, CSA C22-2 No. 14-18 |
| Rated Operational Voltage | Auxiliary Circuit 240 V AC |
| Auxiliary Circuit 24 V DC | |
| Rated Frequency (f) | Auxiliary Circuit 50 / 60 Hz |
| Control Circuit 50 / 60 Hz | |
| Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-5-1, Θ = 40 °C 5 A |
| Rated Operational Current AC-15 (Ie) | (24 / 127 V) 3 A |
| (220 / 240 V) 1.5 A | |
| Rated Operational Current DC-13 (Ie) | (24 V) 1 A / 24 W |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 0.1 s 8 A |
| for 1 s 8 A | |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-5-1 400 V |
| acc. to UL/CSA 300 V | |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Maximum Electrical Switching Frequency | (AC-15) 1200 cycles per hour |
| (DC-13) 900 cycles per hour | |
| Maximum Mechanical Switching Frequency | 1800 cycles per hour |
| Power Loss | at 3 A per Pole 0.1 W |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20 |
| Terminal Type | Spring Terminals |
| Timer Relay Type | OFF-Delay |
| Suitable For | AF09 |
| AF09Z | |
| AF12 | |
| AF12Z | |
| AF16 | |
| AF16Z | |
| AF26 | |
| AF26Z | |
| AF30 | |
| AF30Z | |
| AF38 | |
| AF38Z | |
| AF40 | |
| AF52 | |
| AF65 | |
| AF80 | |
| AF96 | |
| AFC09 | |
| AFC12 | |
| AFC16 | |
| AFC26 | |
| AFC30 | |
| AFC38 | |
| NF22E | |
| NFZ22E | |
| NF31E | |
| NFZ31E | |
| NF40E | |
| NFZ40E | |
| NFC22E | |
| NFC31E | |
| NFC40E | |
| Product Name | Electronic Timer |
| Environmental | |
| Ambient Air Temperature | Close to Contactor for Storage -40 ... +80 °C |
| Operation -25 ... +70 °C | |
| Climatic Withstand | Category B according to IEC 60947-1 Annex Q |
| Maximum Operating Altitude Permissible | Without Derating 2000 m |
| Resistance to Vibrations | 3g Closed Position & 2g Open Position 5 ... 300 Hz |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Declaration | 2CMT2021-006277 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Simplified SCIP | 04b8d250-44e7-4540-bd6c-819dee7806cd Denmark |
| 0f23a3db-d3e4-49bd-a051-2b0ab014bcfc Portugal | |
| 0f9f067e-4e29-49ba-8831-112238d1ea87 Spain | |
| 13b97ef3-353a-4368-bc86-b235d49817e6 Finland | |
| 362d7314-df4d-4d88-ac95-7a310e0e2977 Sweden | |
| 36f23776-7263-4ac9-81f2-4e4aee812939 Croatia | |
| 41f88840-f6bb-4b15-9a3e-68787b121cbf Germany | |
| 4bdf4562-ba28-470d-a8d6-b4c7190dcf9e Hungary | |
| 5a3e8010-e352-4261-b47e-12a0772cef58 Greece | |
| 7ac01411-d346-4269-8e37-3e4f10bda3d6 Czech Republic | |
| 8edaab99-7a67-4cbf-9065-d5848c890738 Norway | |
| de3069fc-46e3-4ca7-a25f-1e1f5058fba9 Belgium | |
| e4fba945-4204-4737-b83c-1091d6a3db04 Poland | |
| eecc0ccc-512a-4fe2-87bf-7fabc4932ba5 Estonia | |
| f0fc6714-2c4d-42b2-b3dc-8a788223683d Bulgaria | |
| f58fcd97-47c3-4605-9fc0-3ff1a41df2f1 France | |
| fc59c179-1a81-44c8-91c9-dd36b3878454 Netherlands | |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| ABS Certificate | ABS_20-2060694-PDA |
| CB Certificate | CB_CN46281 |
| CCC Certificate | CCC_2012010303572179 |
| CQC Certificate | CQC2012010303572179 |
| Declaration of Conformity - CCC | 2020980303000172 |
| Declaration of Conformity - CE | 1SBD250008U1000 |
| Declaration of Conformity - UKCA | 1SBD250039U1000 |
| UL Certificate | UL-US-L252354-192-31702102-2 |
| UL-CA-L252354-392-31702102-2 | |
| UL Listing Card | UL_E252354 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 82 mm |
| Package Level 1 Depth / Length | 56 mm |
| Package Level 1 Height | 51 mm |
| Package Level 1 Gross Weight | 0.065 kg |
| Package Level 1 EAN | 3471523130661 |
| Package Level 2 Units | box 80 piece |
| Package Level 2 Width | 254 mm |
| Package Level 2 Depth / Length | 319 mm |
| Package Level 2 Height | 200 mm |
| Package Level 2 Gross Weight | 5.2 kg |
| External Classifications and Standards | |
| Object Classification Code | K |
| ETIM 7 | EC002060 - Timer block |
| ETIM 8 | EC002060 - Timer block |
| ETIM 9 | EC002060 - Timer block |
| eClass | V11.0 : 27371308 |
| UNSPSC | 39121500 |
| E-Number (Finland) | 3708074 |
