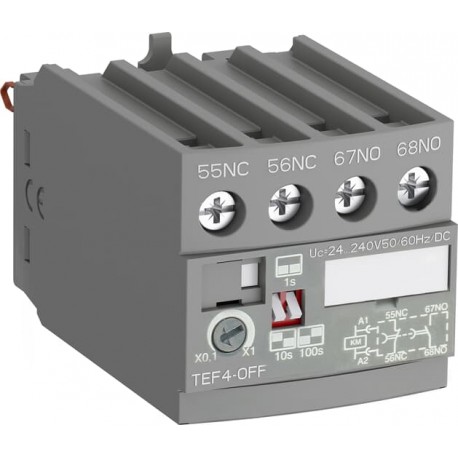

1SBN020114R1000 ABB TEF4-OFF Frontal Electronic Timer
1SBN020114R1000
020114
ABB
1 Pcs.
TEF4-OFF Frontal Electronic Timer
TEF4-OFF TEMPO. ELECTRONIC. FRONT CONTACT AF
Automation > Timer block
AF contactors to 38 A
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Frontal electronic timers mount onto contactor blocks to regulate auxiliary circuit switching intervals within automated industrial machinery.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389091
- Data Sheet, Technical Information: 1SBC100214C0202
- Instructions and Manuals: 1SBC101026M6801
- Instructions and Manuals (Part 2): 1SAC200017M0002
- CAD Dimensional Drawing: 2CDC001079B0201
- Product Net Width: 43 mm
- Product Net Depth / Length: 67.7 mm
- Product Net Height: 41.6 mm
- Product Net Weight: 0.065 kg
- Number of Auxiliary Contacts NO: 1
- Number of Auxiliary Contacts NC: 1
- Number of Poles: 2P
- Rated Operational Voltage: Auxiliary Circuit 240 V AC
- Rated Frequency (f): Auxiliary Circuit 50 / 60 Hz
- Conventional Free-air Thermal Current (I th ): acc. to IEC 60947-5-1, Θ = 40 °C 5 A
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389091 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SBC100214C0202 |
| Instructions and Manuals | 1SBC101026M6801 |
| Instructions and Manuals (Part 2) | 1SAC200017M0002 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 43 mm |
| Product Net Depth / Length | 67.7 mm |
| Product Net Height | 41.6 mm |
| Product Net Weight | 0.065 kg |
| Technical | |
| Number of Auxiliary Contacts NO | 1 |
| Number of Auxiliary Contacts NC | 1 |
| Number of Poles | 2P |
| Standards | IEC/EN 60947-5-1, UL 508, UL 60335-2-40 LZGH2 A2L, CSA C22-2 No. 14-18, CSA C22.2 No. 60335-2-40 LZGH2 A2L |
| Rated Operational Voltage | Auxiliary Circuit 240 V AC |
| Auxiliary Circuit 24 V DC | |
| Rated Frequency (f) | Auxiliary Circuit 50 / 60 Hz |
| Control Circuit 50 / 60 Hz | |
| Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-5-1, Θ = 40 °C 5 A |
| Rated Operational Current AC-15 (Ie) | (24 / 127 V) 3 A |
| (220 / 240 V) 1.5 A | |
| Rated Operational Current DC-13 (Ie) | (24 V) 1 A / 24 W |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 0.1 s 8 A |
| for 1 s 8 A | |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-5-1 400 V |
| acc. to UL/CSA 300 V | |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Maximum Electrical Switching Frequency | (AC-15) 1200 cycles per hour |
| (DC-13) 900 cycles per hour | |
| Maximum Mechanical Switching Frequency | 1800 cycles per hour |
| Power Loss | at 3 A per Pole 0.1 W |
| Connecting Capacity Auxiliary Circuit | Flexible with Ferrule 1/2x 0.5 ... 2.5 mm² |
| Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm² | |
| Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm² | |
| Rigid Solid 1/2x 1 ... 2.5 mm² | |
| Rigid Stranded 1/2x 1 ... 2.5 mm² | |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20 |
| Tightening Torque | Auxiliary Circuit 1.2 N·m |
| Terminal Type | Screw Terminals |
| Timer Relay Type | OFF-Delay |
| Suitable For | AF09 |
| AF09Z | |
| AF12 | |
| AF12Z | |
| AF16 | |
| AF16Z | |
| AF26 | |
| AF26Z | |
| AF30 | |
| AF30Z | |
| AF38 | |
| AF38Z | |
| AF40 | |
| AF52 | |
| AF65 | |
| AF80 | |
| AF96 | |
| AFC09 | |
| AFC12 | |
| AFC16 | |
| AFC26 | |
| AFC30 | |
| AFC38 | |
| NF22E | |
| NFZ22E | |
| NF31E | |
| NFZ31E | |
| NF40E | |
| NFZ40E | |
| NFC22E | |
| NFC31E | |
| NFC40E | |
| Product Name | Electronic Timer |
| Technical UL/CSA | |
| Tightening Torque UL/CSA | Auxiliary Circuit 11 in·lb |
| Environmental | |
| Ambient Air Temperature | Close to Contactor for Storage -40 ... +80 °C |
| Operation -25 ... +70 °C | |
| Climatic Withstand | Category B according to IEC 60947-1 Annex Q |
| Maximum Operating Altitude Permissible | Without Derating 2000 m |
| Resistance to Vibrations | 3g Closed Position & 2g Open Position 5 ... 300 Hz |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Declaration | 2CMT2021-006277 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | b815070a-c1ae-446c-8830-f5e7343c90e3 China |
| Simplified SCIP | 11c817ed-31a4-4977-b0dd-1162db7cb10c Spain |
| 15c76503-c6f1-4ee1-832b-ceb0ad9fe9e9 Portugal | |
| 1fa69680-2f31-4794-aab9-23b4087c8076 Denmark | |
| 20e8813b-5482-4fea-93d4-5230bc39c1d8 Norway | |
| 225c7b71-f643-4f44-8c09-30e88cd17843 Croatia | |
| 318e3444-c94e-4b83-85ee-e2846fc4ff31 Sweden | |
| 5998dffb-48c5-4be3-ae8b-3dbc5d4fe2c2 Netherlands | |
| 79d086db-9aa6-45a4-bd52-3beca3219ba4 Estonia | |
| 7b3f7b87-74ed-477e-93b7-dba01cbaa9c0 Belgium | |
| 86506ecb-3cbf-4f40-bf03-b7d919ed9e67 Bulgaria | |
| 96c85ef8-bbb9-4a72-ad6c-3aefa287513e Finland | |
| a3524abc-bdf2-4f1a-b069-186f94ab488c France | |
| ec0e3194-0957-457f-bd74-bf82d2549c21 Hungary | |
| ed05cee5-4eea-4878-8cac-6aa8cdf480c2 Greece | |
| ee268d0c-872c-4665-a6bd-ef18c2878822 Germany | |
| f565d392-fc63-4a59-b5ae-d29b8611b3ea Czech Republic | |
| fb8f014a-de21-420e-8516-01cd94bb251e Poland | |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| A2L Certificate – UL | 9AKK108469A4895 |
| 9AKK108469A4896 | |
| ABS Certificate | ABS_20-2060694-PDA |
| CB Certificate | CB_CN46281 |
| CCC Certificate | CCC_2012010303572179 |
| CQC Certificate | CQC2012010303572179 |
| Declaration of Conformity - CCC | 2020980303000172 |
| Declaration of Conformity - CE | 1SBD250008U1000 |
| Declaration of Conformity - UKCA | 1SBD250039U1000 |
| UL Certificate | UL-US-L252354-192-31702102-2 |
| UL-CA-L252354-392-31702102-2 | |
| UL Listing Card | UL_E252354 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 82 mm |
| Package Level 1 Depth / Length | 56 mm |
| Package Level 1 Height | 51 mm |
| Package Level 1 Gross Weight | 0.065 kg |
| Package Level 1 EAN | 3471523130654 |
| Package Level 2 Units | box 80 piece |
| Package Level 2 Width | 254 mm |
| Package Level 2 Depth / Length | 319 mm |
| Package Level 2 Height | 200 mm |
| Package Level 2 Gross Weight | 5.2 kg |
| External Classifications and Standards | |
| Object Classification Code | K |
| ETIM 7 | EC002060 - Timer block |
| ETIM 8 | EC002060 - Timer block |
| ETIM 9 | EC002060 - Timer block |
| eClass | V11.0 : 27371308 |
| UNSPSC | 39121523 |
| IDEA Granular Category Code (IGCC) | 4746 >> Timer controls |
| E-Number (Finland) | 3706000 |
| E-Number (Sweden) | 3210257 |
