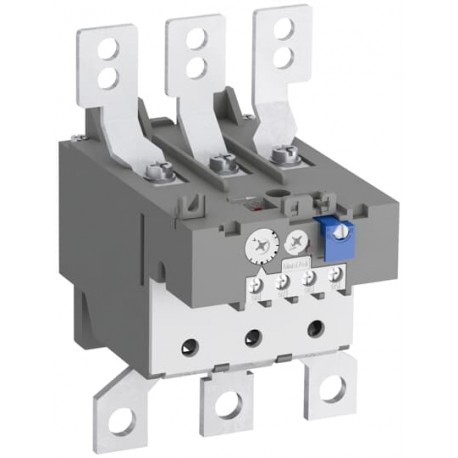

1SAZ421201R1002 ABB TA200DU-110 Thermal Overload Relay
1SAZ421201R1002
421201
ABB
1 Pcs.
Automation > Thermal overload relay
Thermal Relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Thermal overload relay provides essential current-based protection for heavy-duty industrial motors, interrupting power when prolonged overcurrent threatens the system. The ABB 1SAZ421201R1002 is engineered for demanding operational environments.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85364900
- Data Sheet, Technical Information: 1SBC100214C0202
- Instructions and Manuals: 2CDC106028M6802
- Instructions and Manuals (Part 2): 1SAC200017M0002
- Time-Current Characteristic Curve: 1SAZ400502F0002
- CAD Dimensional Drawing: 2CDC001079B0201
- Dimension Diagram: 1SAZ400401F0001
- Product Net Width: 104 mm
- Product Net Height: 151 mm
- Product Net Depth / Length: 126 mm
- Product Net Weight: 0.76 kg
- Setting Range: 80 ... 110 A
- Rated Operational Voltage: Auxiliary Circuit 440 V DC
- Rated Operational Current (I e ): 110 A
- Rated Frequency (f): Auxiliary Circuit 50 Hz
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85364900 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SBC100214C0202 |
| Instructions and Manuals | 2CDC106028M6802 |
| Instructions and Manuals (Part 2) | 1SAC200017M0002 |
| Time-Current Characteristic Curve | 1SAZ400502F0002 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimension Diagram | 1SAZ400401F0001 |
| Dimensions | |
| Product Net Width | 104 mm |
| Product Net Height | 151 mm |
| Product Net Depth / Length | 126 mm |
| Product Net Weight | 0.76 kg |
| Technical | |
| Setting Range | 80 ... 110 A |
| Rated Operational Voltage | Auxiliary Circuit 440 V DC |
| Auxiliary Circuit 500 V AC | |
| Main Circuit 690 V AC | |
| Main Circuit 440 V DC | |
| Rated Operational Current (Ie) | 110 A |
| Rated Frequency (f) | Auxiliary Circuit 50 Hz |
| Auxiliary Circuit 60 Hz | |
| Auxiliary Circuit DC | |
| Main Circuit 60 Hz | |
| Main Circuit 50 Hz | |
| Main Circuit DC | |
| Rated Impulse Withstand Voltage (Uimp) | Auxiliary Circuit 6 kV |
| Main Circuit 6 kV | |
| Rated Insulation Voltage (Ui) | 690 V |
| Number of Poles | 3P |
| Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 1 |
| Number of Protected Poles | 3 |
| Conventional Free-air Thermal Current (Ith) | Auxiliary Circuit NC 5 A |
| Auxiliary Circuit NO 5 A | |
| Rated Operational Current AC-15 (Ie) | (120 V) NC 3 A |
| (120 V) NO 1.5 A | |
| (240 V) NC 3 A | |
| (240 V) NO 1.2 A | |
| (400 V) NC 0.75 A | |
| (400 V) NO 0.37 A | |
| (440 V) NC 0.75 A | |
| (440 V) NO 0.37 A | |
| (500 V) NC 0.3 A | |
| (500 V) NO 0.25 A | |
| Rated Operational Current DC-13 (Ie) | (125 V) NC 0.25 A |
| (125 V) NO 0.25 A | |
| (24 V) NC 1.25 A | |
| (24 V) NO 1.25 A | |
| (250 V) NC 0.12 A | |
| (250 V) NO 0.04 A | |
| (60 V) NC 0.25 A | |
| (60 V) NO 0.25 A | |
| Degree of Protection | Housing IP20 |
| Main Circuit Terminals IP00 | |
| Pollution Degree | 3 |
| Connecting Capacity Auxiliary Circuit | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm² |
| Flexible 1/2x 0.75 ... 2.5 mm² | |
| Rigid 1/2x 0.75 ... 4 mm² | |
| Connecting Capacity Main Circuit | Hole Diameter > 10 mm² |
| Rigid or Flexible with Cable Lug 1x 25 ... 120 mm² | |
| Tightening Torque | Auxiliary Circuit 1 ... 1.3 N·m |
| Main Circuit 25 N·m | |
| Wire Stripping Length | Auxiliary Circuit 9 mm |
| Recommended Screw Driver | Auxiliary Circuit Pozidriv 1 |
| Main Circuit Open Bars | |
| Mounting Position | 1 ... 6 |
| Power Loss | at Rated Operating Conditions per Pole 2.5 ... 4.7 W |
| Suitable For | A145 |
| A185 | |
| AF145 | |
| AF185 | |
| AF190 | |
| AF205 | |
| Standards | IEC/EN 60947-1 |
| IEC/EN 60947-4-1 | |
| IEC/EN 60947-5-1 | |
| UL 60947-1 | |
| UL 60947-4-1 | |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V AC |
| Contact Rating UL/CSA | (NC:) B600 |
| (NO:) C600 | |
| Connecting Capacity Main Circuit UL/CSA | Flexible 1x 4-0000 AWG |
| Stranded 1x 4-0000 AWG | |
| Connecting Capacity Auxiliary Circuit UL/CSA | Flexible 1/2x 18-14 AWG |
| Stranded 1/2x 18-14 AWG | |
| Tightening Torque UL/CSA | Auxiliary Circuit 12 in·lb |
| Main Circuit 220 in·lb | |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... +55 °C |
| Operation Compensated -25 ... +55 °C | |
| Storage -40 ... +70 °C | |
| Ambient Air Temperature Compensation | Yes |
| Maximum Operating Altitude Permissible | 2000 m |
| Resistance to Shock acc. to IEC 60068-2-27 | 11 ms Pulse 12g |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Declaration | 2CMT2021-006277 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| ABB EcoSolutions | |
| End Of Life Disassembling Instructions | 1SAC200335H0001 |
| Environmental Information | 1SAC200056H0009 |
| Environmental Product Declaration - EPD | 1SAC200275H0001 |
| Certificates and Declarations | |
| ABS Certificate | 1SAA941000-0102 |
| BV Certificate | 1SAA941000-0201 |
| CB Certificate | 1SAA941004-2003 |
| CCC Certificate | 2024010304659820 |
| CQC Certificate | CQC2016010309922936 |
| Declaration of Conformity - CCC | 2020980304001321 |
| Declaration of Conformity - CE | 1SAD101100-3509 |
| Declaration of Conformity - UKCA | 1SAD201100-3509 |
| DNV Certificate | 1SAA941000-0304 |
| DNV GL Certificate | 1SAA941000-0304 |
| EAC Certificate | 1SAA941002-2702 |
| GL Certificate | 1SAA941000-0304 |
| LR Certificate | 1SAA941000-0504 |
| RMRS Certificate | 1SAA941000-0704 |
| UL Certificate | E48139-19910930 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 165 mm |
| Package Level 1 Height | 133 mm |
| Package Level 1 Depth / Length | 151 mm |
| Package Level 1 Gross Weight | 1.01 kg |
| Package Level 1 EAN | 4013614286025 |
| Package Level 2 Units | 4 piece |
| Package Level 2 Width | 280 mm |
| Package Level 2 Height | 210 mm |
| Package Level 2 Depth / Length | 395 mm |
| Package Level 2 Gross Weight | 8.786 kg |
| Package Level 2 EAN | 4013614494246 |
| External Classifications and Standards | |
| Object Classification Code | F |
| ETIM 9 | EC000106 - Thermal overload relay |
| ETIM 10 | EC000106 - Thermal overload relay |
| eClass | V11.0 : 27371501 |
| UNSPSC | 39122330 |
| IDEA Granular Category Code (IGCC) | 5366 >> Thermal overload relay |
| E-Number (Finland) | 3709358 |
| E-Number (Sweden) | 3228702 |
