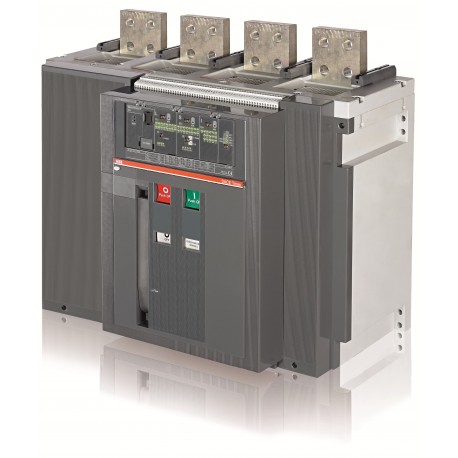

1SDA065796R1 ABB T8V 3200 PR331/P LSI In 3200A 4p F VR
1SDA065796R1
065796
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
T8 and Accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB power circuit breaker, part number 1SDA065796R1, is built to handle massive electrical currents and interrupt severe fault conditions in high-capacity industrial networks. These heavy-duty protective devices ensure safety and reliability across extensive power distribution infrastructures.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Information: 9AKK107046A3003
- Order Code US and Canada: T8VFF4JC000000XX
- EAN: 8015644687076
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 553 mm
- Product Net Height: 382 mm
- Product Net Depth / Length: 282 mm
- Product Net Weight: 15 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 650 mm
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK107046A3003 |
| 9AKK108467A6707 | |
| Ordering | |
| Order Code US and Canada | T8VFF4JC000000XX |
| EAN | 8015644687076 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 553 mm |
| Product Net Height | 382 mm |
| Product Net Depth / Length | 282 mm |
| Product Net Weight | 15 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 650 mm |
| Package Level 1 Height | 665 mm |
| Package Level 1 Depth / Length | 695 mm |
| Package Level 1 Gross Weight | 16.5 kg |
| Package Level 1 EAN | 8015644687076 |
| Additional Information | |
| Product Main Type | SACE Tmax T |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| Technical | |
| Electrical Durability | 3000 cycle |
| 20 cycles per hour | |
| Mechanical Durability | 15000 cycle |
| 60 cycles per hour | |
| Number of Poles | 4P |
| Power Loss | at Rated Operating Conditions per Pole 117 W |
| Rated Current (In) | 3200 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 100 kA |
| (230 V AC) 100 kA | |
| (380 V AC) 100 kA | |
| (400 V AC) 100 kA | |
| (415 V AC) 100 kA | |
| (440 V AC) 100 kA | |
| (500 V AC) 75 kA | |
| (690 V AC) 60 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 40 A |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 1.3 kA |
| (230 V AC) 1.3 kA | |
| (380 V AC) 130 kA | |
| (400 V AC) 130 kA | |
| (415 V AC) 130 kA | |
| (440 V AC) 130 kA | |
| (500 V AC) 100 kA | |
| (690 V AC) 80 kA | |
| Rated Uninterrupted Current (Iu) | 3200 A |
| Release | PR232/P-LSI |
| Release Type | EL |
| Short-Circuit Performance Level | V |
| Standards | IEC |
| Sub-type | T8 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Rear flat Vertical | |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210023D0201 |
| Declaration of Conformity - CE | 9AKK106713A5533 |
| EU Data Act Compliance Declaration | 1SDH002560A1001 |
| Wiring Diagram | 1SDM000061R0001 |
| Instructions and Manuals | 1SDC210033D0202 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| IDEA Granular Category Code (IGCC) | 4934 >> 4 Pole Non-Interchangeable Trip Electronic Circuit Breakers |
| Object Classification Code | Q |
| UNSPSC | 39121616 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
