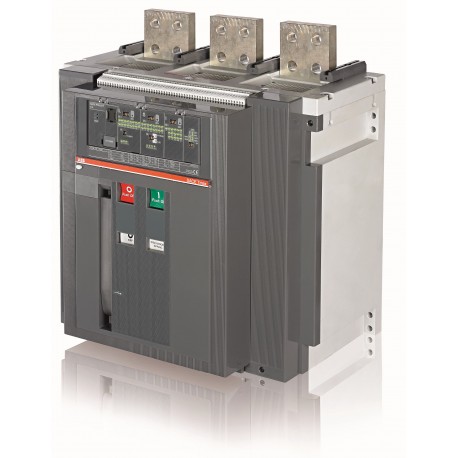

ABB 1SDA065780R1 1SDA065780R1 ABB T8V 2500 PR331/P LSI In 2500A 3p F F View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA065780R1 ABB T8V 2500 PR331/P LSI In 2500A 3p F F

1SDA065780R1

065780

ABB

1 Pcs.

T8V 2500 PR331/P LSI In=2500A 3p F F T8V2500 PR331/P LSI 3P F F

Automation > Power circuit-breaker for trafo/generator/installation protection
T8 and Accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIP11332dfd-f13b-4470-9895-fbd19dce846d Italy
Simplified SCIPa7bf8cfd-c4e8-40ae-87a2-8b3800edd502 Belgium
670f3a29-ea12-4343-b089-6a441142c580 Denmark
e375241b-bc3f-43a1-bbb7-db2aee1dfdff Sweden
ffba0460-e549-489d-82e1-6ccb51ac9f90 France
a459cf12-8e1d-494f-8c3d-8dc959fc2a4b Germany
18802050-feb5-47d7-862d-bd92ea3a70a9 Norway
12d6c872-d0b0-4661-b65a-d19e89390252 Poland
f1985319-e38b-4c6d-86ec-a94f7b2d2495 Poland
0bee11f3-0115-4458-969b-4b53513a148f Belgium
7783465e-1ae0-4e6c-b9ee-b78b58b0b77c Spain
a179a4f0-19c0-44fd-9487-aca01a63ad24 Sweden
a72fa7c7-e79c-4f06-877c-724400ca5cd1 Germany
3c70a7ff-3f3d-4fdd-9452-427346ddf212 France
baa869ad-938a-4675-b8b5-877fa4cf771c Hungary
6030ff42-ae9a-4409-b3be-2f1fe49f36a3 Netherlands
5eaa10cc-a5db-4e67-8db7-f839ec4a3d82 Croatia
027f40ca-dc00-4db4-88e6-12f2463f159a Czech Republic
e5935a3d-1adf-4b45-b4e9-3fba88e91d5e Greece
4dd06358-e6ca-417a-b81f-3ccc17805bd6 Bulgaria
429b4367-84a7-480d-8d02-111d490282a7 Portugal
c28ac241-cafd-4d76-ba10-a13843220816 Germany
ced11e21-d699-4ac3-b929-f66589c33d3f Finland
30353a8e-d650-4e6d-a9a3-05f8d5a48c99 Germany
1ba43af3-77d4-4b8d-916c-25d86b027b94 Germany
396c7831-ef45-45b8-be5b-ad534b916e5e Poland
Environmental
Environmental Information9AKK107046A3003
9AKK108467A6707
Ordering
Order Code US and CanadaT8VFE3HC000000XX
EAN8015644686918
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width427 mm
Product Net Height382 mm
Product Net Depth / Length282 mm
Product Net Weight9.7 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width525 mm
Package Level 1 Height475 mm
Package Level 1 Depth / Length695 mm
Package Level 1 Gross Weight11.2 kg
Package Level 1 EAN8015644686918
Additional Information
Product Main TypeSACE Tmax T
Product NameMoulded Case Circuit Breaker
Product TypeAutomatic Circuit Breaker
VersionF
Technical
Electrical Durability4000 cycle
20 cycles per hour
Mechanical Durability15000 cycle
60 cycles per hour
Number of Poles3P
Power Lossat Rated Operating Conditions per Pole 73 W
Rated Current (In)2500 A
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 100 kA
(230 V AC) 100 kA
(380 V AC) 100 kA
(400 V AC) 100 kA
(415 V AC) 100 kA
(440 V AC) 100 kA
(500 V AC) 75 kA
(690 V AC) 60 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 40 A
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 1.3 kA
(230 V AC) 1.3 kA
(380 V AC) 130 kA
(400 V AC) 130 kA
(415 V AC) 130 kA
(440 V AC) 130 kA
(500 V AC) 100 kA
(690 V AC) 80 kA
Rated Uninterrupted Current (Iu)2500 A
ReleasePR232/P-LSI
Release TypeEL
Short-Circuit Performance LevelV
StandardsIEC
Sub-typeT8
Terminal Connection TypeFixed Circuit-Breakers
Front
Certificates and Declarations
Data Sheet, Technical Information1SDC210023D0201
Declaration of Conformity - CE9AKK106713A5533
EU Data Act Compliance Declaration1SDH002560A1001
Wiring Diagram1SDM000061R0001
Instructions and Manuals1SDC210033D0202
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
IDEA Granular Category Code (IGCC)4932 >> 3 Pole Non-Interchangeable Trip Electronic Circuit Breakers
Object Classification CodeQ
UNSPSC39121616
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
