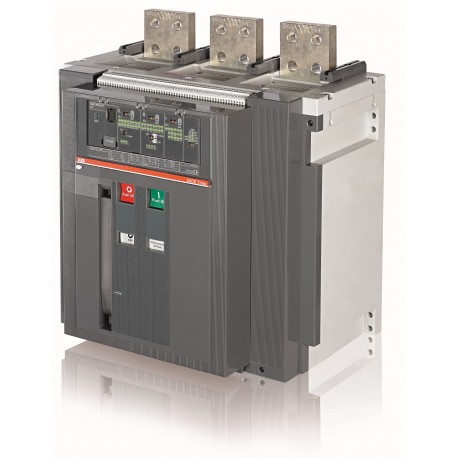

ABB 1SDA065769R1 1SDA065769R1 ABB T8V 2000 PR331/P LSI In 2000A 3p F F View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA065769R1 ABB T8V 2000 PR331/P LSI In 2000A 3p F F

1SDA065769R1

065769

ABB

1 Pcs.

T8V 2000 PR331/P LSI In=2000A 3p F F T8V2000 PR331/P LSI 3P F F

Automation > Power circuit-breaker for trafo/generator/installation protection
T8 and Accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Abb T8V 2000 PR331/P LSI In 2000A 3p F F is an air circuit breaker designed to protect heavy-duty electrical distribution systems from overloads and short circuits. Industrial facilities rely on these high-capacity switching devices to safely isolate sections of a plant network during fault conditions or routine maintenance.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • SCIP: f98739bd-e9bd-4406-b437-9a4571f5492f Italy
  • Simplified SCIP: eee1dfd7-931a-449e-bf86-04842f44ca35 Greece
  • Environmental Information: 9AKK107046A3003
  • Order Code US and Canada: T8VFD3GC000000XX
  • EAN: 8015644686802
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85362090
  • Product Net Width: 427 mm
  • Product Net Height: 382 mm
  • Product Net Depth / Length: 282 mm
  • Product Net Weight: 9.7 kg

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIPf98739bd-e9bd-4406-b437-9a4571f5492f Italy
Simplified SCIPeee1dfd7-931a-449e-bf86-04842f44ca35 Greece
864ed601-29cb-4747-bc87-00c6ed0915c9 Poland
7d32eaa8-95e2-4c6e-a420-6ed2d51bf788 Spain
148755ec-878a-4934-87be-a849fb7b3fbc Belgium
541b3004-48fc-4872-a0b5-fc385444111b Germany
98310efc-1de9-4f7f-bd0b-5bb0aa84d79e Finland
cb47b1a5-8e0f-4139-bfad-b672ad298e9c Norway
b43f9e5d-750a-4855-94c4-e5e5192127c8 Estonia
ed07d2f8-34a9-4b19-8c44-ee3e643bf590 Poland
7aa90c68-1798-4b0c-a37c-941380b57fd3 Germany
1007d6c9-56d4-4753-aa0a-71886450ba96 Netherlands
0e441fc5-fc8c-4916-bbc1-eb277e92fb93 Belgium
64841914-f340-4486-afe7-0c697a8a52ce Bulgaria
0451781d-7dc5-41c8-9a39-d277d46bb388 France
6644c1df-213c-433e-bb03-946d066545cd Croatia
98ac3f76-bc82-46fa-b47e-540abeabe392 Germany
725ce1cd-c1d4-4ad6-a699-488e32a603e4 Czech Republic
648ae4b2-7be4-4143-bb9e-6ffc6bf75ef3 Sweden
9960fd69-cc76-4024-b1ff-3caf18ec4e74 France
58fedb38-4395-4bbc-85dc-2aa581885793 Poland
e70dfad9-d8eb-40be-bb23-4bcd465c9f31 Sweden
d5512b09-f189-4eac-9a08-b726b2f324cc Germany
c3ee9d05-0a17-41ce-98aa-eb73e076aecb Germany
340eb98c-d1f3-4ad2-8afd-3b541c72755c Portugal
88f82310-c704-478a-9a43-8c154a172aec Hungary
9636b86c-70a1-4a7d-8240-9c004cb2e01e Denmark
ee5734e7-3236-4486-b184-f52d88437b31 Hungary
Environmental
Environmental Information9AKK107046A3003
9AKK108467A6707
Ordering
Order Code US and CanadaT8VFD3GC000000XX
EAN8015644686802
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width427 mm
Product Net Height382 mm
Product Net Depth / Length282 mm
Product Net Weight9.7 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width525 mm
Package Level 1 Height475 mm
Package Level 1 Depth / Length695 mm
Package Level 1 Gross Weight11.2 kg
Package Level 1 EAN8015644686802
Additional Information
Product Main TypeSACE Tmax T
Product NameMoulded Case Circuit Breaker
Product TypeAutomatic Circuit Breaker
VersionF
Technical
Electrical Durability4500 cycle
20 cycles per hour
Mechanical Durability15000 cycle
60 cycles per hour
Number of Poles3P
Power Lossat Rated Operating Conditions per Pole 46 W
Rated Current (In)2000 A
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 100 kA
(230 V AC) 100 kA
(380 V AC) 100 kA
(400 V AC) 100 kA
(415 V AC) 100 kA
(440 V AC) 100 kA
(500 V AC) 75 kA
(690 V AC) 60 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 40 A
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 1.3 kA
(230 V AC) 1.3 kA
(380 V AC) 130 kA
(400 V AC) 130 kA
(415 V AC) 130 kA
(440 V AC) 130 kA
(500 V AC) 100 kA
(690 V AC) 80 kA
Rated Uninterrupted Current (Iu)2000 A
ReleasePR232/P-LSI
Release TypeEL
Short-Circuit Performance LevelV
StandardsIEC
Sub-typeT8
Terminal Connection TypeFixed Circuit-Breakers
Front
Certificates and Declarations
Data Sheet, Technical Information1SDC210023D0201
Declaration of Conformity - CE9AKK106713A5533
EU Data Act Compliance Declaration1SDH002560A1001
Wiring Diagram1SDM000061R0001
Instructions and Manuals1SDC210033D0202
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
IDEA Granular Category Code (IGCC)4932 >> 3 Pole Non-Interchangeable Trip Electronic Circuit Breakers
Object Classification CodeQ
UNSPSC39121616
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
