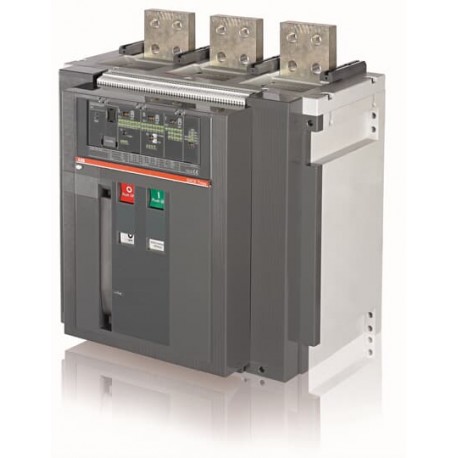

1SDA065734R1 ABB T8L 3200 PR331/P LSI In 3200A 3p F VR

1SDA065734R1

065734

ABB

1 Pcs.

T8L 3200 PR331/P LSI In=3200A 3p F VR T8L3200 PR331/P LSI 3P F F

Automation > Power circuit-breaker for trafo/generator/installation protection
T8 and Accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIPdb2031c8-2853-4efa-8807-ab758c431566 Italy
Simplified SCIPbfd1ad5c-a3b6-48ac-9dd8-86b3a0b9f2e4 Estonia
3bc0ca5b-3583-41e3-8427-ad3e12f4a642 Poland
7f3d28de-ef2b-48f9-9036-4a6b59d37082 Netherlands
656dc445-bfe3-4bbb-9052-484df1aff54b Germany
65c2542d-5a9e-49cd-bd6b-3d8738c2b43d Czech Republic
bf24e933-7485-4ec2-98eb-d955ed094ad2 Germany
f6142761-404d-4cac-ae37-08298a2e2b63 Denmark
5596e67d-56d6-4c53-bbfe-0fb2673de591 Croatia
cfe2cd0c-674e-4f71-b000-2b26ead497eb Bulgaria
d9cf884c-c1d1-4d58-acc6-e3637d970df7 Belgium
1b129249-0981-4cdc-a822-08682c3cba00 Hungary
f3200e19-d6bf-42b5-b87d-c48a506deb51 Germany
61b00cc3-8623-4822-9fdc-1da2eb274828 France
9c1f5a23-dddb-4d14-ae5e-0db0aba48918 France
7e78e95f-d411-4fed-8171-2982ee7fb86d Sweden
ba2a9f63-4b1a-4ff7-8949-f4ace367abdb Germany
6441b05c-23e9-414a-9bc9-8758559ad547 Sweden
d0e8e042-1d83-473c-b2a1-a52bfe53f9d1 Portugal
d7244f4e-be3b-4407-a686-9828e89d5efb Poland
6dc7bcc7-1344-422c-8d89-9ba16e8728fe Greece
e9d5527f-7820-4c73-99f1-8d7a72fa49d2 Hungary
bace73cb-f2b6-4d6b-af87-aa01dc6d7a17 Finland
78af6b07-e04c-46e2-aedc-335fcb8c2964 Norway
37a3df1e-43d1-4d76-a7c6-ff625492f1b9 Germany
0b364162-b04c-4967-8be9-011ecd80f0a8 Spain
98770a9f-b1ad-4ebf-bc30-25baa5c8e3de Belgium
dc93d005-8d8a-4a3d-be7d-17c4b28303a0 Poland
Environmental
Environmental Information9AKK107046A3003
9AKK108467A6707
Ordering
Order Code US and CanadaT8LFF3JC000000XX
EAN8015644686413
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width427 mm
Product Net Height382 mm
Product Net Depth / Length282 mm
Product Net Weight94 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width525 mm
Package Level 1 Height665 mm
Package Level 1 Depth / Length695 mm
Package Level 1 Gross Weight109 kg
Package Level 1 EAN8015644686413
Additional Information
Product Main TypeSACE Tmax T
Product NameMoulded Case Circuit Breaker
Product TypeAutomatic Circuit Breaker
VersionF
Technical
Electrical Durability3000 cycle
20 cycles per hour
Mechanical Durability15000 cycle
60 cycles per hour
Number of Poles3P
Power Lossat Rated Operating Conditions per Pole 117 W
Rated Current (In)3200 A
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 85 kA
(230 V AC) 85 kA
(380 V AC) 85 kA
(400 V AC) 85 kA
(415 V AC) 85 kA
(440 V AC) 85 kA
(500 V AC) 65 kA
(690 V AC) 50 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 40 A
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 85 kA
(230 V AC) 85 kA
(380 V AC) 85 kA
(400 V AC) 85 kA
(415 V AC) 85 kA
(440 V AC) 85 kA
(500 V AC) 65 kA
(690 V AC) 50 kA
Rated Uninterrupted Current (Iu)3200 A
ReleasePR232/P-LSI
Release TypeEL
Short-Circuit Performance LevelL
StandardsIEC
Sub-typeT8
Terminal Connection TypeFixed Circuit-Breakers
Rear flat Vertical
Certificates and Declarations
Data Sheet, Technical Information1SDC210023D0201
Declaration of Conformity - CE9AKK106713A5533
Wiring Diagram1SDM000061R0001
Instructions and Manuals1SDC210033D0202
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
IDEA Granular Category Code (IGCC)4932 >> 3 Pole Non-Interchangeable Trip Electronic Circuit Breakers
Object Classification CodeQ
UNSPSC39121616
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)
eClassV11.1 : 27370409

ETIM for 1SDA065734R1 Low-voltage industrial controls and switchgear (EC000228)
Feature Name Feature Value
Rated permanent current Iu (EF001389) 3200 A
Rated voltage (EF003977) 690 V
Integrated earth fault protection (EF007296) No
Type of electrical connection of main circuit (EF006819) Bolt connection
Device construction (EF008240) Built-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mounting (EF007250) No
DIN rail (top hat rail) mounting optional (EF008904) No
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
With switched-off indicator (EF007006) No
With integrated under voltage release (EF001390) No
Number of poles (EF001391) 3
Position of connection for main current circuit (EF006671) Front
Type of control element (EF006976) Toggle
Complete device with protection unit (EF008906) Yes
Motor drive integrated (EF006697) No
Motor drive optional (EF007386) Yes
Degree of protection (IP) (EF005474) IP20

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
