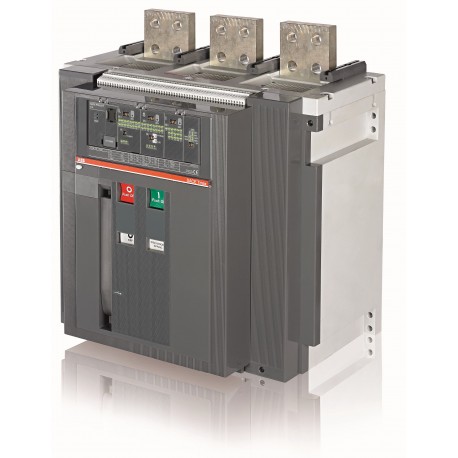

ABB 1SDA065723R1 1SDA065723R1 ABB T8L 2000 PR331/P LSI In 2000A 3p F F View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA065723R1 ABB T8L 2000 PR331/P LSI In 2000A 3p F F

1SDA065723R1

065723

ABB

1 Pcs.

T8L 2000 PR331/P LSI In=2000A 3p F F T8L2000 PR331/P LSI 3P F F

Automation > Power circuit-breaker for trafo/generator/installation protection
T8 and Accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIP8d69ac24-dc7f-4fc6-bd1e-52b761f09684 Italy
Simplified SCIPba3933f4-6c72-47f3-a601-38ab76aef9da Germany
75002bae-e088-43db-b56c-2b01b11c0380 Netherlands
e88df08e-c47d-458d-9514-a5e8db43deba Croatia
ea99f7be-992b-4646-a956-362b4fb3753d Belgium
2cd7f8ac-1cee-4c6f-b167-0ee43f9915c0 Bulgaria
9d552229-0e3d-494d-9491-3ec8bd529e48 France
5f18dacc-be9c-46ae-9e71-8f31c808619a Czech Republic
69f10364-f8ba-4371-8ea5-14f51eb5e72b Denmark
338f6cdf-e541-45e4-8c8a-c1e0fc3aae82 Germany
eeddfe23-14a5-4466-bc88-1a9717c9a878 Poland
c1112702-a4f7-499d-9746-11881e30ff87 Estonia
31c5cc1c-a164-403e-814b-86eafd31d817 Poland
6c6bbc19-0372-443e-ae60-cddd6ec73f13 Sweden
c5d2d34e-0d33-4441-bc35-016797ddab4e Portugal
05d79607-4fbc-47b7-89e6-b17a63ab5935 Hungary
bd5f24f0-b863-491b-b1b1-b98eeb0a3e5c France
6c03a4d9-9a52-433e-ad9a-51da6d0ca740 Germany
14b60b27-3f53-4abb-b7bb-61d2b4e8704d Sweden
37a851ae-60a2-4006-9892-dbac3d5bdc24 Germany
9dad48ac-2465-40dc-ae85-88d334cff4c4 Spain
bf2d2a29-2ba0-49e3-b5f0-cb18865b499d Belgium
6b8dfb48-be0e-4fdf-8e28-2df4ec3f5a91 Germany
d62b9952-f497-44e8-9e6b-c650aa9ad11e Greece
89a56a8d-9031-46b2-b632-b0e490704cc9 Hungary
8e843efe-85c6-46f9-a2a0-bb34b3e3ed87 Norway
f172a54d-e9c9-452e-8352-b2c7a3bdaf9c Poland
95efda9c-2ad9-4c63-80be-8ba845a8865d Finland
Environmental
Environmental Information9AKK107046A3003
9AKK108467A6707
Ordering
Order Code US and CanadaT8LFD3GC000000XX
EAN8015644686307
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width427 mm
Product Net Height382 mm
Product Net Depth / Length282 mm
Product Net Weight9.7 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width525 mm
Package Level 1 Height475 mm
Package Level 1 Depth / Length695 mm
Package Level 1 Gross Weight11.2 kg
Package Level 1 EAN8015644686307
Additional Information
Product Main TypeSACE Tmax T
Product NameMoulded Case Circuit Breaker
Product TypeAutomatic Circuit Breaker
VersionF
Technical
Electrical Durability4500 cycle
20 cycles per hour
Mechanical Durability15000 cycle
60 cycles per hour
Number of Poles3P
Power Lossat Rated Operating Conditions per Pole 46 W
Rated Current (In)2000 A
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 85 kA
(230 V AC) 85 kA
(380 V AC) 85 kA
(400 V AC) 85 kA
(415 V AC) 85 kA
(440 V AC) 85 kA
(500 V AC) 65 kA
(690 V AC) 50 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 40 A
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 85 kA
(230 V AC) 85 kA
(380 V AC) 85 kA
(400 V AC) 85 kA
(415 V AC) 85 kA
(440 V AC) 85 kA
(500 V AC) 65 kA
(690 V AC) 50 kA
Rated Uninterrupted Current (Iu)2000 A
ReleasePR232/P-LSI
Release TypeEL
Short-Circuit Performance LevelL
StandardsIEC
Sub-typeT8
Terminal Connection TypeFixed Circuit-Breakers
Front
Certificates and Declarations
Data Sheet, Technical Information1SDC210023D0201
Declaration of Conformity - CE9AKK106713A5533
EU Data Act Compliance Declaration1SDH002560A1001
Wiring Diagram1SDM000061R0001
Instructions and Manuals1SDC210033D0202
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
IDEA Granular Category Code (IGCC)4932 >> 3 Pole Non-Interchangeable Trip Electronic Circuit Breakers
Object Classification CodeQ
UNSPSC39121616
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409
