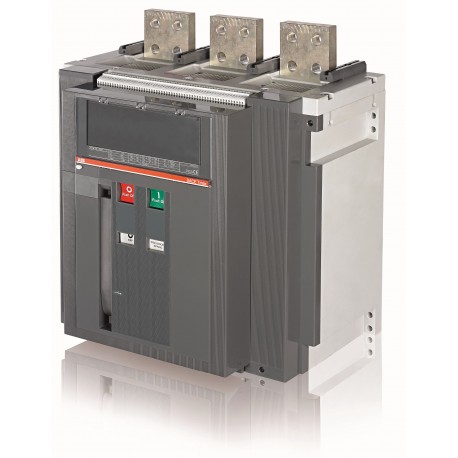

1SDA065756R1 ABB T8D 3200 3p F VR
1SDA065756R1
065756
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
T8 and Accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Abb 1SDA065756R1 T8D 3200 3p F VR is a high-capacity switch-disconnector used to safely isolate main electrical circuits during maintenance operations in industrial power systems. Disconnect switches provide a visible and reliable break point in heavy-duty distribution networks. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Information: 9AKK107046A3003
- EAN: 8015644686673
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 427 mm
- Product Net Height: 382 mm
- Product Net Depth / Length: 282 mm
- Product Net Weight: 100 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 525 mm
- Package Level 1 Height: 665 mm
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK107046A3003 |
| 9AKK108467A6707 | |
| Ordering | |
| EAN | 8015644686673 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 427 mm |
| Product Net Height | 382 mm |
| Product Net Depth / Length | 282 mm |
| Product Net Weight | 100 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 525 mm |
| Package Level 1 Height | 665 mm |
| Package Level 1 Depth / Length | 695 mm |
| Package Level 1 Gross Weight | 108 kg |
| Package Level 1 EAN | 8015644686673 |
| Additional Information | |
| Product Main Type | SACE Tmax T |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Switch Disconnector |
| Version | F |
| Technical | |
| Electrical Durability | 3000 cycle |
| 20 cycles per hour | |
| Mechanical Durability | 15000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | at Rated Operating Conditions per Pole 117 W |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 40 A |
| Rated Uninterrupted Current (Iu) | 3200 A |
| Short-Circuit Performance Level | D |
| Standards | IEC |
| Sub-type | T8 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Rear flat Vertical | |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210023D0201 |
| Declaration of Conformity - CE | 9AKK106713A5533 |
| Instructions and Manuals | 1SDC210033D0202 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
