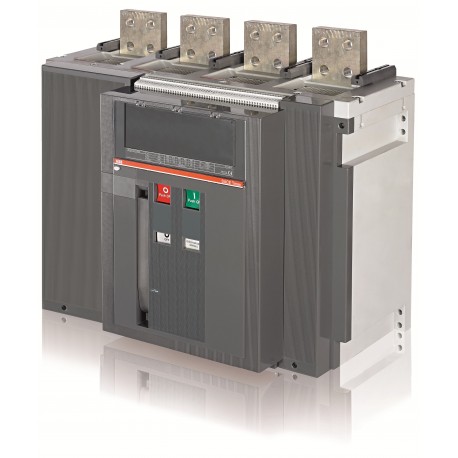

1SDA065755R1 ABB T8D 2500 4p F F
1SDA065755R1
065755
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
T8 and Accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Abb 1SDA065755R1 is a multi-pole circuit breaker component designed for reliable isolation and fault current interruption in commercial and industrial electrical switchboards. Circuit breakers of this class protect wiring and connected machinery from overloads and short circuits by automatically cutting power during faults.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Information: 9AKK107046A3003
- EAN: 8015644686666
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 553 mm
- Product Net Height: 382 mm
- Product Net Depth / Length: 282 mm
- Product Net Weight: 12.5 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 650 mm
- Package Level 1 Height: 475 mm
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK107046A3003 |
| 9AKK108467A6707 | |
| Ordering | |
| EAN | 8015644686666 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 553 mm |
| Product Net Height | 382 mm |
| Product Net Depth / Length | 282 mm |
| Product Net Weight | 12.5 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 650 mm |
| Package Level 1 Height | 475 mm |
| Package Level 1 Depth / Length | 695 mm |
| Package Level 1 Gross Weight | 14 kg |
| Package Level 1 EAN | 8015644686666 |
| Additional Information | |
| Product Main Type | SACE Tmax T |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Switch Disconnector |
| Version | F |
| Technical | |
| Electrical Durability | 4000 cycle |
| 20 cycles per hour | |
| Mechanical Durability | 15000 cycle |
| 60 cycles per hour | |
| Number of Poles | 4P |
| Power Loss | at Rated Operating Conditions per Pole 73 W |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 40 A |
| Rated Uninterrupted Current (Iu) | 2500 A |
| Short-Circuit Performance Level | D |
| Standards | IEC |
| Sub-type | T8 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Front | |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210023D0201 |
| Declaration of Conformity - CE | 9AKK106713A5533 |
| Instructions and Manuals | 1SDC210033D0202 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
