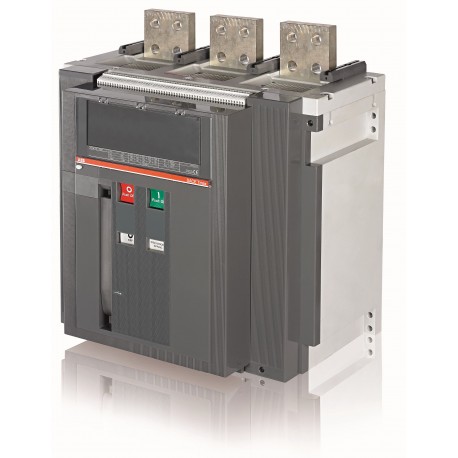

ABB 1SDA065754R1 1SDA065754R1 ABB T8D 2500 3p F F View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA065754R1 ABB T8D 2500 3p F F

1SDA065754R1

065754

ABB

1 Pcs.

T8D 2500 3p F F T8D2500 3P F F

Automation > Power circuit-breaker for trafo/generator/installation protection
T8 and Accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A heavy-duty circuit-breaker like this ABB 1SDA065754R1 T8D 2500 3p F F acts as a primary disconnecting and switching mechanism in major industrial power systems. It manages high-current loads safely to facilitate plant-wide maintenance and protect critical infrastructure from electrical overloads. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK107046A3003
  • EAN: 8015644686659
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85362090
  • Product Net Width: 427 mm
  • Product Net Height: 382 mm
  • Product Net Depth / Length: 282 mm
  • Product Net Weight: 9.7 kg
  • Package Level 1 Units: 1 piece
  • Package Level 1 Width: 525 mm
  • Package Level 1 Height: 475 mm

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK107046A3003
9AKK108467A6707
Ordering
EAN8015644686659
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width427 mm
Product Net Height382 mm
Product Net Depth / Length282 mm
Product Net Weight9.7 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width525 mm
Package Level 1 Height475 mm
Package Level 1 Depth / Length695 mm
Package Level 1 Gross Weight11.2 kg
Package Level 1 EAN8015644686659
Additional Information
Product Main TypeSACE Tmax T
Product NameMoulded Case Circuit Breaker
Product TypeSwitch Disconnector
VersionF
Technical
Electrical Durability4000 cycle
20 cycles per hour
Mechanical Durability15000 cycle
60 cycles per hour
Number of Poles3P
Power Lossat Rated Operating Conditions per Pole 73 W
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Voltage690 V AC
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 40 A
Rated Uninterrupted Current (Iu)2500 A
Short-Circuit Performance LevelD
StandardsIEC
Sub-typeT8
Terminal Connection TypeFixed Circuit-Breakers
Front
Certificates and Declarations
Data Sheet, Technical Information1SDC210023D0201
Declaration of Conformity - CE9AKK106713A5533
Instructions and Manuals1SDC210033D0202
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
