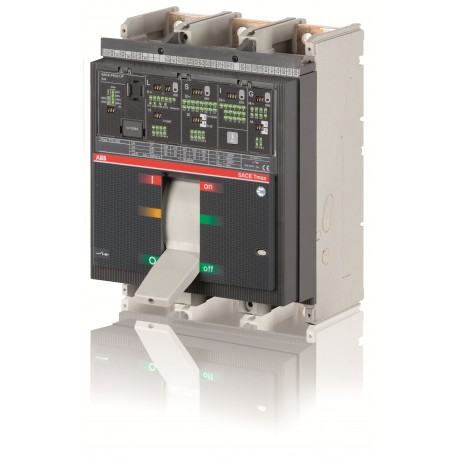

1SDA069446R1 ABB T7X800 PR331/P LSIG 3P F F

1SDA069446R1

069446

ABB

1 Pcs.

T7X800 PR331/P LSIG 3P F F T7X 800 PR331/P LSIG In=800A 3p F F

Automation > Power circuit-breaker for trafo/generator/installation protection
T7

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Protect major electrical installations from overloads and short circuits using the Abb 1SDA069446R1 circuit breaker. Heavy-duty protective devices are essential in industrial power distribution networks to manage high electrical currents and isolate faulty circuits.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK10103A1059
  • EAN: 8015644701260
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85362090
  • Product Net Width: 210 mm
  • Product Net Height: 268 mm
  • Product Net Depth / Length: 154 mm
  • Product Net Weight: 9.7 kg
  • Package Level 1 Units: box 1 piece
  • Package Level 1 Width: 280 mm
  • Package Level 1 Height: 350 mm

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK10103A1059
9AKK108467A6707
Ordering
EAN8015644701260
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width210 mm
Product Net Height268 mm
Product Net Depth / Length154 mm
Product Net Weight9.7 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width280 mm
Package Level 1 Height350 mm
Package Level 1 Depth / Length360 mm
Package Level 1 Gross Weight11.2 kg
Package Level 1 EAN8015644701260
Additional Information
Product Main TypeSACE Tmax T
Product NameMoulded Case Circuit Breaker
Product TypeAutomatic Circuit Breaker
Suitable ForT7
Suitable for Product ClassMoulded Case Circuit Breakers
VersionF
Technical
Electrical Durability3000 cycle
60 cycles per hour
Mechanical Durability10000 cycle
60 cycles per hour
Number of Poles3P
Power Lossat Rated Operating Conditions per Pole 32 W
Rated Current (In)800 A
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 170 kA
(230 V AC) 170 kA
(380 V AC) 170 kA
(400 V AC) 170 kA
(415 V AC) 170 kA
(440 V AC) 170 kA
(500 V AC) 170 kA
(690 V AC) 75 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 170 kA
(230 V AC) 170 kA
(380 V AC) 170 kA
(400 V AC) 170 kA
(415 V AC) 170 kA
(440 V AC) 170 kA
(500 V AC) 170 kA
(690 V AC) 75 kA
Rated Uninterrupted Current (Iu)800 A
ReleasePR331/P LSIG
Release TypeEL
Short-Circuit Performance LevelX
StandardsIEC
Sub-typeT7
Terminal Connection TypeFixed Circuit-Breakers
Front
Certificates and Declarations
Data Sheet, Technical Information9AKK105713A5946
Declaration of Conformity - CE9AKK106713A5537
EU Data Act Compliance Declaration1SDH002560A1001
Wiring Diagram1SDM000051R0001
Instructions and Manuals1SDC210033D0202
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
