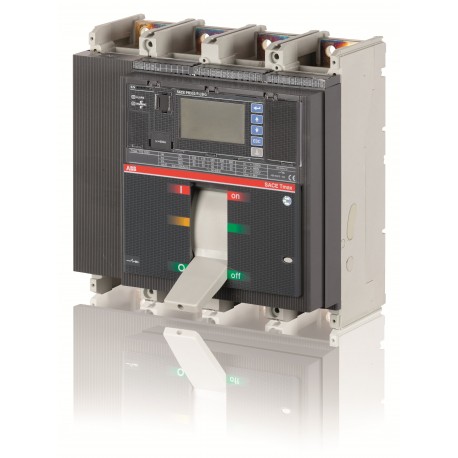

1SDA062718R1 ABB T7V 800 PR332/P LSI In 800A 4p F F
1SDA062718R1
062718
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
T7
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 1SDA062718R1 ABB T7V 800 PR332/P LSI In 800A 4p F F is an air circuit breaker engineered to protect heavy-duty electrical infrastructure against severe overloads and short circuits. Systems utilize these robust protective devices to safeguard main distribution boards and large industrial machinery from fault currents, ensuring continuous operational safety. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
