View larger
Images are for illustrative purposes only. Please refer to data sheet for details

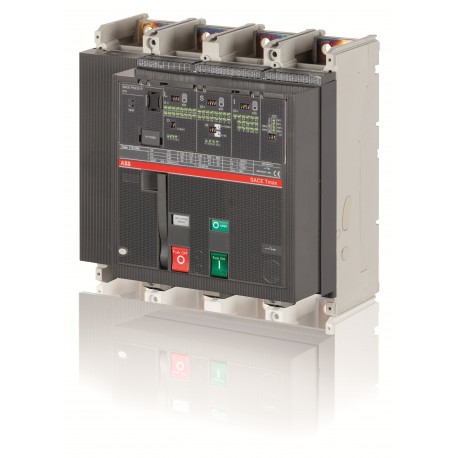

1SDA062891R1 ABB T7S 1250 PR232/P LSI In 1250A 4p F F M
1SDA062891R1
062891
ABB
1 Pcs.
T7S 1250 PR232/P LSI In=1250A 4p F F M
T7S1250 PR232/P LSI 4P F F M
Automation > Power circuit-breaker for trafo/generator/installation protection
T7
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | e607b781-c0af-4808-b084-54c5805cc73d Italy |
| Simplified SCIP | 4dd5af45-c3cf-4747-a0b2-a5b4189ecbb4 Germany |
| 25097c42-3410-49ec-8541-051890bc4615 Germany | |
| dc0a417d-626a-4b93-abd2-63a6e92da62f Germany | |
| 722649b7-b961-4ec4-8290-eb2e2d7b4f0e Portugal | |
| f76de9a4-ad90-481b-8384-4c8aa4b6cded Bulgaria | |
| 5151b6d7-4157-4896-a14a-9830f14bf6ea Poland | |
| d69da3e8-0988-46c5-b4dd-afae02a91f5c Netherlands | |
| 8f16aded-c0c1-4062-82d7-6985e39370b9 Denmark | |
| b0d63b79-6d32-4179-bbbd-0a5569e9f289 Czech Republic | |
| 909446c8-1eff-43c0-af47-cd56381ab545 France | |
| 17aeb6ca-f6dd-434a-984e-6611510cd075 Netherlands | |
| 25e89a82-290b-488e-95d2-47c503e61d68 Estonia | |
| 09ac8cb5-0f2a-4c38-b66b-e465a23b4abc Greece | |
| 65887a82-d553-43d0-8f74-2035db031d35 Poland | |
| 70e4a48e-19ff-4e90-8f4b-df1f6376b545 Croatia | |
| 2bd1ec33-6005-4971-9511-f098470cdcbf France | |
| 5dfe75e0-d3d4-41bf-8802-7f271a1c5d3c Netherlands | |
| a2cb1338-377e-40fa-b088-eb6d99f8ccbd Spain | |
| 91a6833b-6361-4afe-9038-7718abd44c19 Netherlands | |
| faa08589-a286-4cd5-a948-11435d83d9f9 Sweden | |
| 55555114-1ccd-47b2-8f59-aff061efa9ee Poland | |
| c6d63678-232e-4d56-af7c-f4a5ef9b8f75 Germany | |
| 27ac1216-0aa6-4e66-bb93-2eaa2671df29 Norway | |
| 7255bdec-f0c2-4f06-8541-329aa8593bdc Germany | |
| a5fa1493-09ea-4776-af17-4f410b81064c Sweden | |
| 666a6bb9-c3f0-4ab0-be97-82113c0e7328 Netherlands | |
| 47617bb3-fc43-4a5d-8296-be953418df70 Finland | |
| Environmental | |
| Environmental Information | 9AKK10103A1059 |
| 9AKK108467A6707 | |
| Ordering | |
| Order Code US and Canada | T7MSFB4AC000000XX |
| EAN | 8015644654405 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 280 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 178 mm |
| Product Net Weight | 14 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 360 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 360 mm |
| Package Level 1 Gross Weight | 15.5 kg |
| Package Level 1 EAN | 8015644654405 |
| Additional Information | |
| Product Main Type | SACE Tmax T |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Suitable For | T7M |
| Suitable for Product Class | Moulded Case Circuit Breakers |
| Version | F |
| Technical | |
| Electrical Durability | 2000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 10000 cycle |
| 60 cycles per hour | |
| Number of Poles | 4P |
| Power Loss | at Rated Operating Conditions per Pole 47 W |
| Rated Current (In) | 1250 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (400 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 40 kA | |
| (690 V AC) 30 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 20 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (400 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 40 kA | |
| (690 V AC) 30 kA | |
| Rated Uninterrupted Current (Iu) | 1250 A |
| Release | PR232/P-LSI |
| Release Type | EL |
| Short-Circuit Performance Level | S |
| Standards | IEC |
| Sub-type | T7 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Front | |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210015D0201 |
| Declaration of Conformity - CE | 9AKK106713A5537 |
| EU Data Act Compliance Declaration | 1SDH002560A1001 |
| GL Certificate | 1SDL000163R0055 |
| Instructions and Manuals | 1SDC210015D0201 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
