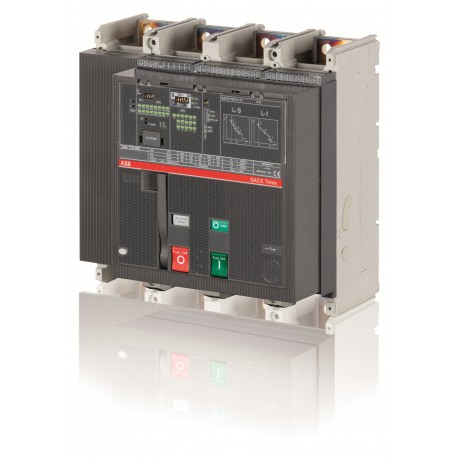

1SDA062890R1 ABB T7S 1250 PR231/P LS/I In 1250A 4p F F M
1SDA062890R1
062890
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
T7
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB molded case circuit breaker, part number 1SDA062890R1 T7S 1250 PR231/P LS/I In 1250A 4p F F M, provides heavy-duty fault interruption in industrial power systems. It safeguards large electrical panels and distribution networks from damaging overcurrent conditions. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: 53a3fbc2-558b-4edf-89b9-0ad046aa3502 Italy
- Simplified SCIP: ae71427b-aad2-4103-9f23-7b2ea2ac2f66 Germany
- Environmental Information: 9AKK10103A1059
- EAN: 8015644654399
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 280 mm
- Product Net Height: 268 mm
- Product Net Depth / Length: 178 mm
- Product Net Weight: 14 kg
- Package Level 1 Units: 1 piece
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 53a3fbc2-558b-4edf-89b9-0ad046aa3502 Italy |
| Simplified SCIP | ae71427b-aad2-4103-9f23-7b2ea2ac2f66 Germany |
| 4287c27a-b8bd-4e9c-a534-88b0784eb10b Finland | |
| 16598b54-e701-4cff-8515-1ff59dd7f2dc Portugal | |
| 3c78605a-0d63-4f6f-9d22-98f5d7f9becf Netherlands | |
| eb60cbe6-0cfd-41eb-b94c-dd937860353b Sweden | |
| f502b0d8-00ce-4d1c-945d-435a26d19469 France | |
| 526534f6-dc35-43f1-b52a-bcf3aed8ba1a Netherlands | |
| e730dad5-20e5-477e-8c6e-a1e704342bf0 Spain | |
| 153d6dd3-00e6-42e8-83f4-69a134131cec Netherlands | |
| 4fe16570-ce47-4e84-b7e3-40b5f2e691eb Poland | |
| 85b70c60-31ad-4300-a5d4-4e54b5649b67 Germany | |
| 2313dd54-b5ed-4115-92e4-5c37662e4bb9 Norway | |
| 585d6b2b-def4-439d-9eda-fe7c14b839b0 Netherlands | |
| cccc40d4-e34a-4433-a2c1-0501935d0811 Germany | |
| f20078a3-9ea0-45a6-8238-eebae4fdb7d9 Croatia | |
| 8b2e51b5-e2ea-4df6-879b-c16eaa725c1b Estonia | |
| b2134c72-cb83-442d-9962-b58e1f4607f8 Greece | |
| f1e5f7bc-db5a-493b-91e3-1553193dd817 Poland | |
| 9146630f-86e6-4fee-a157-ac26772ca93c Germany | |
| a190771c-7b97-432f-a608-d7d882d20779 Germany | |
| 575b0597-81fc-45d5-8a1e-40ba48f0373d Denmark | |
| 71733606-1e50-48d9-931a-1781c430c988 Czech Republic | |
| 6182a43f-3dc3-4a88-89c3-89100046c2b1 Poland | |
| 3ee88376-b8ec-4718-a808-8d53f9c1ca8f Netherlands | |
| 4079b6e9-02d7-457f-b43f-15cf423e3f3f Bulgaria | |
| 1846d594-0071-4285-b808-a8c3d616ed71 Sweden | |
| 55db04a9-801f-4cf4-a297-91aa9232d2db France | |
| Environmental | |
| Environmental Information | 9AKK10103A1059 |
| 9AKK108467A6707 | |
| Ordering | |
| EAN | 8015644654399 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 280 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 178 mm |
| Product Net Weight | 14 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 360 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 360 mm |
| Package Level 1 Gross Weight | 15.5 kg |
| Package Level 1 EAN | 8015644654399 |
| Additional Information | |
| Product Main Type | SACE Tmax T |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Suitable For | T7M |
| Suitable for Product Class | Moulded Case Circuit Breakers |
| Version | F |
| Technical | |
| Electrical Durability | 2000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 10000 cycle |
| 60 cycles per hour | |
| Number of Poles | 4P |
| Power Loss | at Rated Operating Conditions per Pole 47 W |
| Rated Current (In) | 1250 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (400 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 40 kA | |
| (690 V AC) 30 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 20 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (400 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 40 kA | |
| (690 V AC) 30 kA | |
| Rated Uninterrupted Current (Iu) | 1250 A |
| Release | PR231/P-LS/I |
| Release Type | EL |
| Short-Circuit Performance Level | S |
| Standards | IEC |
| Sub-type | T7 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Front | |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210015D0201 |
| Declaration of Conformity - CE | 9AKK106713A5537 |
| EU Data Act Compliance Declaration | 1SDH002560A1001 |
| GL Certificate | 1SDL000163R0055 |
| Instructions and Manuals | 1SDC210015D0201 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
