ABB 1SDA062866R1 1SDA062866R1 ABB T7S 1250 PR231/P LS/I In 1250A 3p F F View larger
Images are for illustrative purposes only. Please refer to data sheet for details

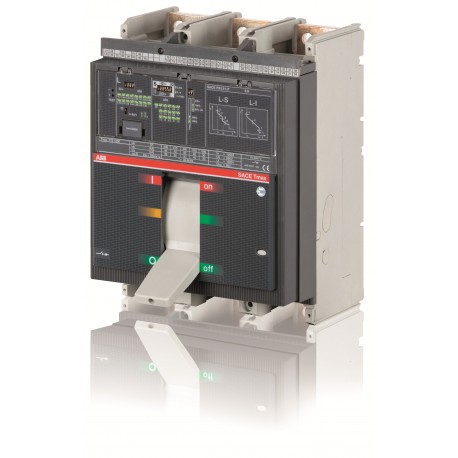

1SDA062866R1 ABB T7S 1250 PR231/P LS/I In 1250A 3p F F

1SDA062866R1

062866

ABB

1 Pcs.

T7S 1250 PR231/P LS/I In=1250A 3p F F T7S1250 PR231/P LS/I 3P F F

Automation > Power circuit-breaker for trafo/generator/installation protection
T7

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIPfc71b53e-e2a8-4c8a-9811-30e9a5cc9eb4 Italy
Simplified SCIPea0be1f5-8c22-44b2-931c-f84576f69f92 Germany
331327de-fd32-4b7c-9b2e-a15ae49793c5 France
a457ebac-ffd8-4dd5-92a6-738c020e57f9 Netherlands
b6f48c2c-cf0f-4c63-bc9d-817a0a86d199 Netherlands
092c447c-4953-4950-9b40-b18076bfb210 Estonia
3ccfb275-2a59-478e-af04-991f3976ee0c Greece
51a14937-c0de-4559-a029-30cfbfdcff02 Germany
2c2fa320-e646-4093-9543-1f4a0a6f2895 Germany
ef94f833-e502-4d83-9064-116dfe7d228c Croatia
12fab868-1154-4fbc-92bc-9e04031fa7c4 Spain
3f126734-41ad-4338-8eba-7c5874bcf95d Netherlands
27b1726d-9e8b-4b5e-a9e3-4ee64797b126 Poland
e9a1c704-2f57-44bd-b3e7-92889dc1177c Germany
cde874aa-9208-42e9-a38d-aa51a364542c Norway
cb0930cd-a79f-4ac4-9ca5-80aaaee16a1e Bulgaria
1dcd415c-cc1b-45b7-a54b-10d7056834ad Poland
c852cb84-9927-4cbe-8c15-e1314663b451 Netherlands
baa527af-d283-4a4e-a1ca-e38770456b44 Denmark
8cd5b1ab-5157-4b98-a6b7-15e77fa719eb Czech Republic
f64b0e4d-99ec-49c9-aa86-0138f64e5186 Poland
a64cb8d2-2756-453e-9376-2aab47ee8cff France
a6da35ca-daa1-494a-90f6-5fe5bcd02a6d Sweden
3943f079-276f-4329-a7c5-c673667113b4 Sweden
38fcac1b-ad74-4965-92cc-0ab411a14751 Germany
e7519c80-78a2-4dec-a892-a44e484233ac Finland
f14b8b6c-ac12-4f50-bb5b-bed1c722a830 Portugal
3a193948-8a5f-4a0c-b4a4-c26affd09ce9 Netherlands
Environmental
Environmental Information9AKK10103A1059
9AKK108467A6707
Ordering
EAN8015644654153
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width210 mm
Product Net Height268 mm
Product Net Depth / Length154 mm
Product Net Weight14.369 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width280 mm
Package Level 1 Height350 mm
Package Level 1 Depth / Length360 mm
Package Level 1 Gross Weight15.5 kg
Package Level 1 EAN8015644654153
Additional Information
Product Main TypeSACE Tmax T
Product NameMoulded Case Circuit Breaker
Product TypeAutomatic Circuit Breaker
Suitable ForT7
Suitable for Product ClassMoulded Case Circuit Breakers
VersionF
Technical
Electrical Durability2000 cycle
60 cycles per hour
Mechanical Durability10000 cycle
60 cycles per hour
Number of Poles3P
Power Lossat Rated Operating Conditions per Pole 47 W
Rated Current (In)1250 A
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 85 kA
(230 V AC) 85 kA
(380 V AC) 50 kA
(400 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 40 kA
(690 V AC) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 20 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 85 kA
(230 V AC) 85 kA
(380 V AC) 50 kA
(400 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 40 kA
(690 V AC) 30 kA
Rated Uninterrupted Current (Iu)1250 A
ReleasePR231/P-LS/I
Release TypeEL
Short-Circuit Performance LevelS
StandardsIEC
Sub-typeT7
Terminal Connection TypeFixed Circuit-Breakers
Front
Certificates and Declarations
Data Sheet, Technical Information1SDC210015D0201
Declaration of Conformity - CE9AKK106713A5537
GL Certificate1SDL000163R0055
Instructions and Manuals1SDC210015D0201
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
UNSPSC39121100
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
