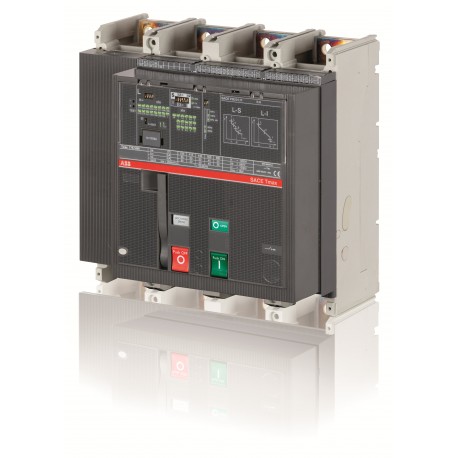

1SDA062762R1 ABB T7S 1000 PR231/P LS/I In 1000A 4p F F M

1SDA062762R1

062762

ABB

1 Pcs.

T7S 1000 PR231/P LS/I In=1000A 4p F F M T7S1000 PR231/P LS/I 4P F F M

Automation > Power circuit-breaker for trafo/generator/installation protection
T7

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIP857c5f03-41ae-4a5d-b9cd-9e3e946d3cac Italy
Simplified SCIP547764d1-7dfd-4775-bcd5-83988ccf2b10 Hungary
9b4a7b3c-69c5-4e5d-8d6c-e4c8213162c8 Poland
39944c7f-9b96-4fa7-a952-f5837316724e Germany
967a531e-52e6-49c6-8ec1-132ddb3ff06f Croatia
220ab326-c35f-4778-90a1-3a2fc46f529b Denmark
732691ca-d5c0-448e-a199-b4298cd8f217 Sweden
2dceec17-0ba5-411f-997c-35259c9d76a9 Germany
69b6f5b8-cceb-4bb7-8752-9e8ca35f428c Germany
42643ccb-61de-4c34-8676-a3ee1a7bd8ec Czech Republic
a4893ee9-9111-4a3b-b194-17d171084015 France
0c028dea-e517-4654-a5d4-8c128cb19818 Hungary
a02541c4-93d8-4d05-88cb-5c4699ca248e Belgium
29185527-353a-4158-9713-4681d1c8f770 Spain
653b0502-1033-474d-a704-fe023c6de648 Portugal
e8f30c31-74a6-45bf-92a5-9c123e73512c Poland
ad1deb24-1639-45f4-b79c-c8a685584128 Bulgaria
2be6004c-5a48-4285-971f-fdaec50428b9 Poland
638fb7ee-f4b2-4e53-b5c8-904391d42752 Germany
0f1c5d26-2c23-4ff9-9e19-6605dc64eefb Sweden
3dd4e41e-dfa8-4044-a9b6-398c79323b92 Netherlands
fd4ff008-fb01-4cfd-81cc-6a801393ec14 Norway
4ff85168-7e82-48a5-9fcb-381ffdfadce4 France
dd8a40cb-9e9b-4466-b198-dcb1c4f0e8b2 Germany
fef1a2d4-fbbf-40bf-a6fc-bd4b6bf97bea Greece
5fbfd89e-40d1-4a86-9b05-b0cb152f83b9 Belgium
f88e07a6-2fb2-4749-8363-70f9a47ad640 Estonia
26ce99a0-c2c2-459e-a1f6-ba7374cb83d5 Finland
Environmental
Environmental Information9AKK10103A1059
9AKK108467A6707
Ordering
EAN8015644653118
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width280 mm
Product Net Height268 mm
Product Net Depth / Length178 mm
Product Net Weight14 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width360 mm
Package Level 1 Height350 mm
Package Level 1 Depth / Length360 mm
Package Level 1 Gross Weight15.5 kg
Package Level 1 EAN8015644653118
Additional Information
Product Main TypeSACE Tmax T
Product NameMoulded Case Circuit Breaker
Product TypeAutomatic Circuit Breaker
Suitable ForT7M
Suitable for Product ClassMoulded Case Circuit Breakers
VersionF
Technical
Electrical Durability2000 cycle
60 cycles per hour
Mechanical Durability10000 cycle
60 cycles per hour
Number of Poles4P
Power Lossat Rated Operating Conditions per Pole 30 W
Rated Current (In)1000 A
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 85 kA
(230 V AC) 85 kA
(380 V AC) 50 kA
(400 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 40 kA
(690 V AC) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 20 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 85 kA
(230 V AC) 85 kA
(380 V AC) 50 kA
(400 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 40 kA
(690 V AC) 30 kA
Rated Uninterrupted Current (Iu)1000 A
ReleasePR231/P-LS/I
Release TypeEL
Short-Circuit Performance LevelS
StandardsIEC
Sub-typeT7
Terminal Connection TypeFixed Circuit-Breakers
Front
Certificates and Declarations
Data Sheet, Technical Information1SDC210015D0201
Declaration of Conformity - CE9AKK106713A5537
EU Data Act Compliance Declaration1SDH002560A1001
GL Certificate1SDL000163R0055
Instructions and Manuals1SDC210015D0201
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
UNSPSC39120000
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
