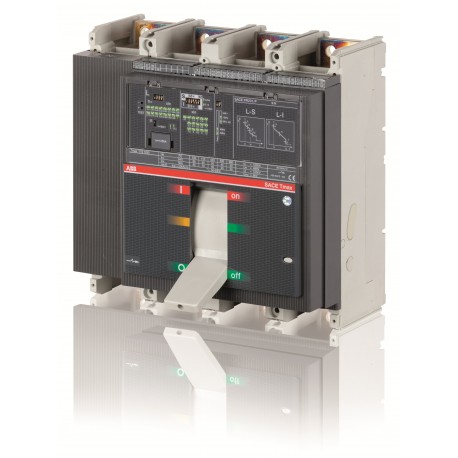

1SDA062746R1 ABB T7S 1000 PR231/P LS/I In 1000A 4p F F
1SDA062746R1
062746
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
T7
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This ABB T7S 1000 PR231/P LS/I In 1000A 4p F F molded case circuit breaker manages electrical power distribution by disconnecting faulty circuits and protecting loads. Industrial facilities integrate such equipment into main switchboards to maintain operational safety and continuity.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: 16e20ee0-58e0-4a01-8f08-cc9b33cbc7ff Italy
- Simplified SCIP: 079a6fed-e26c-4601-b632-df6681a2ae21 Germany
- Environmental Information: 9AKK10103A1059
- EAN: 8015644652951
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 280 mm
- Product Net Height: 268 mm
- Product Net Depth / Length: 154 mm
- Product Net Weight: 17.642 kg
- Package Level 1 Units: 1 piece
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 16e20ee0-58e0-4a01-8f08-cc9b33cbc7ff Italy |
| Simplified SCIP | 079a6fed-e26c-4601-b632-df6681a2ae21 Germany |
| b92dadc3-a972-4a3f-8c42-803a402dbac9 Norway | |
| b573e9d1-938c-42b7-9a89-ebc3d323a665 Netherlands | |
| 4c8a510b-e0fb-4257-a1ca-be2e52a6bd79 Poland | |
| 55b09e82-33c1-491e-a4f5-b5a65ab25b7f Finland | |
| 85228f6d-1a0d-43f9-ab76-4b6ffd8b706e Germany | |
| e05b3e6f-2280-481c-bba8-41ae2477d7ac Denmark | |
| 0565aa98-dfb0-4b66-9927-e289a6d6d288 Germany | |
| 4c043ebf-c3e3-4515-81b8-4c193b97e4d3 Czech Republic | |
| d87882e9-f3c7-4ae2-b610-51eecb14e6aa Poland | |
| b8e60669-21e9-4c4a-8511-802df820d394 Croatia | |
| 3e791f89-9e2b-4573-b39f-bcb3c5b5185f Netherlands | |
| c979f435-7e91-434a-8668-74d8a5c49e8f Netherlands | |
| c10565b6-c94a-4b5f-b056-7b89eee230bf Estonia | |
| 039c3224-e7ed-4814-a250-3596920d690f Greece | |
| f9f6aa91-6165-4b83-8609-6308f0509a8d Portugal | |
| 35cb2918-02be-4f31-8899-0e4f8a62a90f Bulgaria | |
| 2ed58e6e-8e8a-464e-8761-a80cb056dac2 Sweden | |
| f02c0888-b751-4928-b8e6-980e06c2988d Poland | |
| e53c473d-1d30-47f3-9f01-d8281f3a21ff France | |
| d46e90e8-3140-452a-8bb9-007c46e9d1ce Sweden | |
| 085fc99a-8c1e-48fb-896d-cb73da7de19d Germany | |
| 9b0b49d5-3d0c-4df4-a0d7-d604ac0aafd8 Germany | |
| 265af6c8-999c-4049-8122-72de43956929 France | |
| cd342c34-f019-4bb8-91f5-fb505c1932c8 Netherlands | |
| cda86c38-9437-4f13-aa66-852217df00ca Spain | |
| 79de8a94-45a6-4009-8fbd-6f2656a698b3 Netherlands | |
| Environmental | |
| Environmental Information | 9AKK10103A1059 |
| 9AKK108467A6707 | |
| Ordering | |
| EAN | 8015644652951 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 280 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 154 mm |
| Product Net Weight | 17.642 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 360 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 360 mm |
| Package Level 1 Gross Weight | 18.57 kg |
| Package Level 1 EAN | 8015644652951 |
| Additional Information | |
| Product Main Type | SACE Tmax T |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Suitable For | T7 |
| Suitable for Product Class | Moulded Case Circuit Breakers |
| Version | F |
| Technical | |
| Electrical Durability | 2000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 10000 cycle |
| 60 cycles per hour | |
| Number of Poles | 4P |
| Power Loss | at Rated Operating Conditions per Pole 30 W |
| Rated Current (In) | 1000 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (400 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 40 kA | |
| (690 V AC) 30 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 20 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (400 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 40 kA | |
| (690 V AC) 30 kA | |
| Rated Uninterrupted Current (Iu) | 1000 A |
| Release | PR231/P-LS/I |
| Release Type | EL |
| Short-Circuit Performance Level | S |
| Standards | IEC |
| Sub-type | T7 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Front | |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210015D0201 |
| Declaration of Conformity - CE | 9AKK106713A5537 |
| EU Data Act Compliance Declaration | 1SDH002560A1001 |
| GL Certificate | 1SDL000163R0055 |
| Instructions and Manuals | 1SDC210015D0201 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| UNSPSC | 39121100 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
