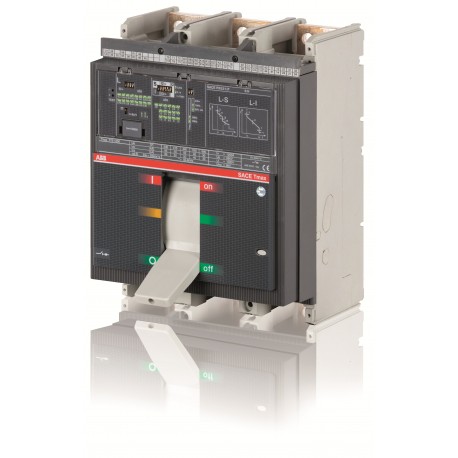

1SDA063057R1 ABB T7L 1600 PR231/P I In 1600A 3p F F
1SDA063057R1
063057
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
T7
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Abb 1SDA063057R1 is a high-performance molded case circuit breaker built to manage massive electrical loads and provide reliable fault protection in heavy industrial applications. These devices ensure that main power feeds are securely isolated and protected from damaging current overloads.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Information: 9AKK10103A1059
- REACH Declaration: 9AKK108466A1425
- RoHS Information: 9AKK108466A1424
- RoHS Status: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- EAN: 8015644656065
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 210 mm
- Product Net Height: 268 mm
- Product Net Depth / Length: 154 mm
- Product Net Weight: 9.7 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 280 mm
- Package Level 1 Height: 350 mm
More info
