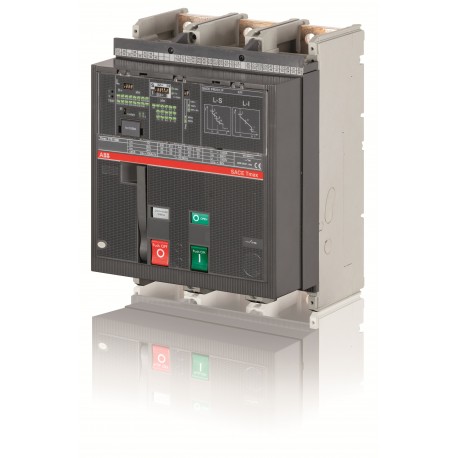

ABB 1SDA062946R1 1SDA062946R1 ABB T7L 1250 PR231/P LS/I In 1250A 3p F F M View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA062946R1 ABB T7L 1250 PR231/P LS/I In 1250A 3p F F M

1SDA062946R1

062946

ABB

1 Pcs.

T7L 1250 PR231/P LS/I In=1250A 3p F F M T7L1250 PR231/P LS/I 3P F F M

Automation > Power circuit-breaker for trafo/generator/installation protection
T7

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIP209e2007-6572-42a6-b9d5-fffa0d8a9230 Italy
Simplified SCIPea67b238-eda8-4bd7-9bd0-08b119458268 Germany
efdaed4e-0fd8-42dd-b277-5f3abead15b1 Netherlands
f061eea1-c64c-4403-98a8-3d8bce0f8f65 Croatia
b23f035b-f0ed-4df9-9707-4918eaa188d2 Finland
b12f41f5-4e96-4535-823c-1438c2fc0e7f Germany
b3672008-55b4-4b53-bfce-8127748c0144 Denmark
329b99b2-37a4-4e83-9ace-43b0216dcd37 Germany
2d6ce102-fbd1-4536-a614-18addeec167f Czech Republic
4ff2868e-f089-40bb-97ca-789a0dbf26c6 Poland
c23914a8-3563-4886-a7a4-f005c40c368e Netherlands
ed7ffd59-cc70-49b4-831d-a4a5c5c6bf2b Estonia
ccd34d47-9259-4bf1-938d-3d7742aa9dee Greece
1336c575-6aad-489c-9b94-6752e3848a82 Portugal
fc462a70-505f-450f-a65a-5969fb4ca177 Bulgaria
74aa2aab-16c5-4982-b8e3-a7cf3573aa3f Sweden
b90159e9-8854-4149-9cfe-7b801d208621 Poland
7c799908-a4c3-4edb-a3ce-463e871157de France
2f45d1e5-eb46-45fa-bad9-b50fcbca1a26 Sweden
6fddd896-7afa-48e5-a1b8-2fd6d3a56704 Germany
4f743c67-3766-477a-bc34-1fe3451249be Germany
a7c5b944-0764-4da1-b7ca-aaac656e17ac France
bad410dd-c4a5-4449-a536-9abd8d5a385c Netherlands
6795e395-98b2-4083-a899-aba8ca798673 Spain
952a877c-e92c-4d1e-aea5-0c665cde217e Netherlands
0e7c8623-bced-4964-9788-a78e205715e5 Poland
a1e26a3f-7778-4f3a-b351-2904a988db19 Norway
7e89e816-b88d-420e-b142-eb08b97ff2cb Netherlands
Environmental
Environmental Information9AKK10103A1059
9AKK108467A6707
Ordering
EAN8015644654955
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width210 mm
Product Net Height268 mm
Product Net Depth / Length178 mm
Product Net Weight11 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width280 mm
Package Level 1 Height350 mm
Package Level 1 Depth / Length360 mm
Package Level 1 Gross Weight12.5 kg
Package Level 1 EAN8015644654955
Additional Information
Product Main TypeSACE Tmax T
Product NameMoulded Case Circuit Breaker
Product TypeAutomatic Circuit Breaker
Suitable ForT7M
Suitable for Product ClassMoulded Case Circuit Breakers
VersionF
Technical
Electrical Durability2000 cycle
60 cycles per hour
Mechanical Durability10000 cycle
60 cycles per hour
Number of Poles3P
Power Lossat Rated Operating Conditions per Pole 47 W
Rated Current (In)1250 A
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 200 kA
(230 V AC) 200 kA
(380 V AC) 120 kA
(400 V AC) 120 kA
(415 V AC) 120 kA
(440 V AC) 100 kA
(500 V AC) 64 kA
(690 V AC) 37.5 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 20 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 200 kA
(230 V AC) 200 kA
(380 V AC) 120 kA
(400 V AC) 120 kA
(415 V AC) 120 kA
(440 V AC) 100 kA
(500 V AC) 85 kA
(690 V AC) 50 kA
Rated Uninterrupted Current (Iu)1250 A
ReleasePR231/P-LS/I
Release TypeEL
Short-Circuit Performance LevelL
StandardsIEC
Sub-typeT7
Terminal Connection TypeFixed Circuit-Breakers
Front
Certificates and Declarations
Data Sheet, Technical Information1SDC210015D0201
Declaration of Conformity - CE9AKK106713A5537
EU Data Act Compliance Declaration1SDH002560A1001
GL Certificate1SDL000163R0054
Instructions and Manuals1SDC210015D0201
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
UNSPSC39120000
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
