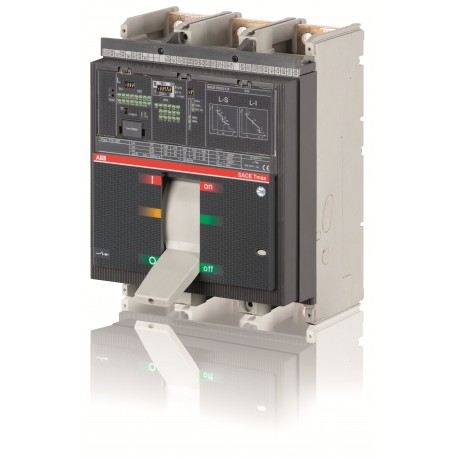

ABB 1SDA062930R1 1SDA062930R1 ABB T7L 1250 PR231/P LS/I In 1250A 3p F F View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA062930R1 ABB T7L 1250 PR231/P LS/I In 1250A 3p F F

1SDA062930R1

062930

ABB

1 Pcs.

T7L 1250 PR231/P LS/I In=1250A 3p F F T7L1250 PR231/P LS/I 3P F F

Automation > Power circuit-breaker for trafo/generator/installation protection
T7

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIP424fb832-63af-47e4-a103-9c46dba476c0 Italy
Simplified SCIP676f9abe-651c-459a-be01-7a945425b93e Spain
754efce2-e899-4f1b-aba9-d11562829083 Belgium
cc4b2d28-5e21-4fe2-a199-79710808c559 Hungary
da41b26d-d78b-4eb3-9d9f-7f1105e645de France
2d59930f-b50b-40c4-8b67-218b5898c3b5 Bulgaria
553c90db-b540-4b4c-b5c6-16f26ad4ab2d Germany
7d9f6f9f-d7e0-4962-9911-78ef3688e311 Sweden
4390cd8e-76f8-4afe-b78a-8e6b3831285a Germany
b4e2610d-f687-4e63-982e-dc990b807988 France
168dbfa5-e956-4852-90b9-c44745a3f17e Poland
50f1bc32-b338-474b-8259-512c8b4d75c1 Czech Republic
4ee27cba-5f96-4dbd-b484-3170867b6753 Denmark
aaa44aa0-46fc-4a3f-a09f-5e205c8fb289 Germany
a483e580-7385-4649-9715-6db25ee14b78 Greece
be82b042-ac5a-49ca-a0fd-ce3e16e0d2fe Portugal
ce087018-76b8-42a3-aa53-a763f2746fca Hungary
973becd6-154d-46fb-a942-698e55143c13 Estonia
7980d4ba-0b11-44cd-8cb4-6b2b8ba3d980 Croatia
bff8806b-94f2-4133-95dd-8dbe4a293abc Netherlands
9ae2bc51-852a-4fe7-b887-9a5f86d8f8d4 Poland
20e76c2d-5de4-4269-aea4-877496ec001c Sweden
e8970e08-70f2-476f-83eb-b5e3239199cc Poland
059307da-fe74-4928-a417-6427ec6e4023 Germany
2ee8d717-75c5-47cd-80fa-823eccee8f7d Norway
e8e2b4c7-9c00-438b-ab45-08afdf3477c4 Finland
dcf4b9eb-9bbc-4de6-965a-e8cab0d0989e Belgium
8b66763a-ec12-46a8-aca0-4f1945aa618c Germany
Environmental
Environmental Information9AKK10103A1059
9AKK108467A6707
Ordering
EAN8015644654795
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width210 mm
Product Net Height268 mm
Product Net Depth / Length154 mm
Product Net Weight12.5 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width280 mm
Package Level 1 Height350 mm
Package Level 1 Depth / Length360 mm
Package Level 1 Gross Weight11.2 kg
Package Level 1 EAN8015644654795
Additional Information
Product Main TypeSACE Tmax T
Product NameMoulded Case Circuit Breaker
Product TypeAutomatic Circuit Breaker
Suitable ForT7
Suitable for Product ClassMoulded Case Circuit Breakers
VersionF
Technical
Electrical Durability2000 cycle
60 cycles per hour
Mechanical Durability10000 cycle
60 cycles per hour
Number of Poles3P
Power Lossat Rated Operating Conditions per Pole 47 W
Rated Current (In)1250 A
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 200 kA
(230 V AC) 200 kA
(380 V AC) 120 kA
(400 V AC) 120 kA
(415 V AC) 120 kA
(440 V AC) 100 kA
(500 V AC) 64 kA
(690 V AC) 37.5 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 20 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 200 kA
(230 V AC) 200 kA
(380 V AC) 120 kA
(400 V AC) 120 kA
(415 V AC) 120 kA
(440 V AC) 100 kA
(500 V AC) 85 kA
(690 V AC) 50 kA
Rated Uninterrupted Current (Iu)1250 A
ReleasePR231/P-LS/I
Release TypeEL
Short-Circuit Performance LevelL
StandardsIEC
Sub-typeT7
Terminal Connection TypeFixed Circuit-Breakers
Front
Certificates and Declarations
Data Sheet, Technical Information1SDC210015D0201
Declaration of Conformity - CE9AKK106713A5537
EU Data Act Compliance Declaration1SDH002560A1001
GL Certificate1SDL000163R0054
Instructions and Manuals1SDC210015D0201
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
UNSPSC39121100
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409
