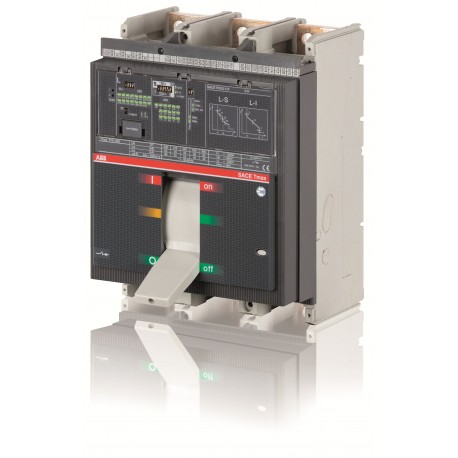

ABB 1SDA062897R1 1SDA062897R1 ABB T7H 1250 PR231/P I In 1250A 3p F F View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA062897R1 ABB T7H 1250 PR231/P I In 1250A 3p F F

1SDA062897R1

062897

ABB

1 Pcs.

T7H 1250 PR231/P I In=1250A 3p F F T7H1250 PR231/P I 3P F F

Automation > Power circuit-breaker for trafo/generator/installation protection
T7

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIP3e621310-1d40-4b47-a236-cae335d0f7ec Italy
Simplified SCIPc44bec66-7f39-401d-b8d2-a2592282c46f Germany
6a03fcf6-796c-48b6-b9b8-7781e4c585e5 Finland
24ba81c5-8c8a-4e1f-900b-c5d2dcef2caf Germany
2ed42847-fd9d-428f-bc7b-5b3c95b3ae48 Denmark
0fffdfcd-61d3-4b03-9369-066a61f895a5 Poland
a2ff2cdd-f7f4-41a1-bb36-8a1c0213366b Croatia
5f4834eb-c6d4-46ff-a91d-8667b084336d Netherlands
f3114e18-d398-46a2-a9ee-eb9c7382facd Estonia
c7a4451f-abd3-45a5-b027-dd2b525e85c5 Greece
82fbe619-40a5-428a-bf8f-c13775be773d Portugal
c80c29a9-cf45-4e1b-be4a-750c129743bb Bulgaria
fc10d938-42c0-42d1-8cbc-f68b669da735 Sweden
b1b7aa98-3766-456e-a090-d485792035f0 Poland
2015413c-9bde-4fe3-9b47-0da1a1c5b2a7 France
e8d11605-1a73-4361-8270-23ff5a825a35 Sweden
1be8f87b-3d92-4a68-8e5c-7332f192e2e8 Germany
427de604-9a19-4d3c-a326-d7c43a7f1ba7 Germany
f9ca64dd-db11-4742-aa0e-f6554636588b Netherlands
11ec261f-72bc-4aa0-b335-930cf1cb049d France
c54bd71e-48f5-468b-bc98-80923ca3bbd4 Netherlands
af0c6999-30b5-4dce-9918-dcc34669bbae Spain
434103ea-511e-409d-aa75-6699ff911202 Netherlands
3f1065e1-341c-4f90-a7d4-23b5678ed989 Norway
c9657c99-fbe0-4326-9e99-18d41a8d21a6 Germany
7b93c30a-34a1-457a-ba53-f6835a4bec9f Czech Republic
dc8fc7ae-40b2-4f66-967b-75e059774b1b Netherlands
c062c857-aa53-4cc4-86b7-3fb908a007b3 Poland
Environmental
Environmental Information9AKK10103A1059
9AKK108467A6707
Ordering
EAN8015644654467
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width210 mm
Product Net Height268 mm
Product Net Depth / Length154 mm
Product Net Weight9.7 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width280 mm
Package Level 1 Height350 mm
Package Level 1 Depth / Length360 mm
Package Level 1 Gross Weight11.2 kg
Package Level 1 EAN8015644654467
Additional Information
Product Main TypeSACE Tmax T
Product NameMoulded Case Circuit Breaker
Product TypeAutomatic Circuit Breaker
Suitable ForT7
Suitable for Product ClassMoulded Case Circuit Breakers
VersionF
Technical
Electrical Durability2000 cycle
60 cycles per hour
Mechanical Durability10000 cycle
60 cycles per hour
Number of Poles3P
Power Lossat Rated Operating Conditions per Pole 47 W
Rated Current (In)1250 A
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 100 kA
(230 V AC) 100 kA
(380 V AC) 70 kA
(400 V AC) 70 kA
(415 V AC) 70 kA
(440 V AC) 65 kA
(500 V AC) 50 kA
(690 V AC) 31.5 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 20 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 100 kA
(230 V AC) 100 kA
(380 V AC) 70 kA
(400 V AC) 70 kA
(415 V AC) 70 kA
(440 V AC) 65 kA
(500 V AC) 50 kA
(690 V AC) 42 kA
Rated Uninterrupted Current (Iu)1250 A
ReleasePR231/P-I
Release TypeEL
Short-Circuit Performance LevelH
StandardsIEC
Sub-typeT7
Terminal Connection TypeFixed Circuit-Breakers
Front
Certificates and Declarations
Data Sheet, Technical Information1SDC210015D0201
Declaration of Conformity - CE9AKK106713A5537
EU Data Act Compliance Declaration1SDH002560A1001
GL Certificate1SDL000163R0053
Instructions and Manuals1SDC210015D0201
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
UNSPSC39121100
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409
