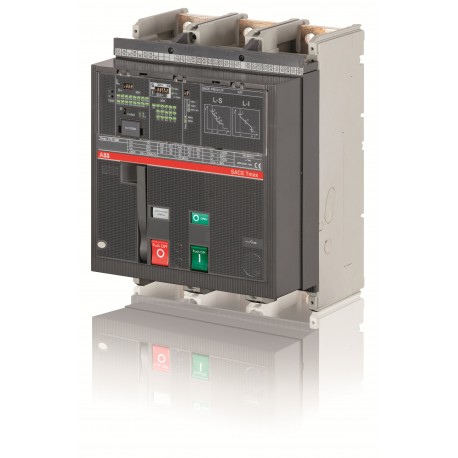

1SDA062786R1 ABB T7H 1000 PR231/P LS/I In 1000A 3p F F M
1SDA062786R1
062786
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
T7
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A heavy-duty circuit breaker like the ABB T7H 1000 PR231/P LS/I In 1000A 3p F F M is utilized within industrial electrical systems to protect heavy equipment and distribution lines from overloads and short circuits. These devices are mounted in switchgear panels to provide reliable current interruption. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: f85ecf77-9b9a-4df9-abc4-fa278a121686 Italy
- Simplified SCIP: d20e204a-bc54-4e88-80db-08397fd04ea9 Germany
- Environmental Information: 9AKK10103A1059
- EAN: 8015644653354
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 210 mm
- Product Net Height: 268 mm
- Product Net Depth / Length: 178 mm
- Product Net Weight: 11 kg
- Package Level 1 Units: 1 piece
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | f85ecf77-9b9a-4df9-abc4-fa278a121686 Italy |
| Simplified SCIP | d20e204a-bc54-4e88-80db-08397fd04ea9 Germany |
| 485e9e18-404c-4db4-a944-f97d60bda51b Croatia | |
| cc0a8902-6825-40b9-a8a8-614e07ff0e4e Netherlands | |
| 5b808c3c-675e-45df-873a-3b4dfade5293 Poland | |
| 682ba419-a113-4a89-9946-bdaa88f2b898 Germany | |
| 32a6e620-97bb-40e4-af7a-ff082cba8a5b Finland | |
| 16ba7884-e065-4d5a-b371-82547e12ff03 Denmark | |
| 8ed7df7c-f2b3-4161-b0ed-67b1aeb95fd7 Czech Republic | |
| ab666fbc-5cc7-4291-b5a7-abd6e39b734e Germany | |
| 2cbe0c6f-0ac2-4b19-ad01-4247839458dd Poland | |
| d49a9c1d-c574-40a9-8f79-9f7775c68021 Netherlands | |
| cbd0bdf5-87b7-44b5-ba46-d0a0796bc980 Sweden | |
| a6502af6-fa87-4795-8087-7162db7d6e10 France | |
| 233e132c-c11d-4b4d-adbf-4166bcd0f54f Poland | |
| 4921c1ce-c408-49a8-8496-31c60e853d3c Sweden | |
| 3f9a0b39-fac7-4bcb-9900-a79e3a6a7b94 Bulgaria | |
| c61fb834-97a3-49fd-b15d-239c4b48d0a1 Portugal | |
| 61c6f192-5a1e-4b4a-9af2-0827aea35135 Greece | |
| 3613aa7a-92e6-40d4-8228-dd57a7bebf89 Estonia | |
| 7b4848dd-e84d-4607-a3a1-03ba953b86d3 Germany | |
| 78f4b2e4-78d6-4b87-a714-035614ba6a86 Germany | |
| d505860d-dac7-4cd2-9577-270e9b1c5f44 Netherlands | |
| d849f159-9800-4037-9577-91c2a5af7368 Norway | |
| 374f63dd-39d3-47fe-a726-60f399b112a4 Netherlands | |
| 91463892-a29e-42b1-af64-889d6bd71d67 France | |
| eec24d11-8da6-4e79-80d3-fdeb2b1947b5 Spain | |
| 7eb1a151-defe-4e30-ab01-bf88fc4691d2 Netherlands | |
| Environmental | |
| Environmental Information | 9AKK10103A1059 |
| 9AKK108467A6707 | |
| Ordering | |
| EAN | 8015644653354 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 210 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 178 mm |
| Product Net Weight | 11 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 280 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 360 mm |
| Package Level 1 Gross Weight | 12.5 kg |
| Package Level 1 EAN | 8015644653354 |
| Additional Information | |
| Product Main Type | SACE Tmax T |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Suitable For | T7M |
| Suitable for Product Class | Moulded Case Circuit Breakers |
| Version | F |
| Technical | |
| Electrical Durability | 2000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 10000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | at Rated Operating Conditions per Pole 30 W |
| Rated Current (In) | 1000 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 100 kA |
| (230 V AC) 100 kA | |
| (380 V AC) 70 kA | |
| (400 V AC) 70 kA | |
| (415 V AC) 70 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 50 kA | |
| (690 V AC) 31.5 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 20 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 100 kA |
| (230 V AC) 100 kA | |
| (380 V AC) 70 kA | |
| (400 V AC) 70 kA | |
| (415 V AC) 70 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 50 kA | |
| (690 V AC) 42 kA | |
| Rated Uninterrupted Current (Iu) | 1000 A |
| Release | PR231/P-LS/I |
| Release Type | EL |
| Short-Circuit Performance Level | H |
| Standards | IEC |
| Sub-type | T7 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Front | |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210015D0201 |
| Declaration of Conformity - CE | 9AKK106713A5537 |
| EU Data Act Compliance Declaration | 1SDH002560A1001 |
| GL Certificate | 1SDL000163R0053 |
| Instructions and Manuals | 1SDC210015D0201 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
