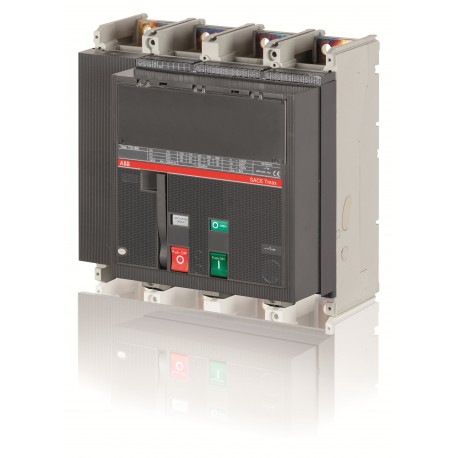

1SDA069829R1 ABB T7D1600 4P F F 1100VDC M PV
1SDA069829R1
069829
ABB
1 Pcs.
T7D1600 4P F F 1100VDC M PV
T7D/PV 1600 4p F F M 1100V DC
Connectors > Switch disconnector
Molded case "Isomax-Tmax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | d520a4d2-5de3-4a2f-9794-d24a903e5c61 Italy |
| Simplified SCIP | d11ca669-382f-434e-93bc-d56b047ed8a8 Germany |
| 0f0b733a-ad11-4812-a0ba-f202d28b19ea Netherlands | |
| 3045ba04-8b0c-472f-9f21-3af33d8925a6 Netherlands | |
| a6e043ff-eead-4cff-a6ac-567b0b2c6cf7 Estonia | |
| 0e4ce8e5-97b8-419f-ad74-3a0e32bf8c6a Greece | |
| f5c70c3a-6b20-4c78-b91f-6a5d94a28b27 Portugal | |
| e7326c0f-deb6-4f49-b600-6780939fc55f Sweden | |
| 9908a41a-a3df-4b5d-a2d6-be843386653f Poland | |
| 9bcfbfac-dd6b-45dc-9ec3-744d6b44a12c France | |
| eda7690f-19e5-497a-bcba-90245a265550 Bulgaria | |
| 6859f4da-1103-434f-a2cb-78343b7048e2 Sweden | |
| 090793e5-b74a-45d3-9fe5-0ca93ca3bdde Germany | |
| 78763c22-357f-460f-85f7-1974c070788f Germany | |
| 38cbd173-d91c-4e55-b8fb-731e46ecd0fd France | |
| 28cc24de-0180-495e-b840-1b63846ca4f3 Netherlands | |
| b3a8b922-628c-4830-a575-0c755bb7cb35 Spain | |
| f5f9392f-9540-4761-a5fd-0a103c3a4180 Netherlands | |
| a7948827-1399-4c92-9414-c9a8ba9f34e6 Poland | |
| dc2ca0a1-5a0c-43b3-8baf-00533af67322 Norway | |
| 6a913a59-3bed-4d40-b539-501dcc624d69 Finland | |
| 3f65b654-061e-4743-bc0e-8ef1c8c6a9d3 Netherlands | |
| 4cb658ff-89ba-4edb-ab6c-fb619dd9c2fb Germany | |
| 7d4b0333-1f7a-4deb-9c79-17664b20c13c Denmark | |
| fb11e4f7-74bf-46a1-b548-8d8a3a30500f Germany | |
| 135ca0bc-3678-452a-a984-2dd673d9d622 Croatia | |
| 55c05d86-72b1-479c-b7b2-e3d05ada97fb Czech Republic | |
| 32b0b628-19db-4f8d-ba72-99805e460356 Poland | |
| Environmental | |
| Environmental Information | 9AKK10103A1059 |
| 9AKK108467A6707 | |
| Ordering | |
| EAN | 8015644706111 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85352100 |
| Dimensions | |
| Product Net Width | 280 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 178 mm |
| Product Net Weight | 12.5 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 360 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 360 mm |
| Package Level 1 Gross Weight | 14 kg |
| Package Level 1 EAN | 8015644706111 |
| Additional Information | |
| Product Main Type | SACE Tmax T |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Switch Disconnector |
| Suitable For | T7M |
| Version | F |
| Technical | |
| Current Type | DC |
| Number of Poles | 4P |
| Power Loss | at Rated Operating Conditions per Pole 77 W |
| Rated Current (In) | 1600 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1100 V DC |
| Rated Operational Voltage | 1100 V DC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 19.2 kA |
| Rated Uninterrupted Current (Iu) | 1600 A |
| Rated Voltage (Ur) | 1100 V DC |
| Short-Circuit Performance Level | D |
| Standards | IEC |
| Sub-type | T7 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Front | |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210300D0201 |
| Declaration of Conformity - CE | 9AKK106713A9778 |
| Instructions and Manuals | 1SDH000789R0002 |
| External Classifications and Standards | |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371403 |
