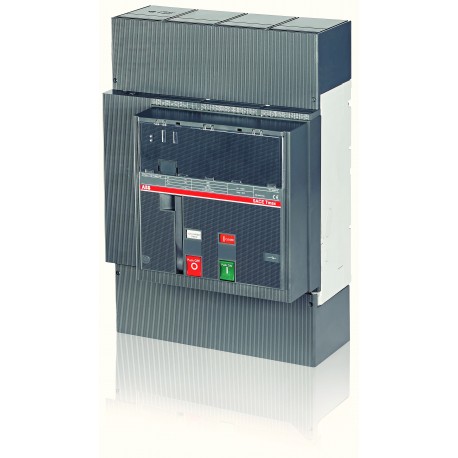

1SDA073561R1 ABB T7D/PV-E 1600 4p F F M 1500V DC
1SDA073561R1
073561
ABB
1 Pcs.
Connectors > Switch disconnector
T7
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB photovoltaic circuit breaker is engineered to manage high-voltage direct current power in solar energy generation and distribution installations. Heavy-duty disconnectors of this nature protect sensitive electrical infrastructure by safely interrupting high DC loads within large-scale renewable energy farms. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: f28d029b-0fee-48b8-b8ca-28a6eb042af5 Italy
- Simplified SCIP: a79dd4ce-349c-4e21-9a08-256a1c2a42ca Germany
- Environmental Information: 9AKK10103A1059
- EAN: 8015644744366
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85352100
- Product Net Width: 280 mm
- Product Net Height: 268 mm
- Product Net Depth / Length: 154 mm
- Product Net Weight: 12.5 kg
- Package Level 1 Units: box 1 piece
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | f28d029b-0fee-48b8-b8ca-28a6eb042af5 Italy |
| Simplified SCIP | a79dd4ce-349c-4e21-9a08-256a1c2a42ca Germany |
| 64e622e1-048d-4bfe-b5bd-6ca9aa448878 Germany | |
| 49beb09c-2c3b-4bc1-ae1a-69d62bae4a3c Croatia | |
| d6a882b1-5698-4ba0-bd9f-eae46b826a7c Czech Republic | |
| 181c4b61-b2e3-4c95-9775-9dd07ca7bb36 Poland | |
| 0d3d19fa-5a2c-4690-a8b3-62d7e2cd911a Portugal | |
| 31cafed7-7b19-446e-96d3-89e71d57be5a Bulgaria | |
| 43b6cccf-8a7d-4f17-aea3-fbd2675d657a Sweden | |
| a3f125df-0579-47a6-8038-7725ceab6c8a Poland | |
| 9730b2ba-0b96-4888-823b-689dab492be3 France | |
| c923cc33-b8d0-4016-8ab0-9e6ce07a8cc4 Sweden | |
| d2bc9ccc-dc68-4a45-b715-6711c4753584 Germany | |
| 0861f791-ec08-4f75-abe7-43f8905c49d5 Germany | |
| df989f1b-f906-490a-b411-5a789441da88 France | |
| 9b50b67b-eede-46f0-b51b-270ea4de4b28 Netherlands | |
| 4a4c5a27-212d-4ca9-9fea-d57d0aa15e29 Spain | |
| e126abee-f19d-468f-9ffe-509775695416 Netherlands | |
| e8f533b9-b487-4d52-86c7-0abbd23876b4 Greece | |
| 58b9257b-09d2-4000-a358-fec7c991ec4f Norway | |
| 63d4d556-69d3-4679-8763-69672ab4f7e0 Finland | |
| 60fba14a-c93a-4e28-a5a3-11276df77b77 Netherlands | |
| 990276b2-fa3d-44b6-aaa5-705cf11f9b59 Poland | |
| 1bd5d7ec-64e1-495c-b273-502b338210a9 Netherlands | |
| 031b0961-0cdd-4401-b73b-2554501229ad Netherlands | |
| 80f59f4f-5967-4833-881b-038a792c2ac6 Estonia | |
| 715363f1-548f-4c2d-83fc-12f2ef781cf7 Germany | |
| fa554fd5-0d98-4e4b-b1c1-891e4c55646c Denmark | |
| Environmental | |
| Environmental Information | 9AKK10103A1059 |
| 9AKK108467A6707 | |
| Ordering | |
| EAN | 8015644744366 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85352100 |
| Dimensions | |
| Product Net Width | 280 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 154 mm |
| Product Net Weight | 12.5 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 360 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 360 mm |
| Package Level 1 Gross Weight | 14 kg |
| Package Level 1 EAN | 8015644744366 |
| Additional Information | |
| Product Main Type | SACE Tmax T |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Switch Disconnector |
| Suitable For | T7M |
| Version | F |
| Technical | |
| Current Type | DC |
| Number of Poles | 4P |
| Rated Current (In) | 1600 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1500 V DC |
| Rated Operational Voltage | 1500 V DC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 19.2 kA |
| Rated Uninterrupted Current (Iu) | 1600 A |
| Rated Voltage (Ur) | 1500 V DC |
| Remarks | ATLAS |
| Standards | IEC |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210300D0201 |
| Declaration of Conformity - CE | 9AKK106713A9778 |
| Instructions and Manuals | 1SDH000789R0002 |
| External Classifications and Standards | |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371403 |
