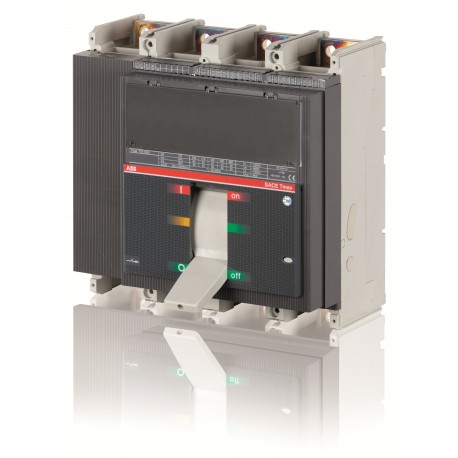

1SDA062041R1 ABB T7D 1600 4p F F
1SDA062041R1
062041
ABB
1 Pcs.
T7D 1600 4p F F
T7D1600 4P F F
Connectors > Switch disconnector
T7
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 933b4095-6055-42a4-8e80-b62a54b113ce Italy |
| Simplified SCIP | d5c4300f-2213-4e16-b04a-a039aff592c3 Germany |
| 6e1cff38-e3ac-4574-961b-d16f19fdd642 Netherlands | |
| f476e3b7-6332-436c-a230-d3db5e45ae90 Croatia | |
| 1b0c312b-b5ad-47ea-818a-3a9c94bc5e92 Finland | |
| adbdde31-b9f5-4b24-8a64-9b7872ab2db7 Estonia | |
| 8e27c9be-cc91-4a08-b1e8-043ab842b4bd Netherlands | |
| c0c53753-e44b-4a6e-9761-3303150f7fbb Poland | |
| d53d069b-e795-4d1a-a9c6-f109d726ab43 Czech Republic | |
| 328ceb9b-011e-4a13-a84f-bc7e148a6900 Germany | |
| b6a3ff38-e873-4f69-a6cc-f643a5d40b4a Denmark | |
| 2bc7bfe4-fa24-4da7-9f16-3d1d00191665 Sweden | |
| 63943fdd-ed83-437c-af5a-c297fe55466b Bulgaria | |
| c520ae11-8c90-48fe-9a12-97338c875f0d Portugal | |
| 09a07cd5-d15b-4868-a155-87e794dc9eb1 Greece | |
| d931963f-1cd2-4a57-962f-ca25f2473cb4 Spain | |
| 34378c03-4f8b-44a5-b142-508eb28cb7d6 Netherlands | |
| 20e5e399-299c-4219-b454-ecbbfc4f967d France | |
| d21d90e3-b388-460e-b0fb-ae489ea697f8 Germany | |
| d9ced150-99fa-4e6a-ae07-4893adb0d37e Germany | |
| 89f490cd-6e92-4c49-b05f-d8928587783d Sweden | |
| 82586615-247c-4912-a44f-dcd55371887a France | |
| a424e4c5-93e8-4400-8b20-e19c4a33a688 Poland | |
| 57e6453e-925f-4fd7-99cf-edfb349591cb Netherlands | |
| 79f200a5-c10e-4bc4-940f-ba2ad561e42b Netherlands | |
| c3889ebe-2f42-45fa-83a1-4ff9ff0a935e Norway | |
| f48f5717-11bf-48ce-a189-09e18be16898 Poland | |
| a307b767-fa21-4f8e-9c0e-667c2ecc7935 Germany | |
| Environmental | |
| Environmental Information | 9AKK10103A1059 |
| 9AKK108467A6707 | |
| Ordering | |
| EAN | 8015644645793 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 280 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 154 mm |
| Product Net Weight | 12.5 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 360 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 360 mm |
| Package Level 1 Gross Weight | 14 kg |
| Package Level 1 EAN | 8015644645793 |
| Additional Information | |
| Product Main Type | SACE Tmax T |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Switch Disconnector |
| Suitable For | T7 |
| Suitable for Product Class | Moulded Case Circuit Breakers |
| Version | F |
| Technical | |
| Number of Poles | 4P |
| Power Loss | at Rated Operating Conditions per Pole 77 W |
| Rated Operational Voltage | 690 V AC |
| 750 V DC | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 20 A |
| Rated Uninterrupted Current (Iu) | 1600 A |
| Short-Circuit Performance Level | D |
| Standards | IEC |
| Sub-type | T7 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Front | |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210015D0201 |
| Declaration of Conformity - CE | 9AKK106713A5537 |
| Instructions and Manuals | 1SDC210015D0201 |
| External Classifications and Standards | |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| Object Classification Code | Q |
| UNSPSC | 39121100 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371403 |
