View larger
Images are for illustrative purposes only. Please refer to data sheet for details

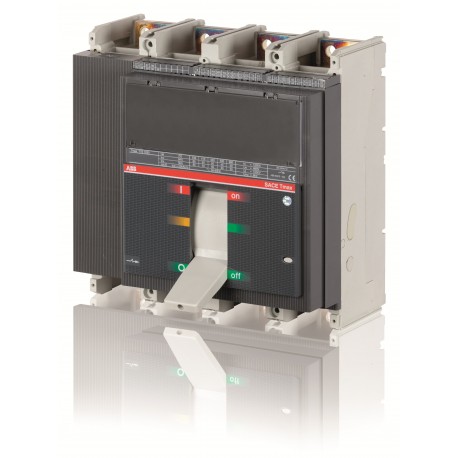

1SDA062037R1 ABB T7D 1250 4p F F
1SDA062037R1
062037
ABB
1 Pcs.
T7D 1250 4p F F
T7D1250 4P F F
Connectors > Switch disconnector
T7
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 64a577a0-7919-48aa-b779-f2f867b0ee75 Italy |
| Simplified SCIP | cc26bcb4-1a27-4efa-bb61-9f5ed41adb1a Germany |
| 8932bbd7-f260-4c90-9454-659ec38481e7 Croatia | |
| 4513e83c-69af-46ee-ae1b-7a4adab536fc Denmark | |
| 64ecd087-da9a-4bee-918b-21dea122df8e Finland | |
| 5510d8ce-3b61-4146-852f-11cf4b765c26 Germany | |
| 6d820fef-ee9c-4c77-9bf1-e18829690f15 Sweden | |
| a3dc1b6f-b055-4253-bbfe-bfbbe1311afd France | |
| 7acc01a3-b8b7-413c-8ea8-361bc235a442 Poland | |
| 2262923c-77b2-4b96-8819-e76d6ca57660 Sweden | |
| f82c8b39-8ae6-401d-8024-4d33961b10e6 Bulgaria | |
| 7f126269-2efa-4bed-a996-65499c943715 Greece | |
| b5bcedd6-a6f9-4b77-b6bd-4f51c2b0ebf4 Estonia | |
| 11958267-aa4c-4cd7-9492-b5084549768b Netherlands | |
| 8805e672-461a-4852-84a0-e6d9f20ce9ef Poland | |
| 5936179a-400a-47a9-b969-1904f27e40c9 Czech Republic | |
| c64de3ba-0b9f-4541-acbc-fadb3f706d88 Germany | |
| 73620b45-9a10-4b66-b5ce-a9be3bf23ff6 Portugal | |
| e73a4eb9-be83-40c6-b27b-41b32998a54f Germany | |
| 359d07be-0f09-4dcd-9a61-80751f5881c7 France | |
| e5df00df-c739-46fc-bf62-1ddb7d3c706a Netherlands | |
| e7832ccb-874b-4366-aa48-790e3ca8d0b7 Norway | |
| ba3b5c7b-ab87-4374-b72e-2d5ef55c07a3 Germany | |
| 33f681ed-7834-456a-a732-bdd5e01b4a3a Netherlands | |
| ea2fd7fe-4fe6-437f-ba22-d0e209e732b8 Poland | |
| a8749ed2-489e-4bae-b68f-496ddd2de25b Netherlands | |
| 98611931-9a42-4746-9b91-d83490bb8f8d Netherlands | |
| 6affef34-42a9-4e19-a1cf-fde6053e45df Spain | |
| Environmental | |
| Environmental Information | 9AKK10103A1059 |
| 9AKK108467A6707 | |
| Ordering | |
| EAN | 8015644645755 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 280 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 154 mm |
| Product Net Weight | 12.5 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 360 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 360 mm |
| Package Level 1 Gross Weight | 14 kg |
| Package Level 1 EAN | 8015644645755 |
| Additional Information | |
| Product Main Type | SACE Tmax T |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Switch Disconnector |
| Suitable For | T7 |
| Suitable for Product Class | Moulded Case Circuit Breakers |
| Version | F |
| Technical | |
| Number of Poles | 4P |
| Power Loss | at Rated Operating Conditions per Pole 47 W |
| Rated Operational Voltage | 690 V AC |
| 750 V DC | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 20 A |
| Rated Uninterrupted Current (Iu) | 1250 A |
| Short-Circuit Performance Level | D |
| Standards | IEC |
| Sub-type | T7 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Front | |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210015D0201 |
| Declaration of Conformity - CE | 9AKK106713A5537 |
| Instructions and Manuals | 1SDC210015D0201 |
| External Classifications and Standards | |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| Object Classification Code | Q |
| UNSPSC | 39121100 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371403 |
