View larger
Images are for illustrative purposes only. Please refer to data sheet for details

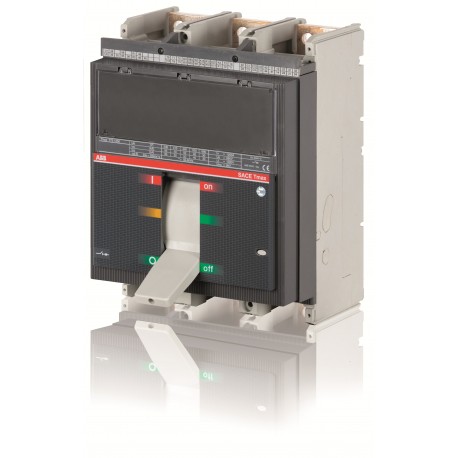

1SDA062032R1 ABB T7D 1000 3p F F
1SDA062032R1
062032
ABB
1 Pcs.
T7D 1000 3p F F
T7D1000 3P F F
Connectors > Switch disconnector
T7
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 4e25b6e0-2b7e-46a3-acdf-6fc790b505d0 Italy |
| Simplified SCIP | 323dae97-68a1-472b-901a-09bddfc965e1 Belgium |
| ae4d9771-b8d9-42ba-9c2a-8e77c31b49e4 France | |
| d84daf68-208a-4526-8359-d9a3489c3855 Spain | |
| f32f0885-12e6-4e07-96c6-f230ac5021f0 Hungary | |
| 7a1b9a42-82dd-4d97-8b94-8dedc0fb1a9a Croatia | |
| dfb7a1da-593f-47f4-b5cd-0d5113ae8683 Germany | |
| 8da8a25c-0549-4099-92c0-4987f5b5c82d Sweden | |
| 3f0ea8d8-9bb0-4fe8-be45-677d51a64d78 Germany | |
| a18c582f-1d1a-4b2d-a8db-a9d89f21c940 Denmark | |
| 3e8122c0-3440-467f-8318-eef17d9b43dc Germany | |
| d7c3381f-433b-4447-a80f-9fd39c45f7d9 Czech Republic | |
| cfa395ab-8941-41df-bbf0-499f19e72dca France | |
| bf1ec5e0-7b71-4cce-877f-4cc8548ad160 Germany | |
| a4d30b2c-d74b-4ad2-ac5d-aa29f5cee4a9 Portugal | |
| 73bf9d5a-a6d4-493b-95dd-a775c7b86972 Poland | |
| 7a1a52a1-7513-4a4b-a739-c01aa493207a Bulgaria | |
| 2a31dde8-08c7-424b-8a29-5956bb45eee5 Poland | |
| 2f7e1ba8-9d6d-4a90-b931-7f66f621fcf9 Germany | |
| 9d0b1b44-14e6-4382-a140-8d42e6b73fb9 Greece | |
| 30809f90-e5d8-403f-8476-673666ed5355 Belgium | |
| a3f3187e-fb68-4bf3-b10e-3dc341a12951 Estonia | |
| 7602f16f-8cee-48c1-a8be-70145b051790 Netherlands | |
| 4dd1515e-2056-495f-ae00-a6b6bbe5c5c1 Sweden | |
| 80f45f64-21e9-4cc0-a4b4-22ebbc86c7f2 Norway | |
| ff7adc1d-fcf2-45f7-93a7-19b5e1a8c6b1 Hungary | |
| 35496e67-4da3-49ed-b66d-8f11c7b65656 Poland | |
| 19371c4e-8753-403b-b989-92ed01a6fbed Finland | |
| Environmental | |
| Environmental Information | 9AKK10103A1059 |
| 9AKK108467A6707 | |
| Ordering | |
| EAN | 8015644645700 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 210 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 154 mm |
| Product Net Weight | 9.7 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 280 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 360 mm |
| Package Level 1 Gross Weight | 11.2 kg |
| Package Level 1 EAN | 8015644645700 |
| Additional Information | |
| Product Main Type | SACE Tmax T |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Switch Disconnector |
| Suitable For | T7 |
| Suitable for Product Class | Moulded Case Circuit Breakers |
| Version | F |
| Technical | |
| Number of Poles | 3P |
| Power Loss | at Rated Operating Conditions per Pole 30 W |
| Rated Operational Voltage | 690 V AC |
| 750 V DC | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 20 A |
| Rated Uninterrupted Current (Iu) | 1000 A |
| Short-Circuit Performance Level | D |
| Standards | IEC |
| Sub-type | T7 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Front | |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| Data Sheet, Technical Information | 1SDC210015D0201 |
| Declaration of Conformity - CE | 9AKK106713A5537 |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| Instructions and Manuals | 1SDC210015D0201 |
| External Classifications and Standards | |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| Object Classification Code | Q |
| UNSPSC | 39121100 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371403 |
