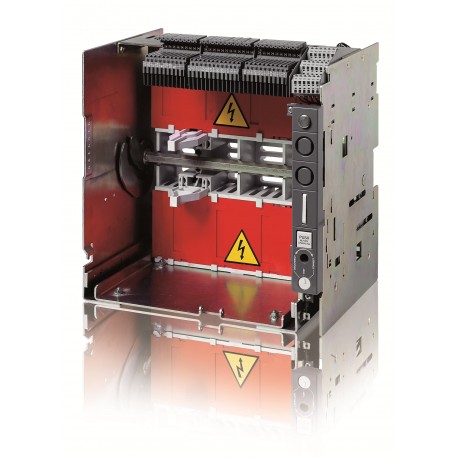

1SDA062046R1 ABB T7-X1 W FP 3p HR-EF
1SDA062046R1
062046
ABB
1 Pcs.
Automation > Chassis part power circuit breaker
T7
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 1SDA062046R1 ABB T7-X1 W FP 3p HR-EF provides a secure withdrawable fixed base designed to accommodate heavy-duty circuit breakers within modular industrial distribution boards. This component ensures correct alignment and safe mechanical insertion for power switching devices during routine operations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Information: 9AKK108467A6707
- EAN: 8015644645908
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Product Net Width: 278 mm
- Product Net Height: 343 mm
- Product Net Depth / Length: 251 mm
- Product Net Weight: 18 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Gross Weight: 19.5 kg
- Package Level 1 EAN: 8015644609139
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| EAN | 8015644645908 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Width | 278 mm |
| Product Net Height | 343 mm |
| Product Net Depth / Length | 251 mm |
| Product Net Weight | 18 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Gross Weight | 19.5 kg |
| Package Level 1 EAN | 8015644609139 |
| Additional Information | |
| Product Main Type | Accessories for Tmax T |
| Product Name | Accessory |
| Product Type | Fixed Part |
| Version | W |
| Technical | |
| Number of Poles | 3P |
| Rated Operational Voltage | 690 V AC |
| Rated Uninterrupted Current (Iu) | 1600 A |
| Standards | IEC |
| Sub-type | T7-X1 |
| Terminal Connection Type | Withdrawable Circuit-Breakers |
| Rear flat Horizontal | |
| Front Extended | |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210015D0201 |
| Declaration of Conformity - CE | Refer to the EU Declaration of the relative Circuit Breaker |
| Instructions and Manuals | 1SDH000529R0802 |
| 1SDH000529R0807 | |
| 1SDH000529R0907 | |
| 1SDH000529R0901 | |
| 1SDH000529R0905 | |
| External Classifications and Standards | |
| ETIM 9 | EC002043 - Chassis part power circuit breaker |
| ETIM 10 | EC002043 - Chassis part power circuit breaker |
| Object Classification Code | Q |
| UNSPSC | 39121100 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370422 |
