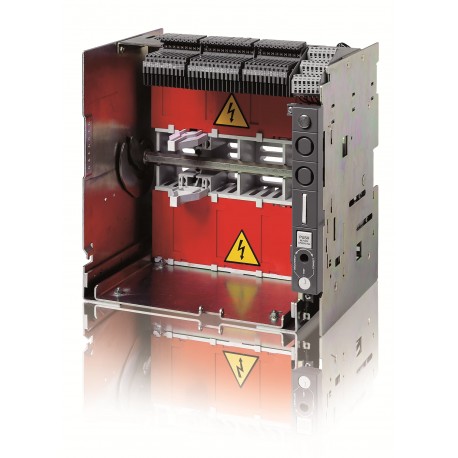

ABB 1SDA062045R1 1SDA062045R1 ABB T7-X1 W FP 3p EF-EF View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA062045R1 ABB T7-X1 W FP 3p EF-EF

1SDA062045R1

062045

ABB

1 Pcs.

T7-X1 W FP 3p EF-EF W TERM FIXED PART. EF-EF 3P

Automation > Chassis part power circuit breaker
T7

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An 1SDA062045R1 ABB T7-X1 W FP 3p EF-EF operates as a withdrawable circuit breaker fixed part base utilized in heavy industrial power distribution boards. It provides the necessary mechanical racking mechanism and robust terminal connections to safely manage high-amperage electrical loads.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK108467A6707
  • EAN: 8015644645830
  • Minimum Order Quantity: 1 piece
  • Customs TariffNumber: 85389099
  • Product Net Width: 278 mm
  • Product Net Height: 343 mm
  • Product Net Depth / Length: 251 mm
  • Product Net Weight: 18 kg
  • Package Level 1 Units: 1 piece
  • Package Level 1 Width: 360 mm
  • Package Level 1 Height: 340 mm

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK108467A6707
Ordering
EAN8015644645830
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Dimensions
Product Net Width278 mm
Product Net Height343 mm
Product Net Depth / Length251 mm
Product Net Weight18 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width360 mm
Package Level 1 Height340 mm
Package Level 1 Depth / Length380 mm
Package Level 1 Gross Weight19.5 kg
Package Level 1 EAN8015644645830
Additional Information
Product Main TypeAccessories for Tmax T
Product NameAccessory
Product TypeFixed Part
VersionW
Technical
Number of Poles3P
Rated Operational Voltage690 V AC
Rated Uninterrupted Current (Iu)1600 A
StandardsIEC
Sub-typeT7-X1
Terminal Connection TypeWithdrawable Circuit-Breakers
Front Extended
Certificates and Declarations
Data Sheet, Technical Information1SDC210015D0208
1SDC210300D0201
Declaration of Conformity - CERefer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals1SDH000529R0802
1SDH000529R0807
External Classifications and Standards
ETIM 9EC002043 - Chassis part power circuit breaker
ETIM 10EC002043 - Chassis part power circuit breaker
Object Classification CodeQ
UNSPSC39121100
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370422
