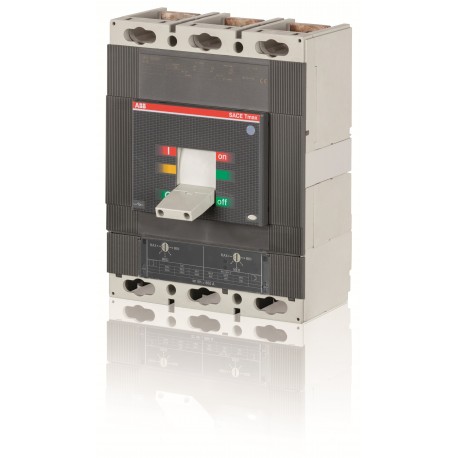

1SDA061662R1 ABB T6S800 UL/CSA TMA 800-8000 3p F F
1SDA061662R1
061662
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Abb 1SDA061662R1 T6S800 UL/CSA TMA 800-8000 3p F F is a heavy-duty molded case circuit breaker built to handle high-amperage electrical loads in North American and international industrial environments. Facility engineers deploy these devices to protect distribution transformers, feeders, and heavy industrial equipment from damaging overloads. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Information: 9AKK10103A1058
- Order Code US and Canada: T6S800TW
- EAN: 8015644642013
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 210 mm
- Product Net Height: 268 mm
- Product Net Depth / Length: 103.5 mm
- Product Net Weight: 9.5 kg
- Package Level 1 EAN: 8015644642013
- Product Main Type: SACE Tmax T
