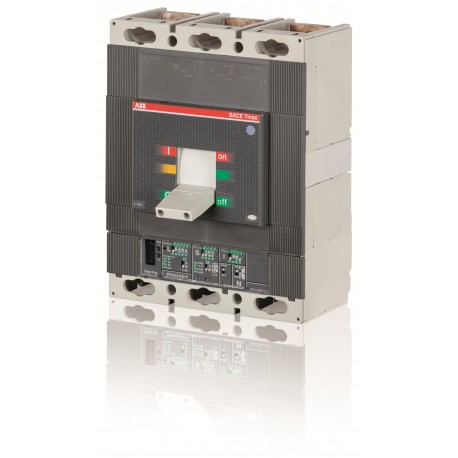

1SDA060238R1 ABB T6S 630 PR222DS/P-LSI In 630 3p F F
1SDA060238R1
060238
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
T6
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Industrial power distribution grids rely on components like the 1SDA060238R1 ABB T6S 630 PR222DS/P-LSI In 630 3p F F circuit breaker to automatically disconnect loads during fault conditions, protecting equipment and personnel. Molded case circuit breakers of this class are widely applied in large commercial facilities and manufacturing plants.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: 3dd915ac-2019-4761-8b9c-2324cc1214b2 China
- Simplified SCIP: 88d132ba-befd-4d4d-9999-b1c215a75710 Czech Republic
- Environmental Information: 9AKK10103A1058
- E-Number (Finland): 3655438
- EAN: 8015644627003
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 210 mm
- Product Net Height: 268 mm
- Product Net Depth / Length: 103.5 mm
- Product Net Weight: 9.5 kg
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 3dd915ac-2019-4761-8b9c-2324cc1214b2 China |
| Simplified SCIP | 88d132ba-befd-4d4d-9999-b1c215a75710 Czech Republic |
| ba051158-a5c7-484a-a500-69bc7ad693b7 Poland | |
| dbb82876-12e1-46f5-92ab-cb9454c12706 Hungary | |
| 76d6aede-194c-48fc-aef7-72349b8846d1 Netherlands | |
| 1e66c2bb-81e3-4856-ba4a-93ac3c40df05 Greece | |
| 9425fc2a-7d5c-4286-bf5b-00c61e3b6acb Germany | |
| 91b2aca4-8718-48ef-8209-068e0bc52dcf Finland | |
| 26417ebe-4267-4622-be7d-4f9b2701f9ef Denmark | |
| 7f14c87b-cada-487d-858d-7a6e9a3fd307 Germany | |
| 652df4a1-3138-46a0-ba2f-3059bba4448f Sweden | |
| 80ea8e02-2634-4cf9-9315-c23ebe0dcdc0 France | |
| b034b0f8-71a9-4dd0-8a08-acedc37ded62 Poland | |
| 002cc1c2-01f4-47ee-a3f1-1a3e295d26a0 Bulgaria | |
| c423436a-b455-43bd-b2ed-c36f16ac7065 Estonia | |
| 89244f47-3ccb-45e1-98e3-146b4f854f79 Portugal | |
| 229dd868-dbd1-4df9-b418-51527613b3e6 Belgium | |
| b61a6e3e-e0b1-4b55-a272-ac26e26ca668 France | |
| ee3bab76-7f38-4fc8-b3c2-4b4118b0b211 Spain | |
| e40466ae-da08-4bae-bc08-a6972d73dae8 Sweden | |
| 1fa3862f-f90c-401f-9944-717b97fa48f3 Germany | |
| 2e4707fb-44c7-4b67-8e88-775872ad4118 Germany | |
| cfa82a5f-a3e9-430a-93d0-ada26f0eb424 Hungary | |
| 35b85e5e-7f86-4b09-9fe9-4d940e3e882d Norway | |
| 042904fb-5098-4ded-a99b-c3794c894f2a Croatia | |
| 4233a0d8-f206-4c30-bd13-de5f560d2089 Germany | |
| 1f171fea-254b-48be-aa19-e5ab53238178 Poland | |
| 2d9197cf-0862-4bd8-902c-06bb9272137b Belgium | |
| Environmental | |
| Environmental Information | 9AKK10103A1058 |
| 9AKK108467A6707 | |
| Ordering | |
| E-Number (Finland) | 3655438 |
| EAN | 8015644627003 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 210 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 9.5 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 305 mm |
| Package Level 1 Height | 285 mm |
| Package Level 1 Depth / Length | 370 mm |
| Package Level 1 Gross Weight | 11 kg |
| Package Level 1 EAN | 8015644627003 |
| Additional Information | |
| Product Main Type | SACE Tmax T |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Suitable For | T6 |
| Suitable for Product Class | Moulded Case Circuit Breakers |
| Version | F |
| Technical | |
| Electrical Durability | 7000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | at Rated Operating Conditions per Pole 20 W |
| Rated Current (In) | 630 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (400 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 45 kA | |
| (500 V AC) 35 kA | |
| (690 V AC) 16.5 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 7.6 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (400 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 45 kA | |
| (500 V AC) 35 kA | |
| (690 V AC) 22 kA | |
| Rated Uninterrupted Current (Iu) | 630 A |
| Release | PR222DS/P-LSI |
| Release Type | EL |
| Short-Circuit Performance Level | S |
| Standards | IEC |
| Sub-type | T6 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Front | |
| Test Voltage Max (Utest) | 3500 V |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210015D0201 |
| Declaration of Conformity - CE | 9AKK106713A5538 |
| Instructions and Manuals | 1SDH000511R0001 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| UNSPSC | 39121100 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
