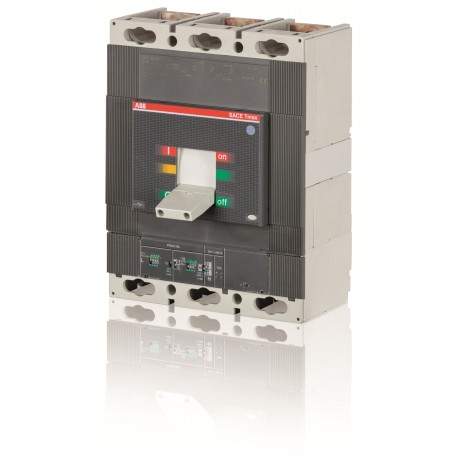

1SDA060236R1 ABB T6S 630 PR221DS-LS/I In 630 3p F F
1SDA060236R1
060236
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
T6
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This 1SDA060236R1 ABB T6S 630 PR221DS-LS/I In 630 3p F F is a molded case circuit breaker designed to safeguard heavy electrical distribution loops from overloads and short circuits. Industrial facilities rely on components of this class within primary switchgear to ensure continuous operational safety and isolate fault events.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: 0b6d2933-22d6-40c1-a6d1-ecfe7e7d2b4e China
- Simplified SCIP: e72b90fb-f764-4a50-8def-1e83352b9e1a Belgium
- Environmental Information: 9AKK10103A1058
- E-Number (Finland): 3655414
- EAN: 8015644626983
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 210 mm
- Product Net Height: 268 mm
- Product Net Depth / Length: 103.5 mm
- Product Net Weight: 9.842 kg
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 0b6d2933-22d6-40c1-a6d1-ecfe7e7d2b4e China |
| Simplified SCIP | e72b90fb-f764-4a50-8def-1e83352b9e1a Belgium |
| 80e5f392-b1f6-4ec5-97db-4d359a310475 Sweden | |
| 01439576-886c-45d5-9b7b-9be77948a968 Germany | |
| 88505e66-032f-4e68-b2e7-1d3d56e66ae0 Germany | |
| b75fef38-b123-4d32-bafc-b65ac645de5f Denmark | |
| 260af9fb-3e9e-4c8c-aef3-d4f113d8a26f Poland | |
| c0bf813c-db95-4525-b8ff-97b4b6ee419f Poland | |
| e65c4fcd-7394-48fa-ba00-c4dff6ee05e8 Hungary | |
| 4d304c55-0941-4836-8b7a-5e4874bef0ce Spain | |
| 95b99fac-6987-4520-85ec-c802d2ad55b4 Portugal | |
| 6e670fd3-6ff3-41d7-acb7-81d522b9eb2b Czech Republic | |
| b5f7b04d-4dd7-46f2-8164-a9f655f80ff8 Finland | |
| 2045bfa9-c788-4c00-b496-a669ebbddbbd Bulgaria | |
| 3ff28303-c74b-4495-b276-d4be5b896139 Greece | |
| 41b733de-9893-492a-9711-a66162ea2b8f Norway | |
| 1a2d47c1-1c65-4641-80ed-1efcd73f15a1 Netherlands | |
| 7292299c-7d1f-4a24-9a4a-01dbedb35720 France | |
| 5a69b36c-a306-40e1-a9d4-00639cd98164 Sweden | |
| ba9e28a7-08cd-440d-a443-d6f44b8ce7a9 Germany | |
| aea3e8e6-860c-44bd-9690-d35e851bd6df Poland | |
| df4963af-f181-40d6-9317-35750930a21b France | |
| 970de284-5610-43d1-aeaa-246d3b8280b3 Germany | |
| ae5081fb-7d27-4d7b-b946-bbb4daa8bc22 Germany | |
| Environmental | |
| Environmental Information | 9AKK10103A1058 |
| 9AKK108467A6707 | |
| Ordering | |
| E-Number (Finland) | 3655414 |
| EAN | 8015644626983 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 210 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 9.842 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 305 mm |
| Package Level 1 Height | 285 mm |
| Package Level 1 Depth / Length | 370 mm |
| Package Level 1 Gross Weight | 11 kg |
| Package Level 1 EAN | 8015644626983 |
| Additional Information | |
| Product Main Type | SACE Tmax T |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Suitable For | T6 |
| Suitable for Product Class | Moulded Case Circuit Breakers |
| Version | F |
| Technical | |
| Electrical Durability | 7000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | at Rated Operating Conditions per Pole 20 W |
| Rated Current (In) | 630 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (400 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 45 kA | |
| (500 V AC) 35 kA | |
| (690 V AC) 16.5 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 7.6 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (400 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 45 kA | |
| (500 V AC) 35 kA | |
| (690 V AC) 22 kA | |
| Rated Uninterrupted Current (Iu) | 630 A |
| Release | PR221DS-LS/I |
| Release Type | EL |
| Short-Circuit Performance Level | S |
| Standards | IEC |
| Sub-type | T6 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Front | |
| Test Voltage Max (Utest) | 3500 V |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210015D0201 |
| Declaration of Conformity - CE | 9AKK106713A5538 |
| Instructions and Manuals | 1SDH000511R0001 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| UNSPSC | 39121100 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
