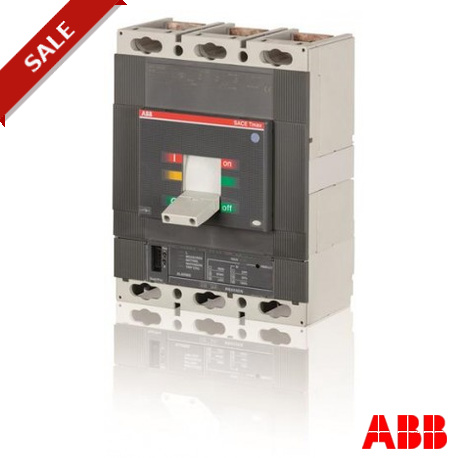

T6N800 1SDA060272R1 ABB T6N 800 PR223DS In 800 3p F F
T6N800
1SDA060272R1
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
T6
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Serving as an automatic circuit breaker, this Abb T6N800 unit protects large-scale industrial electrical systems by automatically interrupting fault currents and overloads. It safeguards downstream distribution assets from catastrophic electrical failures. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Electrical Durability: 5000 cycle 60 cycles per hour
- Mechanical Durability: 20000 cycle 120 cycles per hour
- Number of Poles: 3
- Power Loss: at Rated Operating Conditions per Pole 32 W
- Product Main Type: SACE Tmax T
- Product Name: Automatic Circuit Breaker
- Product Type: CB
- Rated Current (I n ): 800 A
- Rated Impulse Withstand Voltage (U imp ): 8 kV
- Rated Insulation Voltage (U i ): 1000 V
- Rated Operational Voltage: 690 V AC 750 V DC
- Rated Short-time Withstand Current (I cw ): for 1 s 10 A
- Rated Uninterrupted Current (I u ): 800 A
- Release Type: EL
- Standards: IEC 60947
- Sub-type: T6
More info
▲C.BREAKER TMAX T6N 800 FIXED THREE-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC PR223DS R 800
Ordering
- EAN:
- 8015644627348
- Minimum Order Quantity:
- 1 piece
- Customs Tariff Number:
- 85362090
Dimensions
- Product Net Width:
- 210mm
- Product Net Height:
- 268mm
- Product Net Depth:
- 103.5mm
- Product Net Weight:
- 9.5kg
Container Information
- Package Level 1 Units:
- 1 piece
- Package Level 1 Width:
- 228 mm
- Package Level 1 Height:
- 228 mm
- Package Level 1 Length:
- 286 mm
- Package Level 1 Gross Weight:
- 11 kg
- Package Level 1 EAN:
- 8015644627348
Additional Information
- Electrical Durability:
- 5000 cycle
60 cycles per hour
- Mechanical Durability:
- 20000 cycle
120 cycles per hour
- Number of Poles:
- 3
- Power Loss:
- at Rated Operating Conditions per Pole 32 W
- Product Main Type:
- SACE Tmax T
- Product Name:
- Automatic Circuit Breaker
- Product Type:
- CB
- Rated Current (In):
- 800 A
- Rated Impulse Withstand Voltage (Uimp):
- 8 kV
- Rated Insulation Voltage (Ui):
- 1000 V
- Rated Operational Voltage:
- 690 V AC
750 V DC
- Rated Service Short-Circuit Breaking Capacity (Ics):
- (220 V AC) 70 kA
(230 V AC) 70 kA
(380 V AC) 36 kA
(400 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 30 kA
(500 V AC) 25 kA
(690 V AC) 15 kA
- Rated Short-time Withstand Current (Icw):
- for 1 s 10 A
- Rated Ultimate Short-Circuit Breaking Capacity (Icu):
- (220 V AC) 7 kA
(230 V AC) 7 kA
(380 V AC) 36 kA
(400 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 30 kA
(500 V AC) 25 kA
(690 V AC) 20 kA
(250 V DC) 2 Poles in Series 36 kA
(500 V DC) 2 Poles in Series 25 kA
(750 V DC) 3 Poles in Series 16 kA
- Rated Uninterrupted Current (Iu):
- 800 A
- Release Type:
- EL
- Standards:
- IEC 60947
- Sub-type:
- T6
- Suitable For:
- T6
- Suitable for Product Class:
- Moulded Case Circuit Breakers
- Terminal Connection Type:
- Fixed Circuit-Breakers
Front
- Test Voltage Max (Utest):
- 3500 V
- Version:
- F
Certificates and Declarations (Document Number)
- Data Sheet, Technical Information:
- 1SDC210015D0201
- Declaration of Conformity - CE:
- 1SDL000165R0006
- GL Certificate:
- 1SDL000163R0057
Classifications
- ETIM 4:
- EC000228 - Power circuit-breaker for trafo/generator/installation prot.
- ETIM 5:
- EC000228 - Power circuit-breaker for trafo/generator/installation prot.
- Object Classification Code:
- Q
