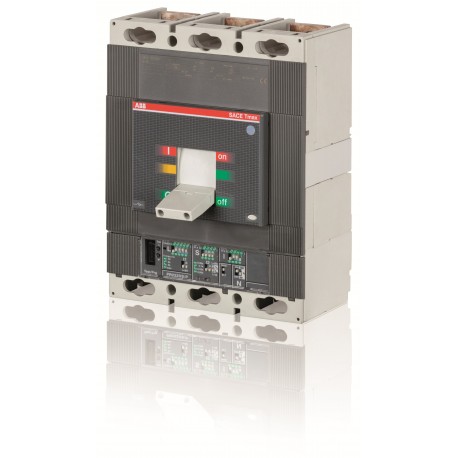

ABB 1SDA060270R1 1SDA060270R1 ABB T6N 800 PR222DS/P-LSI In 800 3p F F View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA060270R1 ABB T6N 800 PR222DS/P-LSI In 800 3p F F

1SDA060270R1

060270

ABB

1 Pcs.

T6N 800 PR222DS/P-LSI In=800 3p F F T6N800 PR222DS/P LSI R800 3P F F

Automation > Power circuit-breaker for trafo/generator/installation protection
T6

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIP2f7a1595-5ec0-4be6-8263-b8a8cb71f9f8 Italy
Simplified SCIPd48f9d18-10b3-4235-a7b5-d961e84b7825 Norway
6a82a68f-6e19-4307-8b33-afde17c1e398 France
143a01ae-92fa-46bd-b014-c373aa311f4a Poland
384fa057-6f4f-459e-9fae-ce2c4c7990bf Sweden
da15f925-1c48-4b85-b807-f8ca783e9ef7 Portugal
c24ac611-fa50-495a-9416-9d5202a05de9 Sweden
bd3f1566-f3a9-4ae5-bdee-ac64bea3cae6 Germany
b39b9e49-bcf6-483d-8049-a3482dfae86c Germany
6cd5a1a9-6017-4b8d-a5e2-9b2e4fd00bf9 Hungary
85ad80e1-6b61-4b81-b452-f393d135754b Germany
e2ee0017-12b6-4bb6-86fe-b817007a737f Denmark
bd5731e3-42cc-4301-927f-5b6b2f5b51d6 Czech Republic
947978d9-6aba-4d46-b2dc-834498d5b7e6 Germany
c8c0231f-aef1-4bea-945a-a4f80cd845d3 Greece
da982790-7fab-4ca4-968d-3e0f7ae61474 Netherlands
4e31ed10-0214-46d6-a337-6af139a83ad5 Hungary
b78d11d0-54b5-4ff0-be37-cba5657f3b84 Bulgaria
c108bbfc-89cd-42fc-8688-ab0aeaef8900 Croatia
75e5db97-a939-42ec-b0de-6e250ffee440 France
725251f2-b531-4004-9420-752945309a3c Estonia
7ae75975-8f68-4856-a5ee-2e8e0108a06d Poland
5f95e50a-61e3-4111-86f6-a0f2e0294b05 Belgium
e704ade5-6200-4d57-86fa-219c85d14eb8 Spain
5f390d04-3bc8-4abe-87a7-97708fb09eec Poland
098a5fd0-091f-4254-b814-7ea8f3f59e72 Germany
68141ef9-4155-4870-b235-6e9b1825166f Finland
3eb8dd53-62c0-425e-8d4b-9a31fdf3a649 Belgium
Environmental
Environmental Information9AKK10103A1058
9AKK108467A6707
Ordering
E-Number (Finland)3655436
EAN8015644627324
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width210 mm
Product Net Height268 mm
Product Net Depth / Length103.5 mm
Product Net Weight9.5 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width305 mm
Package Level 1 Height285 mm
Package Level 1 Depth / Length370 mm
Package Level 1 Gross Weight11 kg
Package Level 1 EAN8015644627324
Additional Information
Product Main TypeSACE Tmax T
Product NameMoulded Case Circuit Breaker
Product TypeAutomatic Circuit Breaker
Suitable ForT6
Suitable for Product ClassMoulded Case Circuit Breakers
VersionF
Technical
Electrical Durability5000 cycle
60 cycles per hour
Mechanical Durability20000 cycle
120 cycles per hour
Number of Poles3P
Power Lossat Rated Operating Conditions per Pole 32 W
Rated Current (In)800 A
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 70 kA
(230 V AC) 70 kA
(380 V AC) 36 kA
(400 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 30 kA
(500 V AC) 25 kA
(690 V AC) 15 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 10 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 70 kA
(230 V AC) 70 kA
(380 V AC) 36 kA
(400 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 30 kA
(500 V AC) 25 kA
(690 V AC) 20 kA
Rated Uninterrupted Current (Iu)800 A
ReleasePR222DS/P-LSI
Release TypeEL
Short-Circuit Performance LevelN
StandardsIEC
Sub-typeT6
Terminal Connection TypeFixed Circuit-Breakers
Front
Test Voltage Max (Utest)3500 V
Certificates and Declarations
Data Sheet, Technical Information1SDC210015D0201
Declaration of Conformity - CE9AKK106713A5538
EU Data Act Compliance Declaration1SDH002560A1001
GL Certificate1SDL000163R0057
Instructions and Manuals1SDH000511R0001
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
UNSPSC39121100
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
