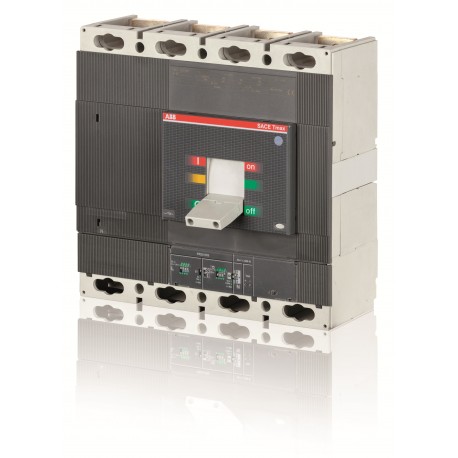

1SDA060273R1 ABB T6N 800 PR221DS-LS/I In 800 4p F F
1SDA060273R1
060273
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
T6
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Moulded case circuit breaker designated as ABB part number 1SDA060273R1 serves as an automatic protective switch that interrupts excessive electrical currents to prevent damage to downstream wiring and machinery. These robust switching units are heavily utilized across commercial and industrial power distribution networks.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: ab1a7160-c708-4631-a5f1-df8d4b7f2881 Italy
- Simplified SCIP: 38de97f1-74ec-4282-903a-952a5811df69 Denmark
- Environmental Information: 9AKK10103A1058
- E-Number (Finland): 3655424
- E-Number (Norway): 4383597
- EAN: 8015644627355
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 280 mm
- Product Net Height: 268 mm
- Product Net Depth / Length: 103.5 mm
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | ab1a7160-c708-4631-a5f1-df8d4b7f2881 Italy |
| Simplified SCIP | 38de97f1-74ec-4282-903a-952a5811df69 Denmark |
| 2b2be55e-ab61-4838-8778-40645916c0f9 Sweden | |
| b49a1754-18d8-424c-9458-29bc6f06de1d Germany | |
| 21087c85-e801-4bec-b11d-c116a31a40cd Estonia | |
| 26681af7-84b9-4b92-88a1-ae5f0fedc716 Netherlands | |
| 90c94b0b-209d-4c06-9687-5e7d5639b2a2 Bulgaria | |
| b2922b2c-6b32-4a40-9eab-66f16b0115b9 Norway | |
| 09f04f0a-3e30-459b-974e-ef624f24516f Sweden | |
| e7f977f6-905f-4918-9a03-733ed559b51d Poland | |
| 474ebfa1-d172-4c82-8e2b-3032846efe0b France | |
| 3268b4d3-89d9-4eb9-8d2a-44bf9d3bfd91 Belgium | |
| d8db0818-5e58-44eb-ae20-40a35f0ac34c Poland | |
| f20eb3be-c1d0-4994-90a8-a7691ef4092e Hungary | |
| b0508e9f-170b-4909-bca1-a01381594c4e Belgium | |
| caeea34c-2d4a-4e8f-90c5-d4255092f417 Germany | |
| cef02353-2bc1-4003-b82b-0aec21e6117b Croatia | |
| 91a1405d-99f2-44b4-ba10-c0c00243ef2b Finland | |
| dc893870-9b95-4a58-bb80-0c9ba396cf37 Czech Republic | |
| 3b130ca4-28c9-4074-b65a-55c965181108 Greece | |
| 7fae68eb-aa20-4ac1-ae91-9f864f643d24 Poland | |
| 3d70471a-f39b-43c2-942a-3e5af4a83364 Germany | |
| 09f6b21b-429e-4a48-8f45-46e1b309243e Germany | |
| 21301861-907f-4f60-bedd-14540c372a4a Portugal | |
| 7c7613d3-eb16-4cc9-9574-fb3c69dfb180 Spain | |
| 0a22684c-30e8-4f59-be7d-42cc94216443 Germany | |
| 68fc2168-acca-4a06-92c0-ccc06800b886 Hungary | |
| d93e3cf2-1fda-4e0c-81ea-606fa234f771 France | |
| Environmental | |
| Environmental Information | 9AKK10103A1058 |
| 9AKK108467A6707 | |
| Ordering | |
| E-Number (Finland) | 3655424 |
| E-Number (Norway) | 4383597 |
| EAN | 8015644627355 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 280 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 13.232 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 305 mm |
| Package Level 1 Height | 285 mm |
| Package Level 1 Depth / Length | 370 mm |
| Package Level 1 Gross Weight | 14 kg |
| Package Level 1 EAN | 8015644627355 |
| Additional Information | |
| Product Main Type | SACE Tmax T |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Suitable For | T6 |
| Suitable for Product Class | Moulded Case Circuit Breakers |
| Version | F |
| Technical | |
| Electrical Durability | 5000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles | 4P |
| Power Loss | at Rated Operating Conditions per Pole 32 W |
| Rated Current (In) | 800 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 70 kA |
| (230 V AC) 70 kA | |
| (380 V AC) 36 kA | |
| (400 V AC) 36 kA | |
| (415 V AC) 36 kA | |
| (440 V AC) 30 kA | |
| (500 V AC) 25 kA | |
| (690 V AC) 15 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 10 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 70 kA |
| (230 V AC) 70 kA | |
| (380 V AC) 36 kA | |
| (400 V AC) 36 kA | |
| (415 V AC) 36 kA | |
| (440 V AC) 30 kA | |
| (500 V AC) 25 kA | |
| (690 V AC) 20 kA | |
| Rated Uninterrupted Current (Iu) | 800 A |
| Release | PR221DS-LS/I |
| Release Type | EL |
| Short-Circuit Performance Level | N |
| Standards | IEC |
| Sub-type | T6 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Front | |
| Test Voltage Max (Utest) | 3500 V |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210015D0201 |
| Declaration of Conformity - CE | 9AKK106713A5538 |
| EU Data Act Compliance Declaration | 1SDH002560A1001 |
| GL Certificate | 1SDL000163R0057 |
| Instructions and Manuals | 1SDH000511R0001 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| UNSPSC | 39121100 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
