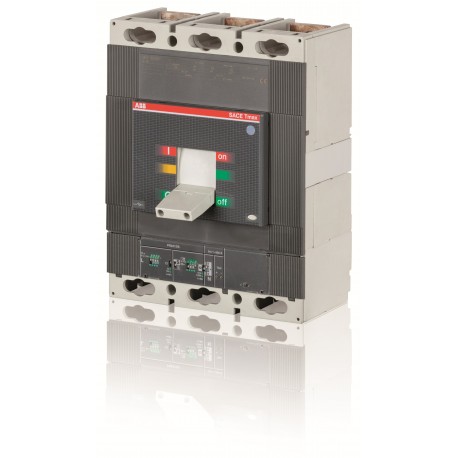

1SDA060269R1 ABB T6N 800 PR221DS-I In 800 3p F F
1SDA060269R1
060269
ABB
1 Pcs.
T6N 800 PR221DS-I In=800 3p F F
T6N800 PR221DS I R800 3P F F
Automation > Power circuit-breaker for trafo/generator/installation protection
T6
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Abb 1SDA060269R1 is a molded case circuit breaker designed to protect industrial electrical systems against overloads and short circuits. These dependable protection devices ensure safe operation and rapid isolation during power faults.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: 3bd28c89-7d58-44e1-aa04-b2e2070ce752 China
- Simplified SCIP: 9e26244e-6149-4b49-8f65-90c257d898d9 Greece
- Environmental Information: 9AKK10103A1058
- EAN: 8015644627317
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 210 mm
- Product Net Height: 268 mm
- Product Net Depth / Length: 103.5 mm
- Product Net Weight: 9.5 kg
- Package Level 1 Units: 1 piece
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 3bd28c89-7d58-44e1-aa04-b2e2070ce752 China |
| Simplified SCIP | 9e26244e-6149-4b49-8f65-90c257d898d9 Greece |
| 9b17676e-d209-4bc2-8fc9-409db1662937 Netherlands | |
| efa5d8c9-d109-4cf2-af44-03c3a574353f Belgium | |
| 6632b8dd-dc51-4804-9c76-08fd6268760e Germany | |
| 8a01273c-9a11-49dc-b2c3-02420866f8c8 France | |
| 9ee59464-3f8d-4f5b-a118-ee95df1fc382 Poland | |
| 5b9bfde0-9b03-44f2-ad2b-e9368f5e82d7 Bulgaria | |
| 63cf93fd-0220-4d04-9ba9-6ba84076db42 Sweden | |
| b36c6ae5-3fb8-4369-bdd1-ebd4d718e10c Germany | |
| aab27f24-f905-48b3-802c-b5dd6c2e56cd France | |
| 313d9146-f24f-43ad-8ee0-eac12e07b093 Poland | |
| 9a3b1f9e-0739-4e8c-a6ee-3ea5664f2d02 Sweden | |
| ab644cb8-44bb-4fe8-b114-a983fcb7f2d6 Spain | |
| a854d679-657b-4d29-8575-8ad6a642736b Czech Republic | |
| f7f91afb-8feb-4e3a-8d1e-830b386cb492 Portugal | |
| 2f00f22e-a141-4bce-b0c6-34a65da73cd6 Denmark | |
| 7912123f-95ab-4240-8320-78eb910e1a0b Germany | |
| f3b15f20-bb38-4511-9fa3-bea4b8f3ea14 Germany | |
| af31b29c-2a1d-410f-aff5-84d835cd2fdb Hungary | |
| e47f1857-9e6a-4f5c-ab7f-fea3b5c4e982 Germany | |
| 8b62f8d2-8bf7-4a97-b28a-927468940a4b Finland | |
| fc6577d4-cbf2-4ced-b8af-ea0fa5c0c109 Norway | |
| 5e549fde-a9ce-4f26-a4b7-115645867874 Poland | |
| Environmental | |
| Environmental Information | 9AKK10103A1058 |
| 9AKK108467A6707 | |
| Ordering | |
| EAN | 8015644627317 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 210 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 9.5 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 305 mm |
| Package Level 1 Height | 285 mm |
| Package Level 1 Depth / Length | 370 mm |
| Package Level 1 Gross Weight | 11 kg |
| Package Level 1 EAN | 8015644627317 |
| Additional Information | |
| Product Main Type | SACE Tmax T |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Suitable For | T6 |
| Suitable for Product Class | Moulded Case Circuit Breakers |
| Version | F |
| Technical | |
| Electrical Durability | 5000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | at Rated Operating Conditions per Pole 32 W |
| Rated Current (In) | 800 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 70 kA |
| (230 V AC) 70 kA | |
| (380 V AC) 36 kA | |
| (400 V AC) 36 kA | |
| (415 V AC) 36 kA | |
| (440 V AC) 30 kA | |
| (500 V AC) 25 kA | |
| (690 V AC) 15 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 10 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 70 kA |
| (230 V AC) 70 kA | |
| (380 V AC) 36 kA | |
| (400 V AC) 36 kA | |
| (415 V AC) 36 kA | |
| (440 V AC) 30 kA | |
| (500 V AC) 25 kA | |
| (690 V AC) 20 kA | |
| Rated Uninterrupted Current (Iu) | 800 A |
| Release | PR221DS-I |
| Release Type | EL |
| Short-Circuit Performance Level | N |
| Standards | IEC |
| Sub-type | T6 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Front | |
| Test Voltage Max (Utest) | 3500 V |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210015D0201 |
| Declaration of Conformity - CE | 9AKK106713A5538 |
| EU Data Act Compliance Declaration | 1SDH002560A1001 |
| GL Certificate | 1SDL000163R0057 |
| Instructions and Manuals | 1SDH000511R0001 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| UNSPSC | 39121100 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
