> ABB > Molded case "Isomax-Tmax" > T6 > 060231

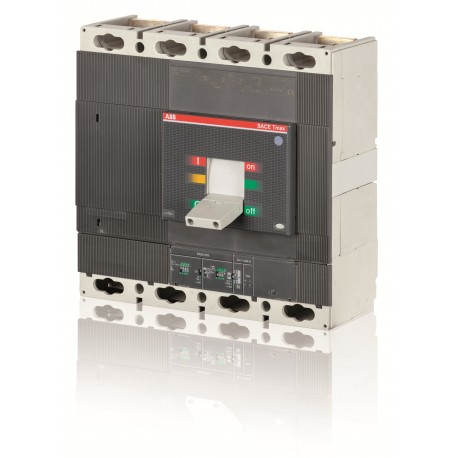

ABB 1SDA060231R1 1SDA060231R1 ABB T6N 630 PR221DS-LS/I In 630 4p F F View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA060231R1 ABB T6N 630 PR221DS-LS/I In 630 4p F F

1SDA060231R1

060231

ABB

1 Pcs.

T6N 630 PR221DS-LS/I In=630 4p F F T6N630 PR221DS LS/I R630 4P F F

Automation > Power circuit-breaker for trafo/generator/installation protection
T6

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIP29436e37-fae7-430e-8494-11ca59e7f194 Italy
Simplified SCIP2d390a47-bb60-481b-96f4-bbba492a9cce Denmark
bf7e3822-5fc8-4ffa-bb13-f3ee0e05898a Sweden
50d1274c-a260-4aea-990a-a0eb90449aac Germany
af1cde70-9f8a-4b9b-9df9-31536d5b1c46 Estonia
e507eb96-3c89-409f-a80b-8f714279db26 Netherlands
f250b10f-e83d-40db-bd26-2f8016255103 Bulgaria
17f7d8d8-7603-47ab-a958-bd4ac4b574ff Norway
f5b43008-ad3d-40d2-bf56-2f32d5aa1472 Sweden
84520c44-1fc0-455d-bcea-562ccac274b9 Poland
1f3ea1c9-6ce8-435b-9e42-531ccf4e64f5 France
d2f4dd5c-1bd1-454d-a739-e4bdaa90c8b3 Belgium
51407f9e-42c2-4259-9e5f-f118bef68d50 Poland
6cac24d2-aa64-4e45-9970-b2114de00539 Hungary
efca5acd-f6ac-415b-bf7e-1d26a016a3a4 Belgium
f454c00b-f3bd-45cc-806b-1183eaaace51 Germany
77e7f937-a51e-4220-9c21-320724f5aa87 Croatia
9817e066-446c-4f85-931e-ff04219ac471 Finland
9ace6f3d-0957-4622-bd66-a70f8c17367f Czech Republic
83765424-cd8f-450c-813f-0038ce36b3a1 Greece
2ed1f71d-cd9d-4800-ac36-985b00ad416b Poland
6480de2f-2f46-44d2-a0c7-6e21efe23f40 Germany
11277b3b-c111-45cd-8bc4-714fd98c379c Germany
6364f84b-4a11-4e9d-bc77-33a41ddcff14 Portugal
8caff6cb-484e-49f1-af75-1cbb67cefc34 Spain
c4402b6d-32e2-4f9b-bd72-c523dc2a4ac8 Germany
df8c3639-f206-41b4-aaf6-9ea747d0406b Hungary
dd5ba066-8bd0-4e24-aad0-59072113400e France
Environmental
Environmental Information9AKK10103A1058
9AKK108467A6707
Ordering
E-Number (Finland)3655423
E-Number (Norway)4383596
EAN8015644626938
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width280 mm
Product Net Height268 mm
Product Net Depth / Length103.5 mm
Product Net Weight12.415 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width305 mm
Package Level 1 Height285 mm
Package Level 1 Depth / Length370 mm
Package Level 1 Gross Weight14 kg
Package Level 1 EAN8015644626938
Additional Information
Product Main TypeSACE Tmax T
Product NameMoulded Case Circuit Breaker
Product TypeAutomatic Circuit Breaker
Suitable ForT6
Suitable for Product ClassMoulded Case Circuit Breakers
VersionF
Technical
Electrical Durability7000 cycle
60 cycles per hour
Mechanical Durability20000 cycle
120 cycles per hour
Number of Poles4P
Power Lossat Rated Operating Conditions per Pole 20 W
Rated Current (In)630 A
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 70 kA
(230 V AC) 70 kA
(380 V AC) 36 kA
(400 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 30 kA
(500 V AC) 25 kA
(690 V AC) 15 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 7.6 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 70 kA
(230 V AC) 70 kA
(380 V AC) 36 kA
(400 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 30 kA
(500 V AC) 25 kA
(690 V AC) 20 kA
Rated Uninterrupted Current (Iu)630 A
ReleasePR221DS-LS/I
Release TypeEL
Short-Circuit Performance LevelN
StandardsIEC
Sub-typeT6
Terminal Connection TypeFixed Circuit-Breakers
Front
Test Voltage Max (Utest)3500 V
Certificates and Declarations
Data Sheet, Technical Information1SDC210015D0201
Declaration of Conformity - CE9AKK106713A5538
EU Data Act Compliance Declaration1SDH002560A1001
GL Certificate1SDL000163R0057
Instructions and Manuals1SDH000511R0001
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
UNSPSC39121100
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
