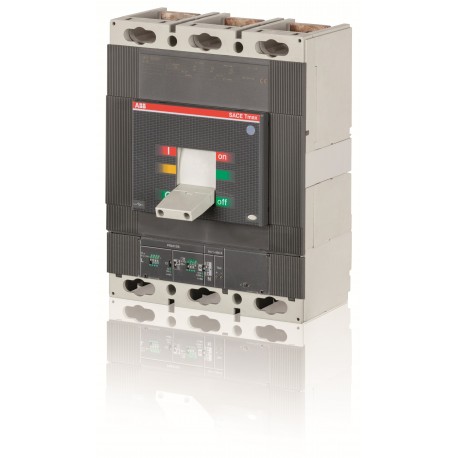

1SDA060323R1 ABB T6L800 PR221DS-LS/I In 800 3p FF 1000VAC
1SDA060323R1
060323
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
T6
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Abb 1SDA060323R1 is a moulded case circuit breaker designed to interrupt high-voltage electrical faults in heavy industrial environments. Industrial circuit breakers are essential for maintaining safety and preventing equipment damage across main power lines. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: e9f1a47c-c68d-42fb-bada-e3d352911117 Italy
- Simplified SCIP: a9b70feb-cb5a-4985-8033-9c1fa3af0067 Denmark
- Environmental Information: 9AKK10103A1058
- EAN: 8015644627911
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 210 mm
- Product Net Height: 268 mm
- Product Net Depth / Length: 103.5 mm
- Product Net Weight: 9.5 kg
- Package Level 1 Units: 1 piece
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | e9f1a47c-c68d-42fb-bada-e3d352911117 Italy |
| Simplified SCIP | a9b70feb-cb5a-4985-8033-9c1fa3af0067 Denmark |
| 1f60d573-ded7-48b6-bbc3-0d9599f21d9a Sweden | |
| d36c1296-1388-44a9-92e4-29d7d521c99c Germany | |
| a25b7b52-a065-40ee-9916-d9635612cafb Estonia | |
| 481a9fe6-0401-4b1f-b658-4df69ecb2aae Netherlands | |
| 50ba6428-1d05-4199-a02b-d5d81a4ee0c3 Bulgaria | |
| 229ab6a6-0a90-4317-b7a3-b090493a35ca Norway | |
| 619a4bc5-f52d-4062-a7cc-fbaa6ed2bebb Sweden | |
| 1e7778c4-5116-4f3e-a9df-6ebbd74236a6 Poland | |
| 3b3115fd-9615-4ac6-b0c0-bb56fdd81bf9 France | |
| c39818b9-edf6-484d-97aa-9d8e43dfc65c Belgium | |
| df19f986-84d8-4f31-9d84-9c6b24fd2deb Poland | |
| 80ed1e36-64a4-428f-aa6d-6895923f472f Hungary | |
| e7281918-3e55-44eb-8d4e-abdcac7f1c35 Belgium | |
| b1f93826-778b-4b53-a5e3-30104ce951f7 Germany | |
| b9c18d57-b1b4-4924-9388-c6b636852a55 Croatia | |
| 7f35e6cb-053e-43b2-92d3-59473216ef76 Finland | |
| 4a646dba-54d5-4d90-8aa3-a1593371162b Czech Republic | |
| 20b33fd7-8b6e-4366-a5b2-f654de7d7ad8 Greece | |
| 48f8facd-26b7-47c4-a034-33c56c755947 Poland | |
| dc4a50d1-643b-4db2-b950-620c804a2ebf Germany | |
| d872b8b3-63c1-4a1f-8b87-5fdd0f373c2a Germany | |
| 07e9493e-8fdd-4477-9ae0-e38e01047b5b Portugal | |
| 74d7b741-9c93-4f84-92e2-4b0456c71160 Spain | |
| 1663bfa8-50bc-429e-a0b3-09951d8273d9 Germany | |
| 571b61ce-f14a-43bb-8c60-865f2a6320e7 Hungary | |
| 880498c5-dd4d-49e5-82fe-e6b4ca3d79f1 France | |
| Environmental | |
| Environmental Information | 9AKK10103A1058 |
| 9AKK108467A6707 | |
| Ordering | |
| EAN | 8015644627911 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 210 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 9.5 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 305 mm |
| Package Level 1 Height | 285 mm |
| Package Level 1 Depth / Length | 370 mm |
| Package Level 1 Gross Weight | 11 kg |
| Package Level 1 EAN | 8015644627911 |
| Additional Information | |
| Product Main Type | SACE Tmax T |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Suitable For | T6 |
| Suitable for Product Class | Moulded Case Circuit Breakers |
| Version | F |
| Technical | |
| Electrical Durability | 5000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | at Rated Operating Conditions per Pole 32 W |
| Rated Current (In) | 800 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 1000 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (1000 V AC) 6 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (1000 V AC) 12 kA |
| Rated Uninterrupted Current (Iu) | 800 A |
| Release | PR221DS-LS/I |
| Release Type | EL |
| Short-Circuit Performance Level | L |
| Standards | IEC |
| Sub-type | T6 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Front | |
| Test Voltage Max (Utest) | 3500 V |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210300D0201 |
| Declaration of Conformity - CE | 9AKK106713A5538 |
| EU Data Act Compliance Declaration | 1SDH002560A1001 |
| Instructions and Manuals | 1SDH000511R0002 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| UNSPSC | 39121100 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
